IMPORTANT: Before anchor bolt installation read the Floor Anchoring Requirements topic
(see "Floor Anchoring Requirements" on page27). Only use the Precor approved anchor bolt
types (see "Approved anchor bolt types" on page27) and adhere to the anchor bolt install-
ation depth and position instructions (see "Anchor bolt installation Summary" on page28).

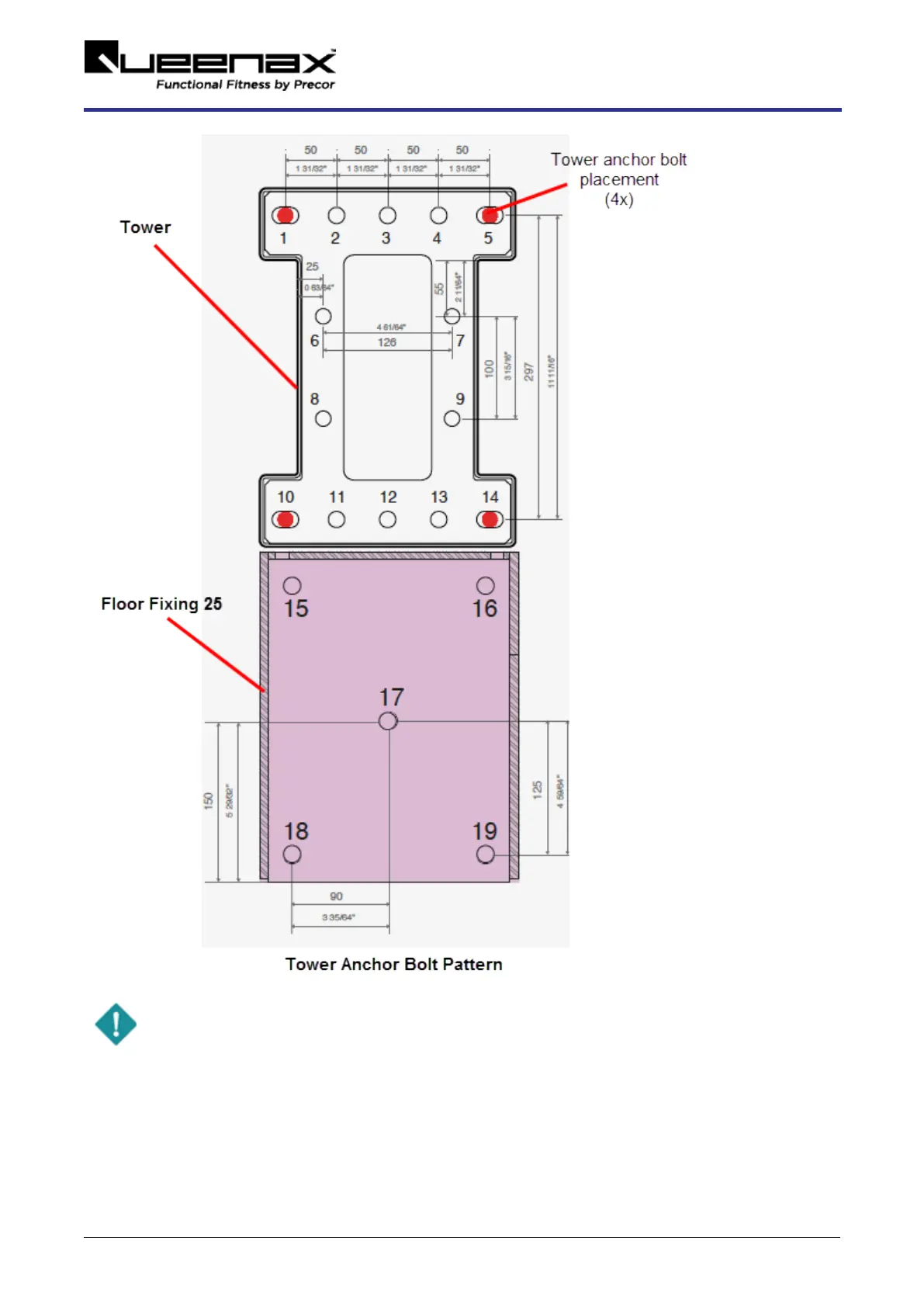

9. Move the towers from the install location. Then use the marked tower anchor bolt locations to
drill and install the anchor bolts for the left and right towers. The size of the anchor hole and
depth will depend on the type of anchor used, refer to "Approved anchor bolt types" on page27
and "Anchor bolt installation Summary" on page28 for more information.
14
4 Assembly and Installation
Procedure
