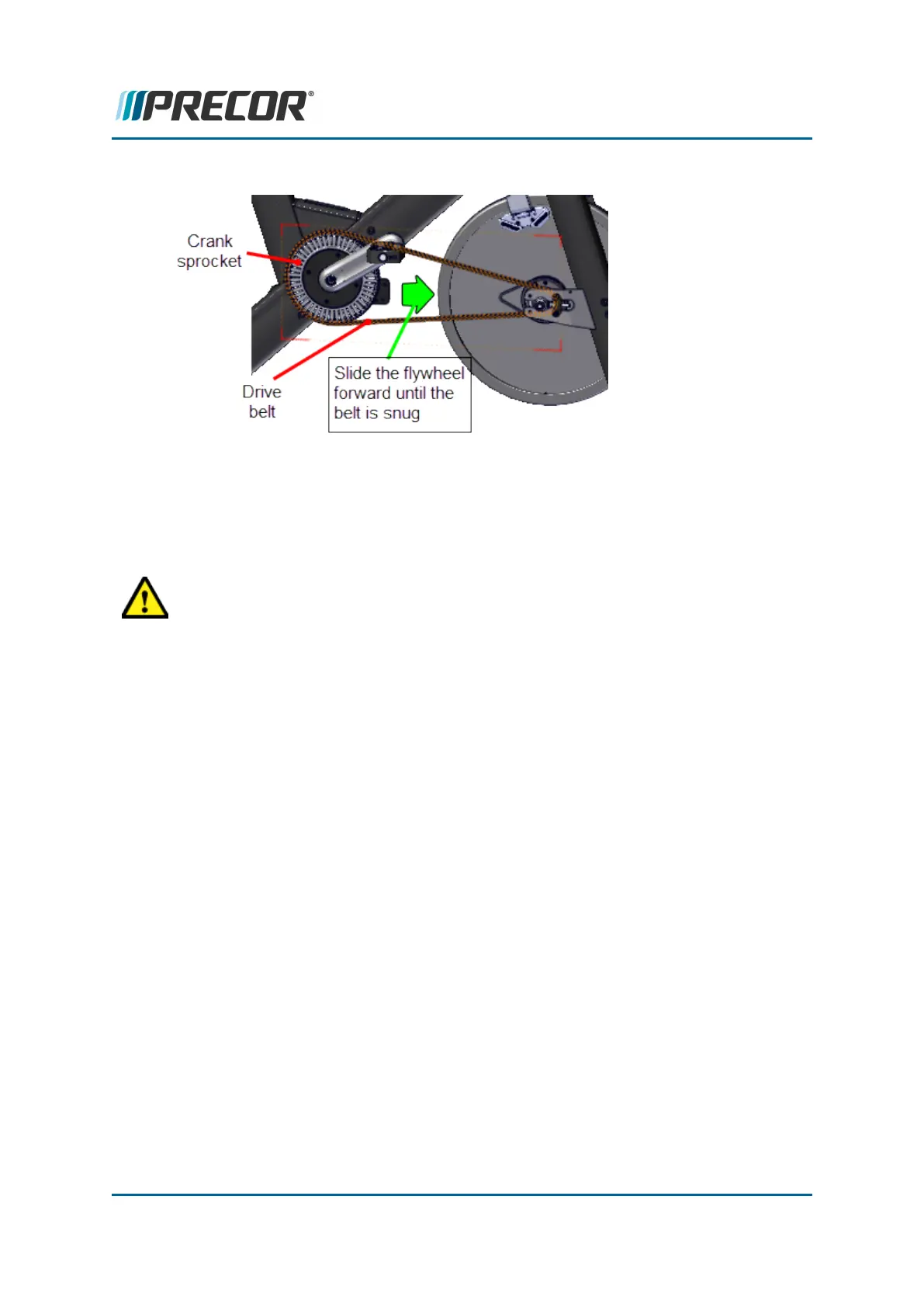

4. Place the drive belt onto the crank sprocket and flywheel pulley.
5. Continue to slide the flywheel forward until the drive belt tension is snug and the belt
teeth seat properly into the crank sprocket and flywheel pulley. Install the left and right
tension adjustment bolts until snug. Adjust the left tension bolt so that the flywheel rim
is centered between the left and right front forks (do not fully tension the belt at this
step).
CAUTION: Thread the belt tension nuts onto the tension adjustment bolts to pre-
vent the flywheel from accidentally falling off the flywheel axle bracket.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 92
5 Replacement Procedures
Drive Belt, Generator Belt, and Flywheel Replacement
