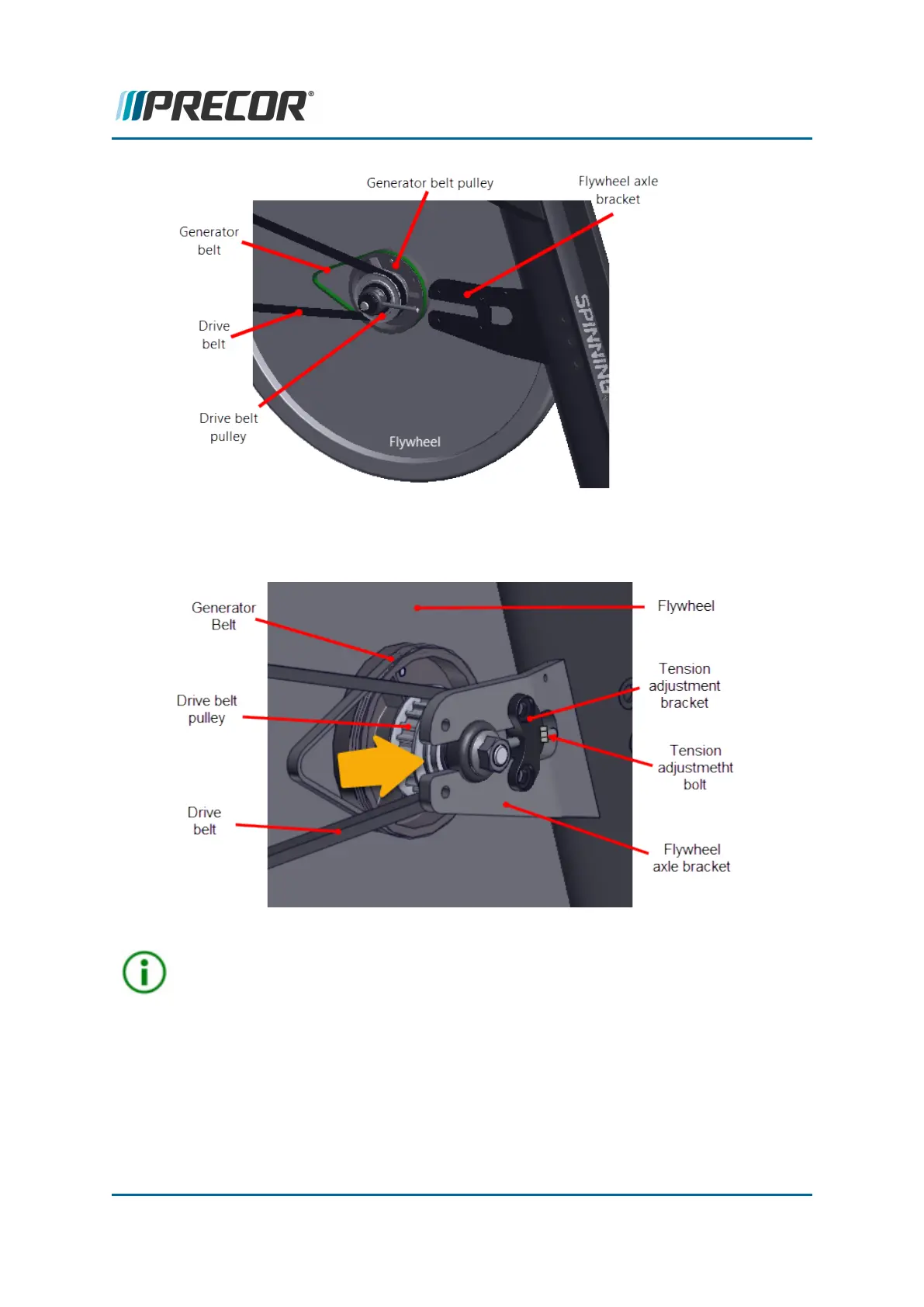

3. Reinstall the flywheel by carefully sliding the flywheel axle into the frame axle brack-
ets. The belt tension adjustment bolts need to be aligned so that they slide thru the
bolt holes in the tension adjustment bracket.
TIP: You may find it is easier to stand the bike frame on its front (resting on the front
stabilizer and handlebar) and then installing the flywheel into the axle mounting
slots. The weight of the flywheel will help to slide the flywheel into the mounting
slots. Carefully hold the flywheel and return bike to the upright position.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 91
5 Replacement Procedures
Drive Belt, Generator Belt, and Flywheel Replacement
