Precor SPINNER CLIMB User Manual

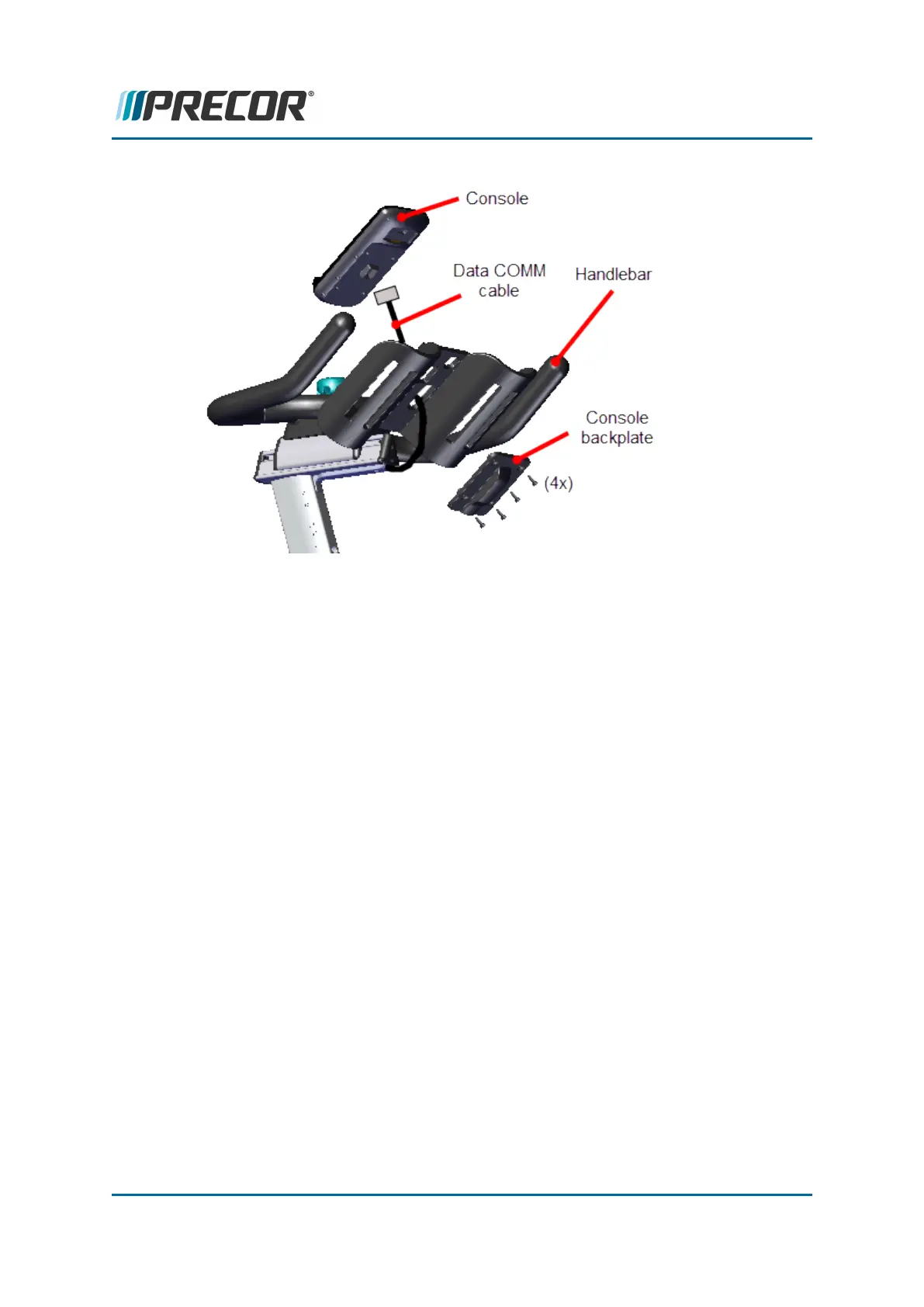

7. Remove the Data COMM cable from the handlebar assembly:
a. Remove the two 2.5 mm hex key bolts (2x) and remove the handlebar post
cable cover.
b. Attach a cable puller to the Data COMM cable console connector.
c. Pull the handlebar height adjust pop pin and carefully lift the handlebar post
from the top of the frame weldment. While holding the handlebar assembly,
gently pull the Data COMM cable (and attached cable puller) downward and
out from the inside of the handlebar post.
d. Disconnect the Data COMM cable from the cable puller leaving the cable puller
inside the handlebar post and set the handlebar assembly aside. The cable
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 76
5 Replacement Procedures
Data COMM Cable Replacement
