c. Disconnect the cable puller from the Data COMM cable.

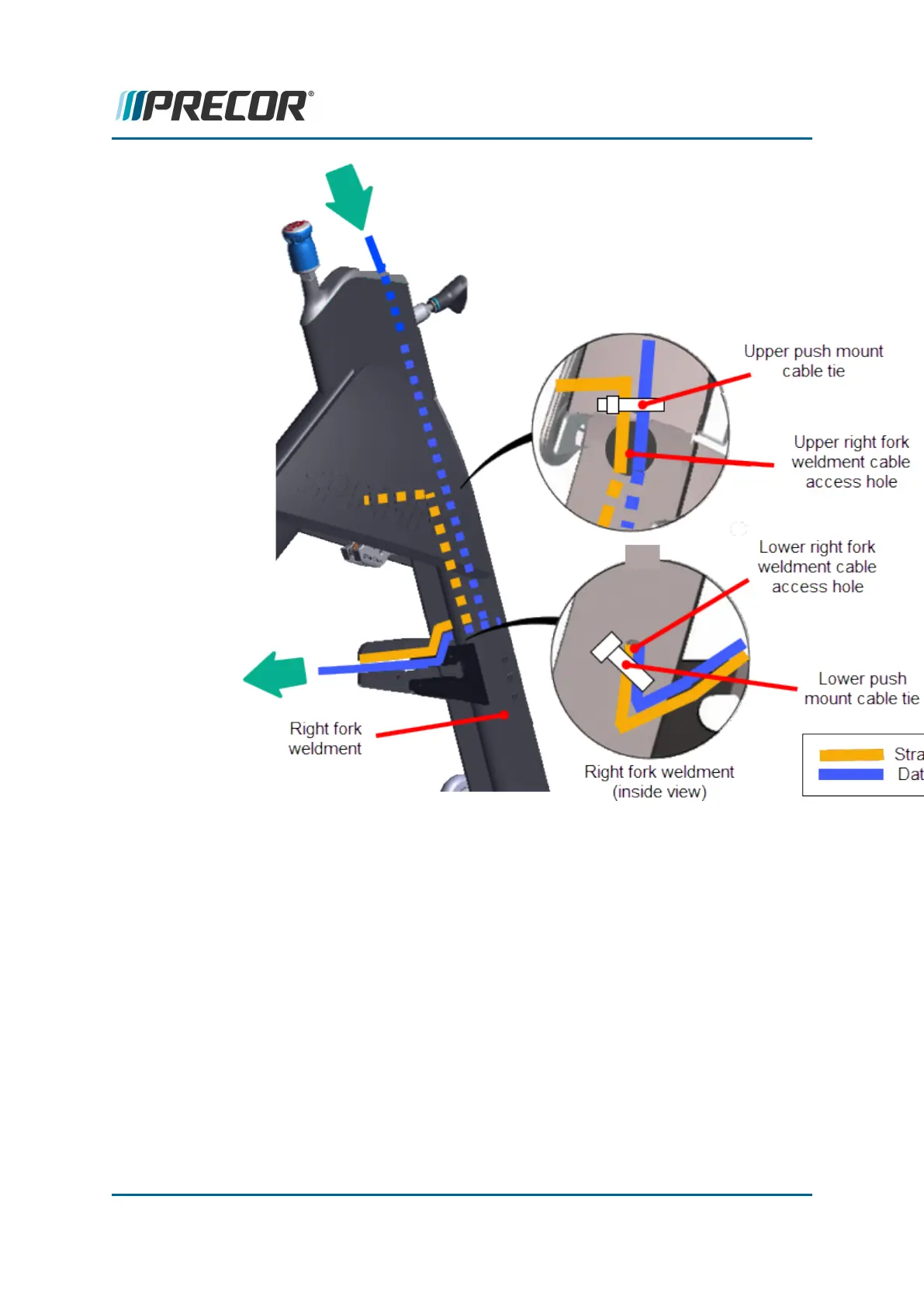

2. Secure the Data COMM and Strain Gauge cables to the right fork weldment lower
and upper push-mount cable ties: Secure the cables to the lower push-pin cable tie
first and then to the upper push-pin cable tie.
a. Install new upper and lower right fork weldment push-mount cable ties (2x); one
next to the upper right fork weldment cable access hole and one next to the
lower right fork weldment cable access hole.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 79
5 Replacement Procedures
Data COMM Cable Replacement
