PRESONUS FireStudio - Sample Hook Up Diagrams

OPERATION
16 | PreSonus 2008
2.2 SAMPLE HOOK UP DIAGRAMS
With the FireStudio, you can simultaneously record and play back up to 26 channels. Since it is loaded with
eight preamplifiers, you can plug in eight microphones to the FireStudio. Using the ADAT optical and S/PDIF
inputs, you can connect external A/D devices like the DigiMax FS. This makes recording extremely easy. All
you need are a few microphones, some cables to connect them, a musician (or two or three or more) and the
creative energy to bring it all together.

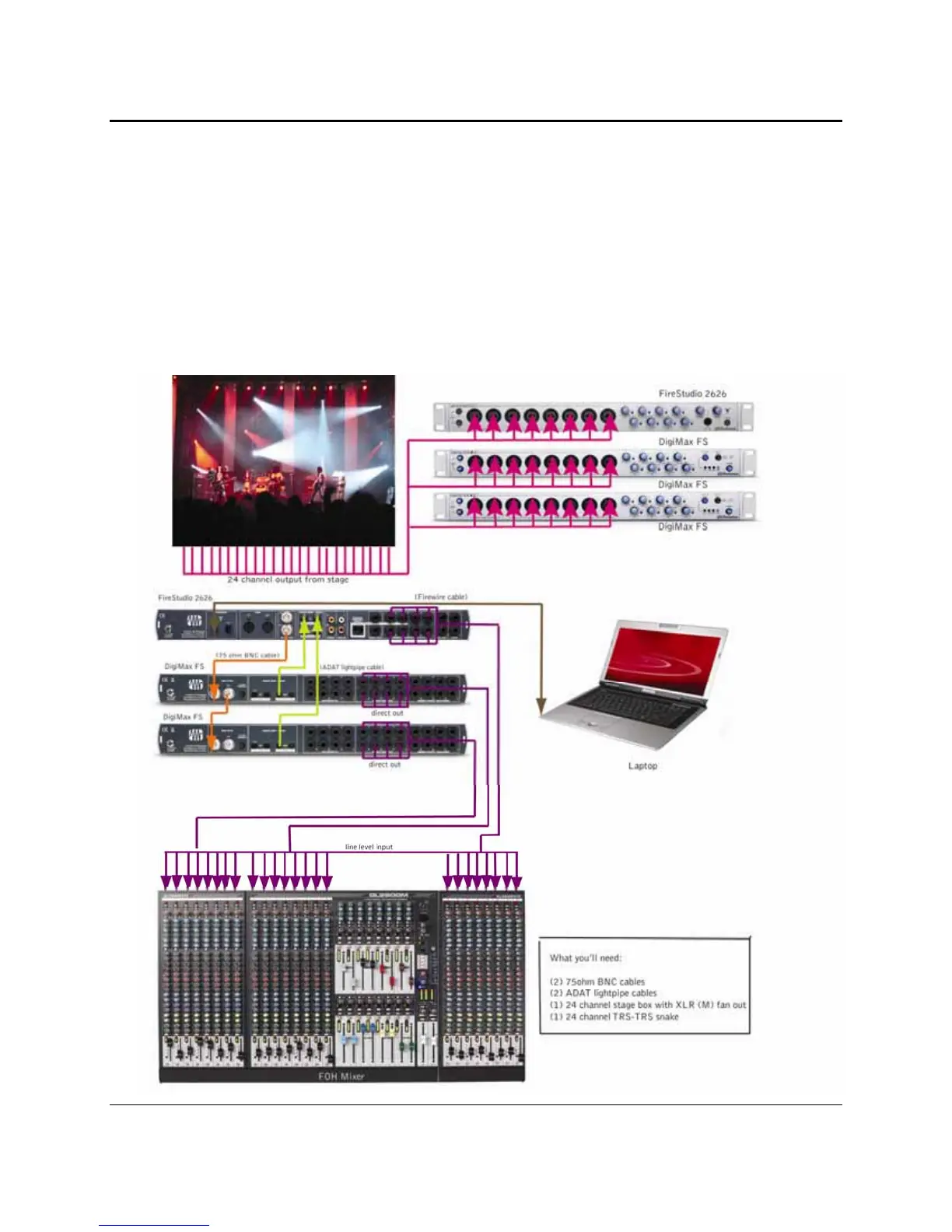

2.2.1 Mobile Recording with the FireStudio and Two DigiMax FS
