Prestige APS25Z - Page 15

APS25Z_RevA_08/18
15

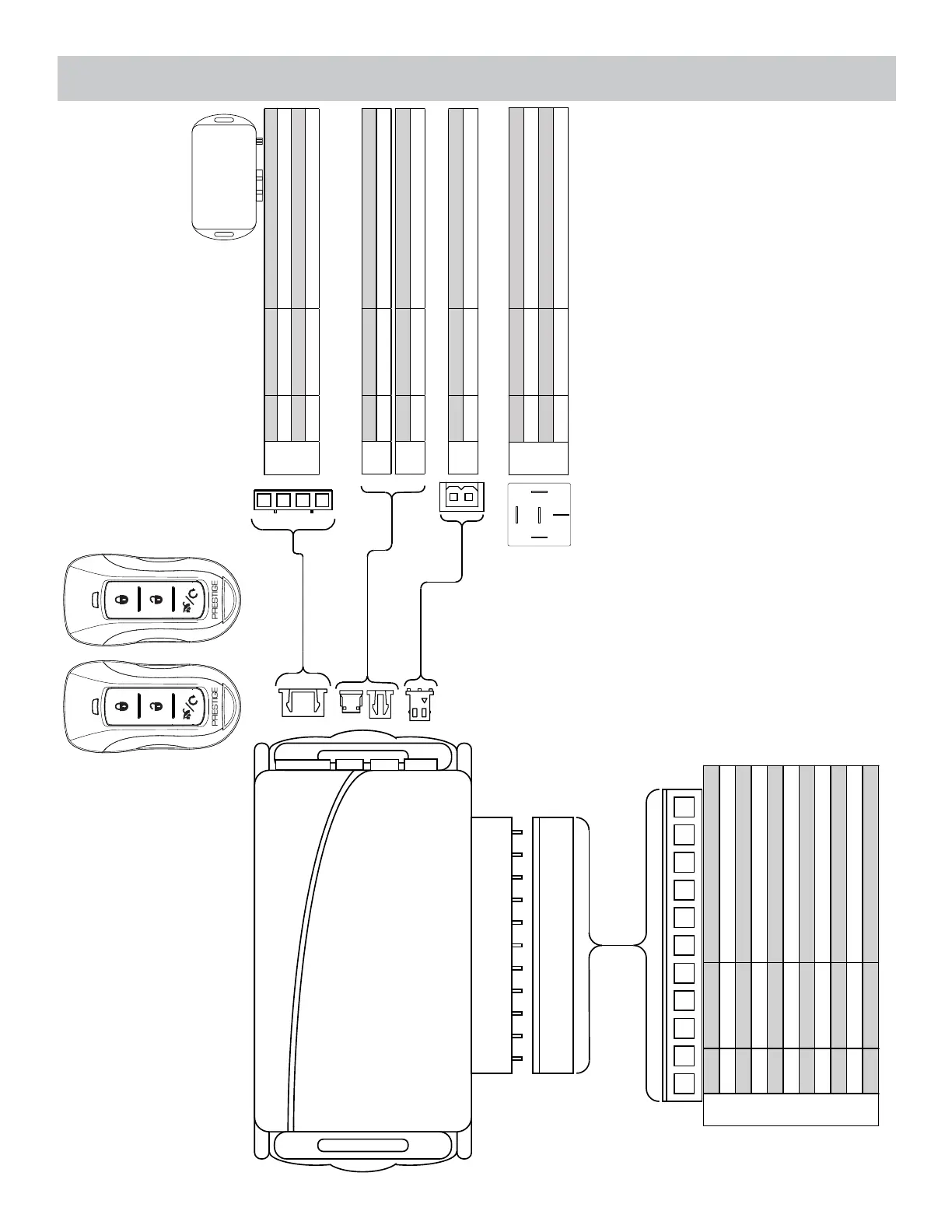

Quick Reference: Wiring Diagrams
VOXX
1 2 3 4 5 6 7 8 9 10 11
1 2 3 4
1 White Parking Light Output (30)
2 White/Red Parking Light Input (87)
3 Dk. Blue Trunk Output (-) 4 White/Black Siren Output (+) 5 Red Battery 12V Input (+) 6 Black Ground Input (-) 7 Yellow Ignition Input (+)
8 Light Green Instant Trigger Input (-) 9 Brown Door Input (-)
10 Purple Door Input (+)
11 Orange Starter Kill Output (-)
11 Pin Main
2 Green Unlock Output (-) 1 Red Lock Output (-)
Door
Lock
2 Red Battery 12V (+) 1 Blue LED Output (-)
LED
2 Gray Valey Switch Input (-) 1 Black Ground Output (-)
Valet
4 Red Battery 12V (+)
3 Black Data TX 2 Green Warn Away Input (-)
1 Blue Full Trigger Input (-)
Shock
Replacement Part #4120468
Replacement Part #4120469
Replacement Part #4120474 Replacement Part #4700033
Replacement Part #4360842
1 2
86
85
87
87A
30
85 Red
Ignition Input (+)
86 Orange
Starter Kill Input (-)
87A
Black Starter Interrupt - Key Side
30
White/Black Starter Interrupt - Motor Side
Starter Kill
Replacement Part #4360828
Shock Sensor
Part #4700033
