PREVOST XL Series User Manual

CONTROLS/INSTRUMENTS
2
-
17
2. Controlling the Passenger Section
The three buttons (RADIO, VIDEO, and AUX) in
the PASSENGER section are used to control
what audio input is being sent to the
passenger’s speakers. The display will indicate
the current selection. If the current selection
button is pressed again, the passenger’s audio
will be muted. The display will indicate this by
alternately displaying the current selection and
MUTE. The audio will be restored if any of the
level controls are activated or the Passenger
Selection buttons are pressed again. See figure
16 for the functions of the buttons in the
passenger section.
RAD
Display
Passenger section

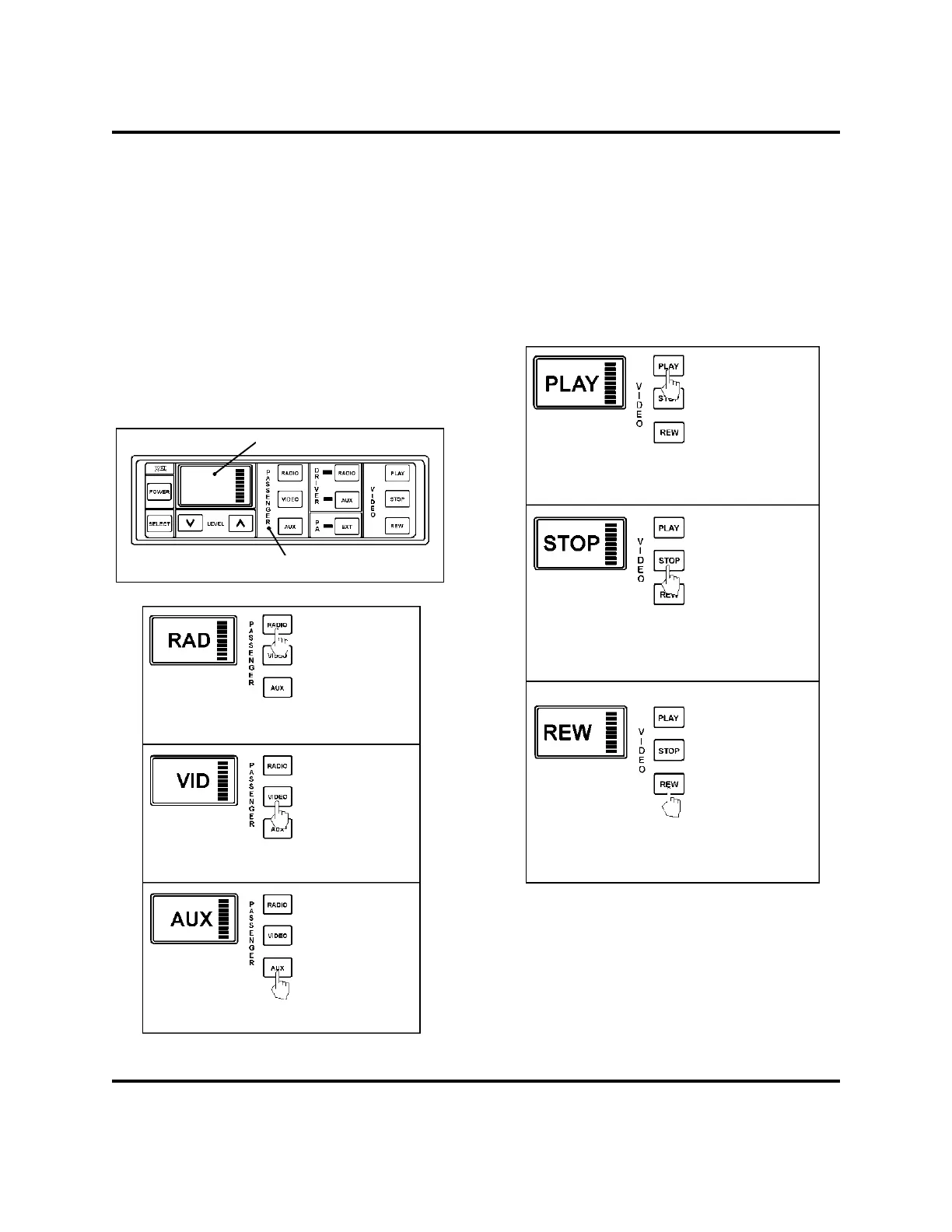

FIGURE 15 23114
Radio audio is
passed to passenger
speakers. Sound
controls will only
affect Radio audio.
Video audio is
passed to
passenger
speakers. Sound
controls will only
affect Video audio.
Auxiliary audio is
passed to
passenger
speakers. Sound
controls will only
affect Auxiliary
audio.
FIGURE 16 23115
3. Controlling the Video Section
Once the VIDEO button is pressed, the video
system goes into a ten second delay. This is to
allow the VCP time to position the tape. This is
indicated by the display flashing VID on and off.
During this time, there will be no passenger
audio. If a video function button is pressed during
this time, the command will be retained and
performed after the delay is complete.
The Unit monitors
the VCP and
displays PLAY
when the VCP is in
the PLAY mode.
The Unit monitors
the VCP and
displays STOP
when the VCP is in
the STOP mode.
Once stopped, the
display switches
back to VID after
10 seconds.
The control Unit
sends a PLAY
command to the
VCP.
The Control Unit
sends a STOP
command to the
VCP.
and displays REW
when the VCP is in
the rewind mode. If
REW is pressed
while the VCP is in
the play mode, the
display flashes
REW to indicate
that the VCP is in
Reverse Scan.
The Control Unit
sends a REWIND
command to the
VCP. The unit
monitors the VCP
FIGURE 17 23116
4. Controlling the Driver Section
The driver may select between the radio or the
auxiliary audio. The current selection is indicated
by the LED next to the button. Pressing the active
button a second time will mute the driver’s audio.
To restore the driver’s audio, press the desired
driver’s selection button. The driver’s sound is

PREVOST XL Series Specifications

General

Length	45 ft
Width	102 in
Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Category	Motorcoach
Manufacturer	Prevost
Seating Capacity	56
GVWR	54, 000 lb
Series	XL
