CONTROLS/INSTRUMENTS
7
2 -

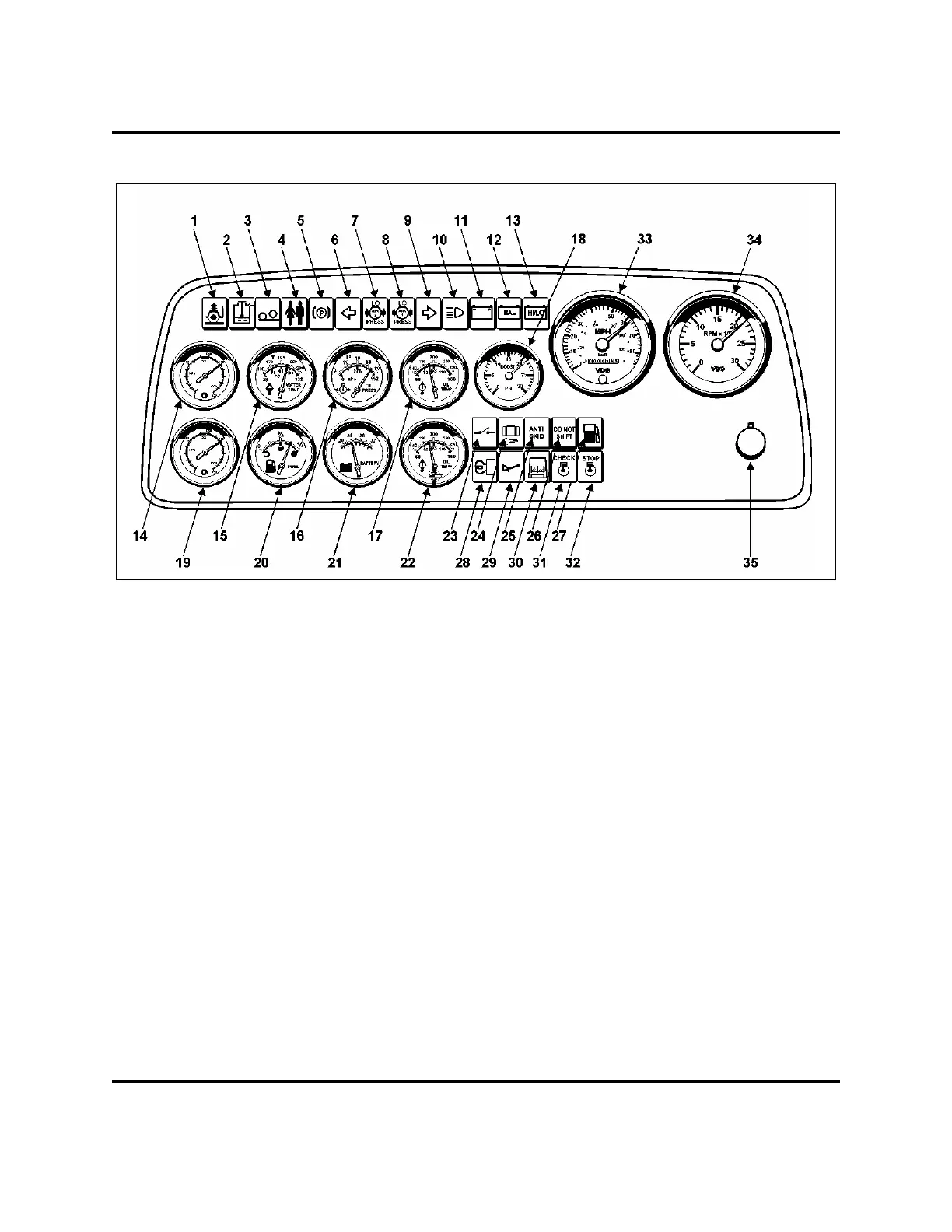

Dashboard (without Tachograph)
FIGURE 7 18113A
01.........................Kneeling/Hi-buoy, or Low Buoy,
or High Buoy (All Optional), or Blank
02................. Water separator (Optional), or Blank
03.................... Tag axle unloading, or Retractable
tag axle (Optional)
04.............................................. Lavatory door lock
05......................................................Parking brake
06.....................................L.H. turn signal - Hazard
07...............................Low secondary air pressure
08....................................Low primary air pressure
09....................................R.H. turn signal - Hazard
10.........................................................High beams
11.................................................................Battery
12...................................................Battery balance
13.................................High or low battery voltage
14...........................Secondary air pressure gauge
15....................Engine coolant temperature gauge
16..................................Engine oil pressure gauge
17.............................Transmission oil temperature
gauge (Optional), or Blank
18......................................... Turbo boost pressure
gauge (Optional), or Blank
19................................ Primary air pressure gauge
20...........................................................Fuel gauge
21............................................................. Voltmeter
22..................................Differential oil temperature
gauge (Optional), or Blank
23...........Electrical systems (XL-45 only), or Blank
24....................... Baggage compartment door lock
(Optional), or Blank
25...................................... Antilock braking system
(Optional), or Blank
26................. Transmission "DO NOT SHIFT" light
27......................Low fuel level (Optional), or Blank
28..............Preheating system (Optional), or Blank
29................... Output retarder (Optional), or Blank
30............................................................Brake light
31...................................................... Check engine
32......................................................... Stop engine
33.....................................Speedometer-Odometer
34......................................................... Tachometer
35.........................................Instrument and switch
brightness control
