CONTROLS/INSTRUMENTS
A/C & heating and Condenser
compartment doors
(doors # 7 & 16)

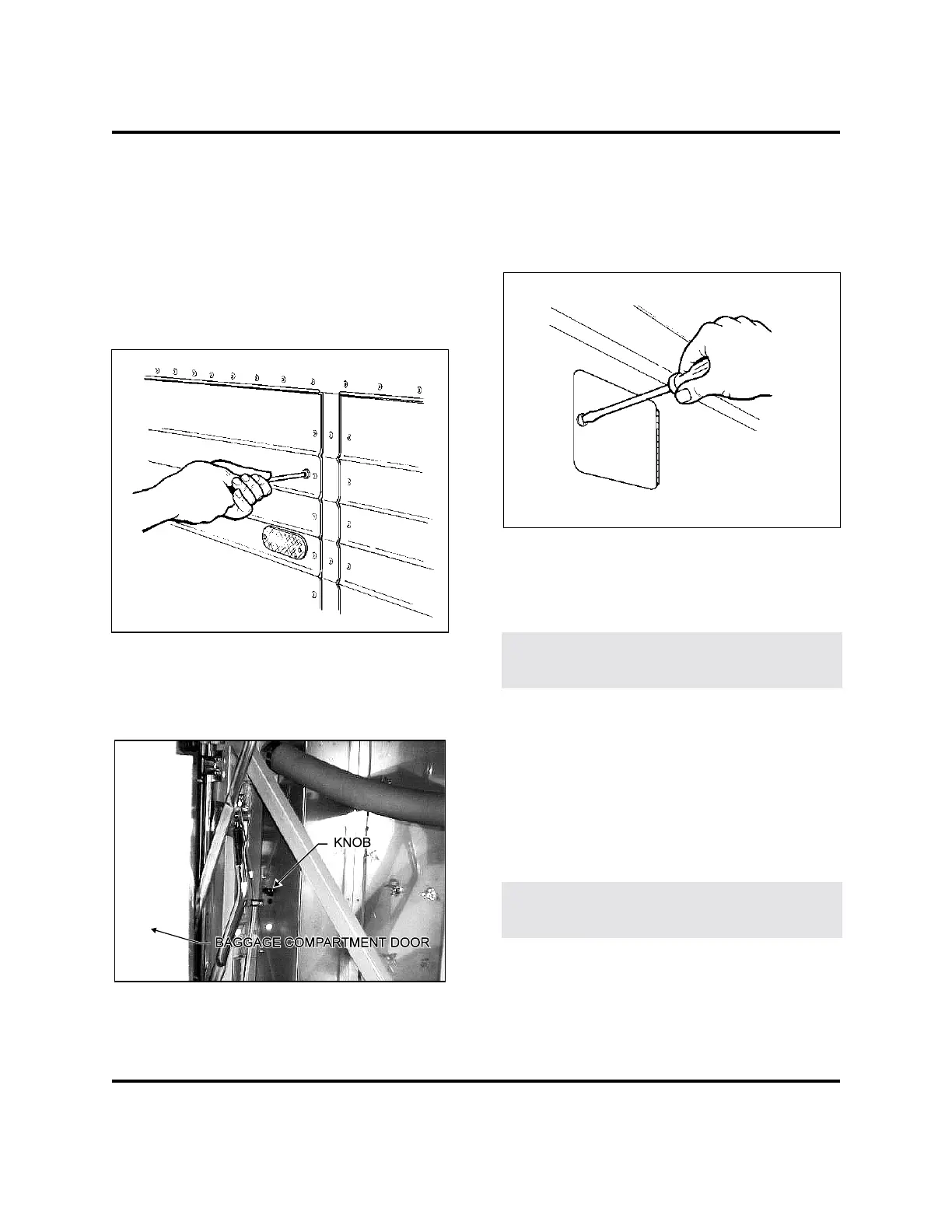

The A/C & heating and Condenser compartment
doors can be opened manually or mechanically,
depending on options. Open the door manually
by first, removing the "Phillips" retaining screws
(qty = 2) and then pulling on side of door where
screws are located.
Open the door mechanically by first opening the
Baggage Compartment located aft of A/C or
Condenser Compartment, then pull on door knob
(see fig. below).
FIGURE 50 18056
Service doors
(doors #2,9,11,13 & 14)
Service doors can be opened by turning the
slotted head "Dzus" fasteners 1/4 turn
counterclockwise and then pulling on the door.
Doors #13 & 14 are each provided with a
microswitch which when actuated, will turn on
compartment light.
CAUTION: Special care must be taken not to
damage the paint around the "Dzus" fasteners
when using a screwdriver or a coin.
L.H. side rear service compartment
and main power compartment
(XL - 45 only)
(doors #18 & 19)
To access these compartments, use key provided
(see "KEYS" on page 2-1). To secure, simply
push in door.
WARNING: These compartments are designed
to give access to compartment components only
and cannot be used for storage.
FIGURE 49 18039
FIGURE 51 18044
