PREVOST XL Series User Manual

CONTROLS/INSTRUMENTS
2
-
35
EXTERIOR COMPARTMENTS (XL-45)

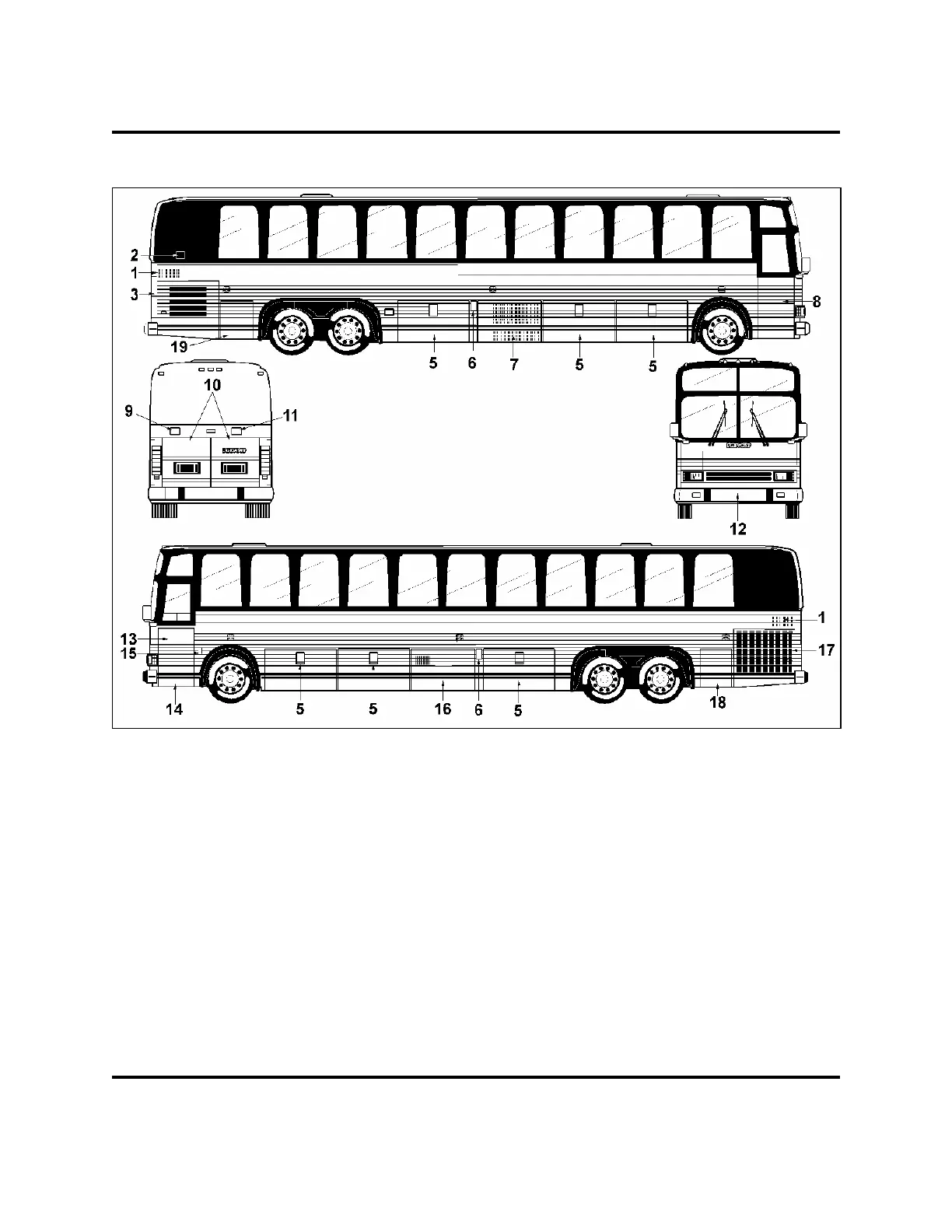

FIGURE 42: XL-45 EXTERIOR COMPARTMENTS 18031B
01.........................................Engine air intake duct
02......................................... Lavatory access door
03........................................ Engine R.H. side door
04...................................................................... N/A
05.......................................Baggage compartment
06............................................Fuel tank filling door
07....................................Condenser compartment
08..................................................... Entrance door
09............................Coolant surge tank filling door
10...............................................Engine rear doors
11........Engine oil reserve tank filling, Block heater
plug & (Water heater plug [Optional])
12........................ Spare wheel & tire compartment
13.............................. Front electrical compartment
14.........................................Steering compartment
15......................110 volt interior lighting (Optional)
16...............................A/C & Heating compartment
17..........................................Engine L.H. side door
18................... L.H. side rear service compartment
19................................... Main power compartment
The above figure identifies all exterior compartments and access doors. See page 2-36 for securing and
accessing procedures.
NOTE: If doors are supplied with locks, refer to page 2-1 to select the appropriate key.

PREVOST XL Series Specifications

General

Length	45 ft
Width	102 in
Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Category	Motorcoach
Manufacturer	Prevost
Seating Capacity	56
GVWR	54, 000 lb
Series	XL
