CONTROLS/INSTRUMENTS
Battery compartment (XL-40 only)
(access through door #5 with *)
Batteries are accessible by means of an access
door which is located on the back wall of the rear
baggage compartment (#5*). To open battery
access door, simply take out handle from it's
cavity, turn 1/4 turn counterclockwise and pull on
the handle.
INTERIOR COMPARTMENTS
Lavatory
The lavatory is located in the rear R.H. corner of
coach and may be equipped with the following
items:

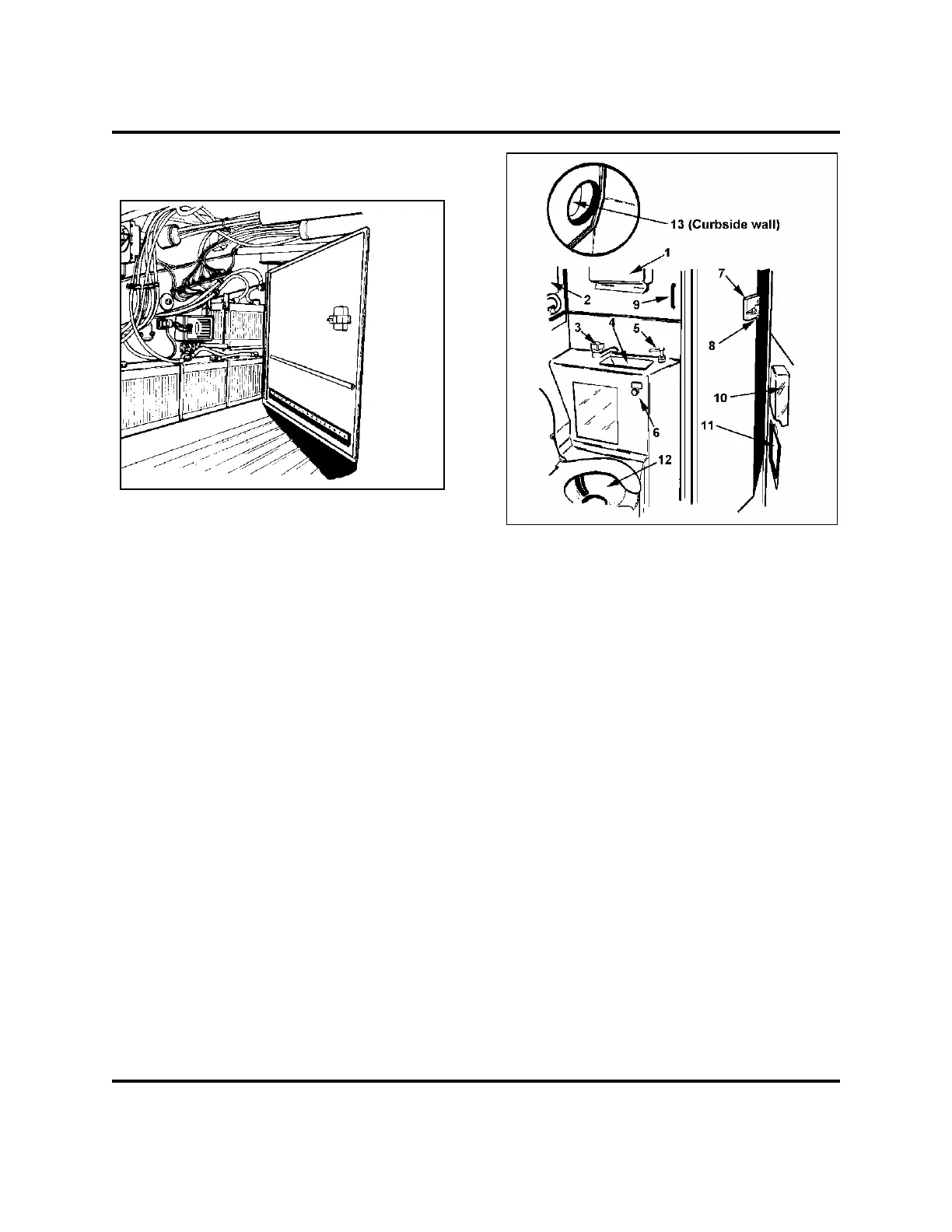

FIGURE 53 23015A
01..................................................Towel dispenser
02................................................................... Mirror
03................................ Water supply valve (faucet)
04...........................................................Washbasin
05.........................................Liquid soap dispenser
06............................................ Flush button (timed)
07.........................................................Door handle
08............................................................. Door lock
09..........................................................Grip handle
10.......................... Hygienic toilet tissue dispenser
11..............................Waste paper container (trap)
12....................................................................Toilet
13....................................... Access door (cleaning)
Locking the lavatory door from the inside will
illuminate a incandescent light in the lavatory, an
exterior "occupied" sign and an indicator light on
Dashboard (see item #4 on pages 2-7 & 2-8).
Compartment night-light is lit when vehicle
headlights are "ON".
If emergency assistance is required, the lavatory
occupant can actuate a buzzer that will sound in
driver's area. The buzzer's push-button (c/w
instruction label) is located on the inner curbside
wall of lavatory.
FIGURE 52 06103
