CONTROLS/INSTRUMENTS
37
2 -

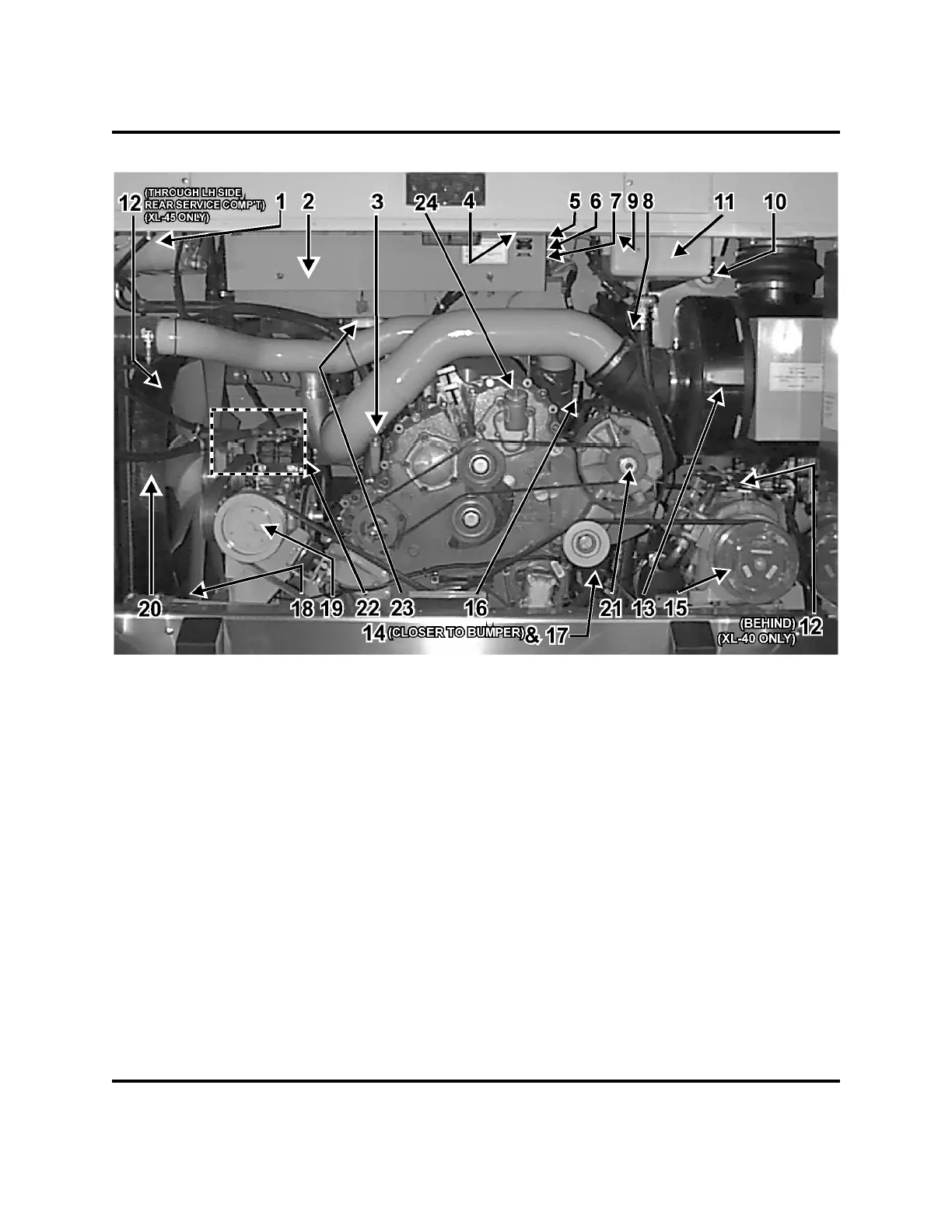

ENGINE COMPARTMENT COMPONENTS
FIGURE 46 01014A
Components identification:
01..............................................Coolant surge tank
02................................................Rear junction box
03...... Transmission oil dipstick (Auto. trans. only)
Engine oil dipstick (Manual trans. only) *
04.............Belt tensioner pressure releasing valve
05....................... Engine compartment light switch
06........................................ Starter selector switch
07.............................Rear start push-button switch
08....................................... Power steering oil tank
09..................................Engine oil pressure gauge
10............................Engine oil temperature gauge
11.......................................Engine oil reserve tank
12............................Preheater (Webasto or Espar)
13............................................... Engine air cleaner
14..................................... Engine primary fuel filter
15...................... A/C compressor (Central system)
16................. Engine oil dipstick (Auto. trans. only)
17.................................Engine secondary fuel filter
18..................................................................Muffler
19.......................................... Radiator fan gearbox
20...............................................................Radiator
21............................................Alternator 24V 270A
22.................... A/C compressor (Auxiliary system)
23........................................................ Fire detector
24.............................................. Engine oil filler cap
(*) - There is no Manual Transmission Dipstick; to check oil level, use the fill plug located on transmission
(see page 6-5).
