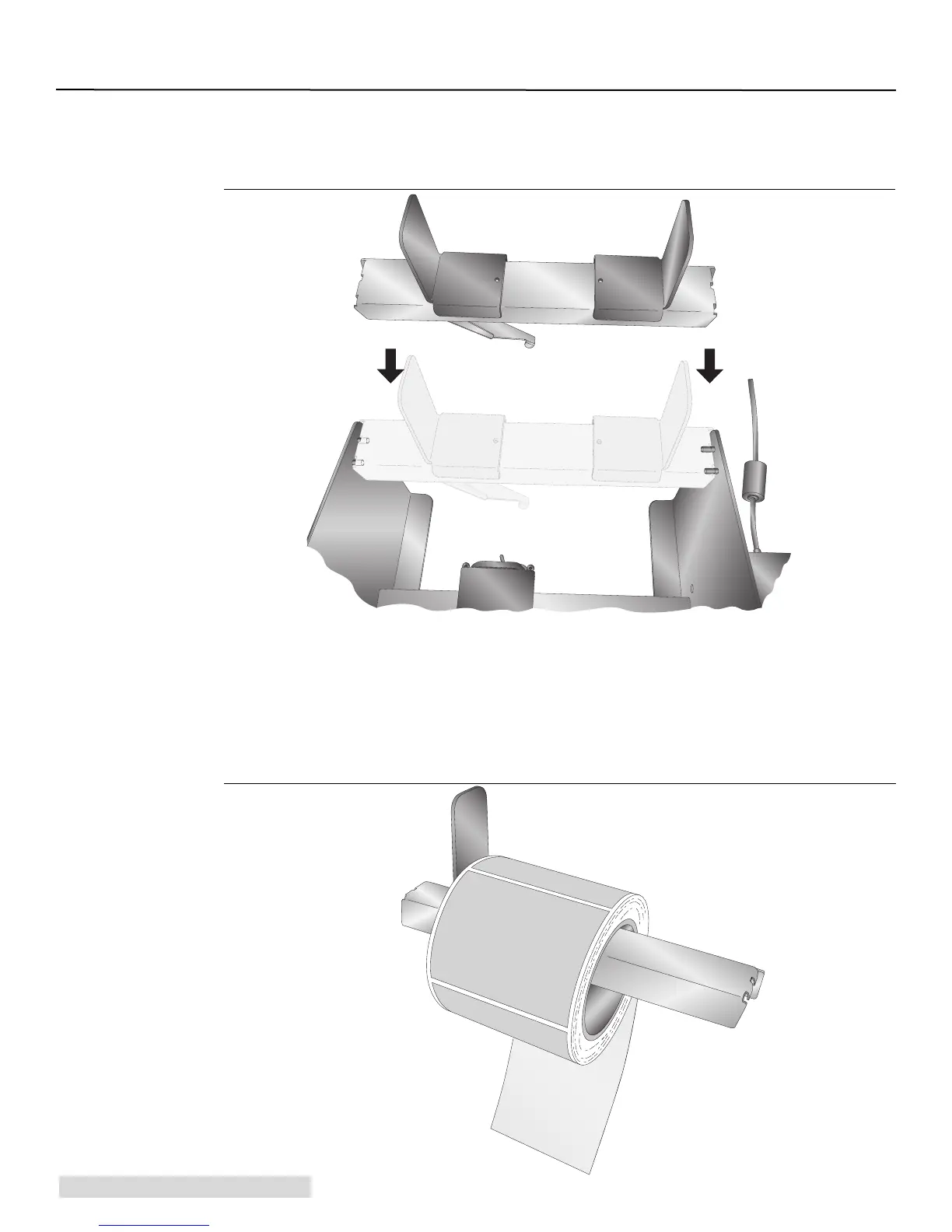

1. Remove the Roll Bar and Roll Guides from the Label Applicator. The Roll Guides and Roll
Drag Arm are removable and adjustable. They are held in place magnetically. (Figure 2-1.)
2. Remove one Roll Guide and the Roll Drag Arm from the Roll Bar.
3. Place the label stock roll on the Roll Bar with one side against the upright of the remaining
Roll Guide. Place it on the Roll Bar with the loose end of the stock feeding underneath the
roll. (Figure 2-2.)
Section 2: Loading the Label Stock
Figure 2-1.
Figure 2-2.
4 AP360/362 Label Applicator
Tip! For smaller diameter label roll
cores you may need to reverse the
Roll Guides so that the bottom of the
guides are facing out to allow the
uprights to be placed next to the roll.
