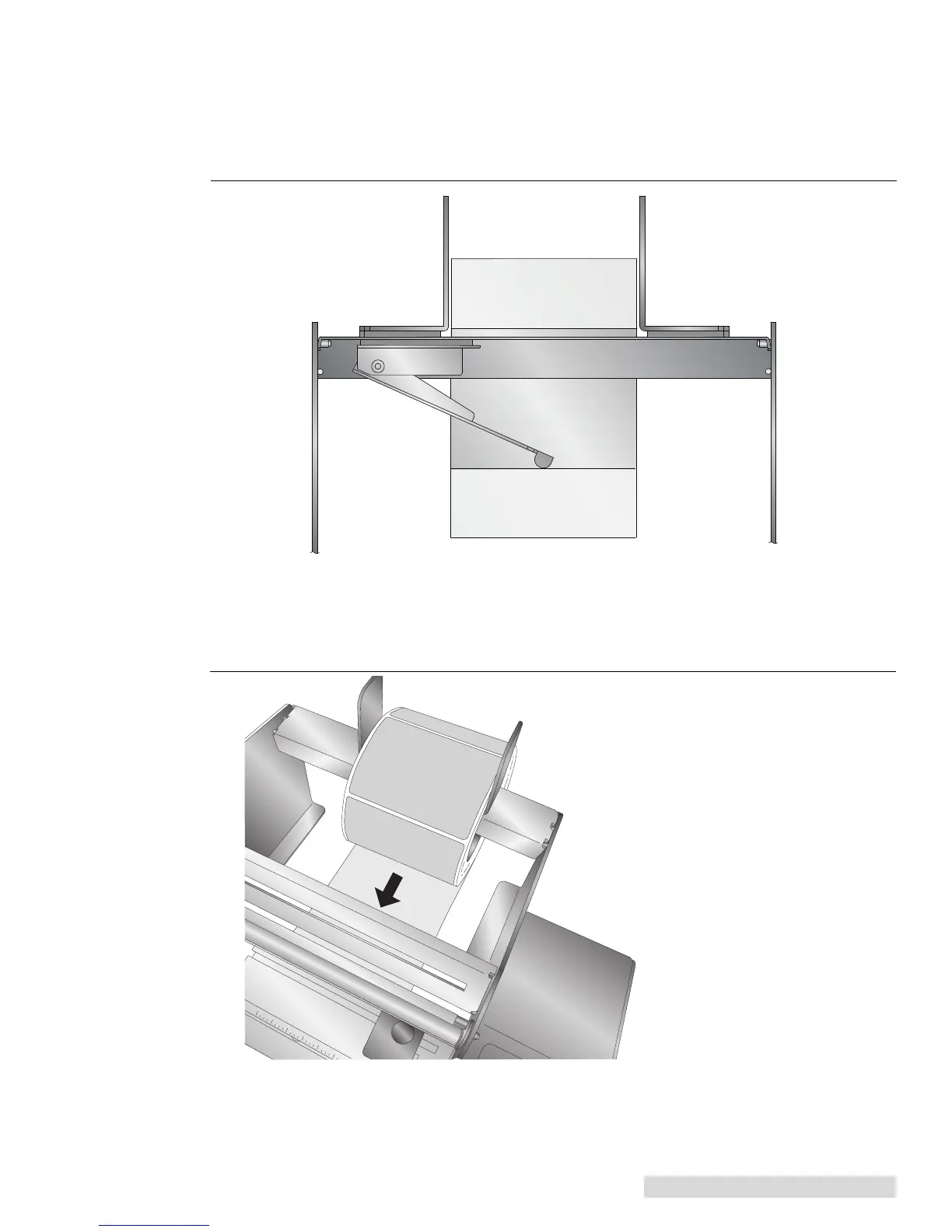

4. Place the Roll Drag Arm under the Roll Bar. The Roll Drag Arm may be placed on either side
of the Roll Bar but the rounded tip of the Roll Drag Arm should be located in the center of the
inside of the core. The arm is spring loaded so that there is downward pressure on the inside
of the roll. This helps prevent application alignment problems near the end of a roll.
(Figure 2-3.)
5. Place the removed Roll Guide back on the Roll Bar and slide it close to, but not touching the
label stock roll. (Figure 2-4.)
AP360/362 Label Applicator 5
Tip! Roll Guide Uprights must
not pinch the label stock roll.
(The label stock roll must have
free-play between guides.)
