6. Now position the stock to correspond with the general area where it will be applied to
the container.

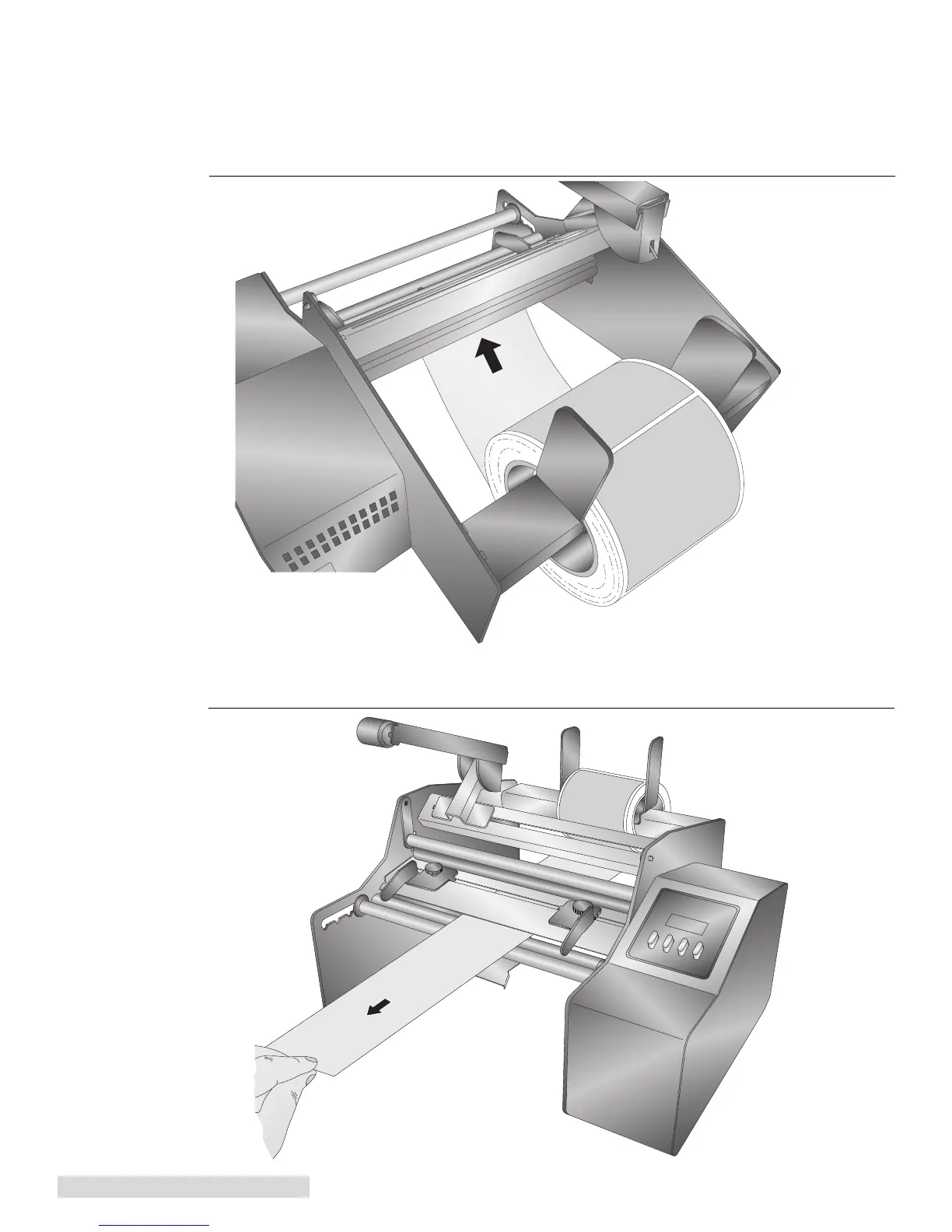

7. Pull the loose end of the label stock forward and then push it into the Feed Area from the back
of the label applicator. The labels will come out just underneath the Peel Edge. (Figure 2-5.)
8. Pull approximately 12 inches of label stock out beyond the Peel Edge. (Figure 2-6.)
6 AP360/362 Label Applicator
Figure 2-6.
Figure 2-5.
Tip! See Section 5 for
a Label Path diagram.
