11. If necessary, adjust the position of the liner on the Peel Edge left/right to align the liner with
the label stock roll. Also, adjust the Label Sensor using the Label Sensor Bracket so that the
Label Sensor Flag is roughly centered on the label stock. (Figure 2-9.)
12. Push the Liner Idler Roller into the clamped position. (Figure 2-10.)
13. The labels are now ready for application.
Note: Position the Label Applicator on the edge of a table so that the liner falls to the floor.
This will prevent excess labels from interfering with label applications.
8 AP360/362 Label Applicator
Clamped Position
Unclamped Position

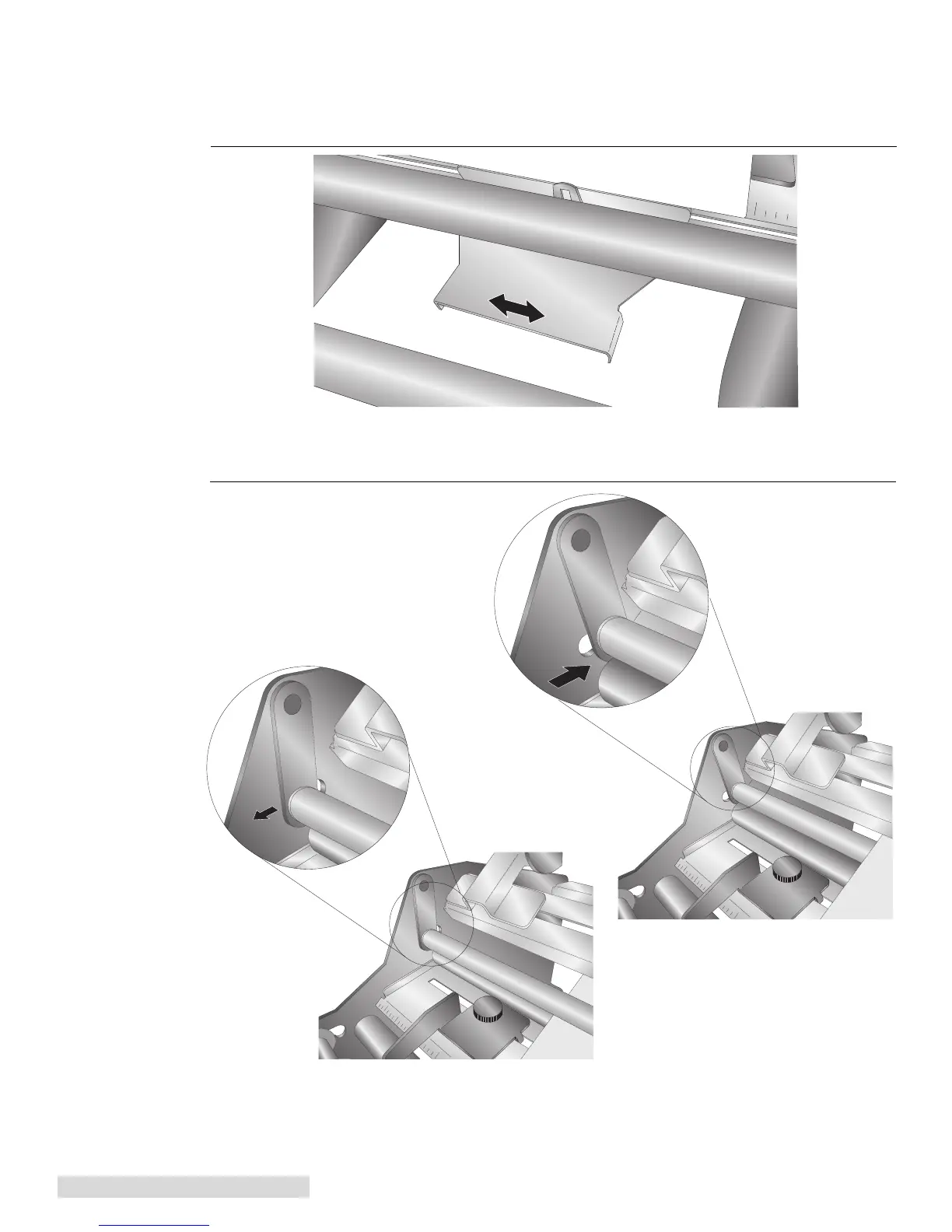

Figure 2-9.
Figure 2-10.
