14

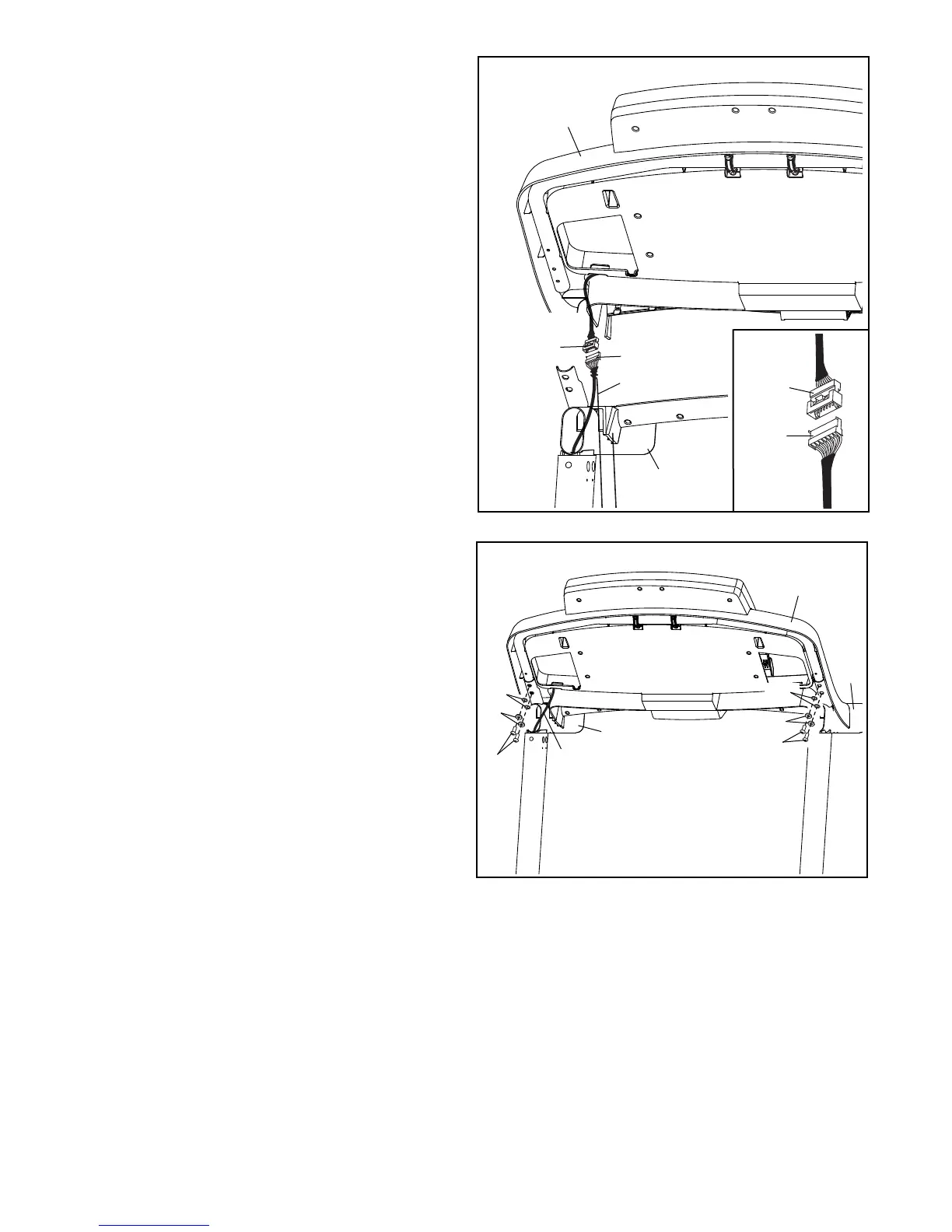

10. With the help of a second person, hold the con-
sole assembly near the Right Handrail (87).
See the inset drawing. Connect the Upright
Wire (81) to the console wire. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Then, remove the wire tie from
the Upright Wire.
Console
Assembly
Wire Tie
87
81
81
Console
Wire
10
Console
Wire
11. Set the console assembly on the Handrails (86,
87). Be careful not to pinch any wires. Insert
the excess Upright Wire (81) into the Right
Handrail.
Attach the console assembly with the four 1/4"
x 1/2" Screws (4) that you removed in step 8,
four 5/16" Flat Washers (31), and four 5/16" Star
Washers (11) as shown. Do not fully tighten
the Screws yet.
11
86
87
11
Console
Assembly
31
4
4
81
11
31
To Next Page
