7
4

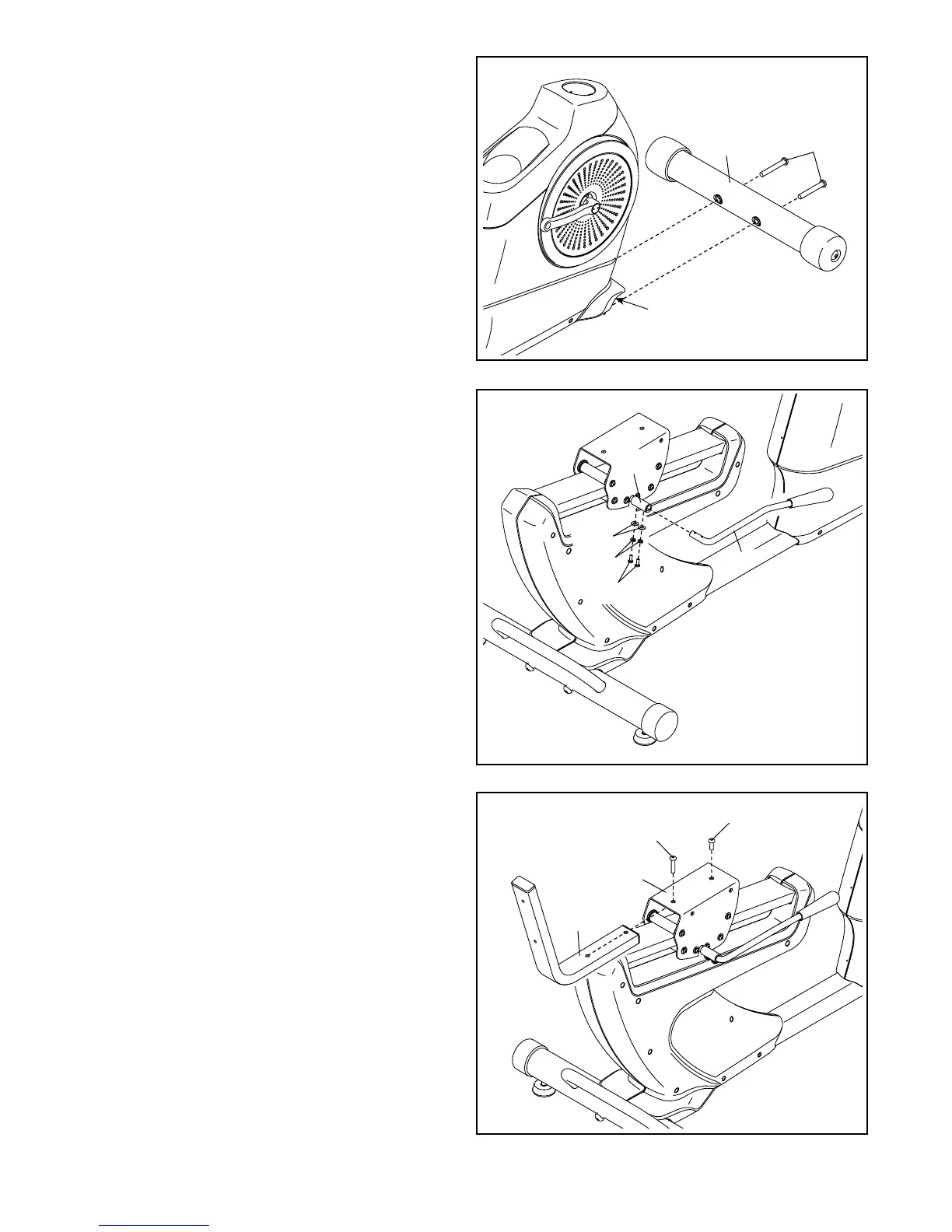

3. Set a sturdy piece of packing material under the
front of the Frame (1).
Orient the Front Stabilizer (2) as indicated by the
sticker.
Attach the Front Stabilizer (2) to the Frame (1)
with two M10 x 80mm Screws (21).
Remove the packing material.
21
2
1
5
41
8
7
42
5. Orient the Backrest Frame (8) as shown.
Attach the Backrest Frame (8) to the Seat
Carriage (7) with an M8 x 20mm Screw (42) and
an M8 x 30mm Screw (41).
6
34
35
4. Orient the Adjustment Lever (6) as shown.
Attach the Adjustment Lever (6) to the Brake
Axle (37) with two M6 x 16mm Screws (33),
two M6 Split Washers (34), and two M6 Large
Washers (35).
33
3
37
To Next Page
