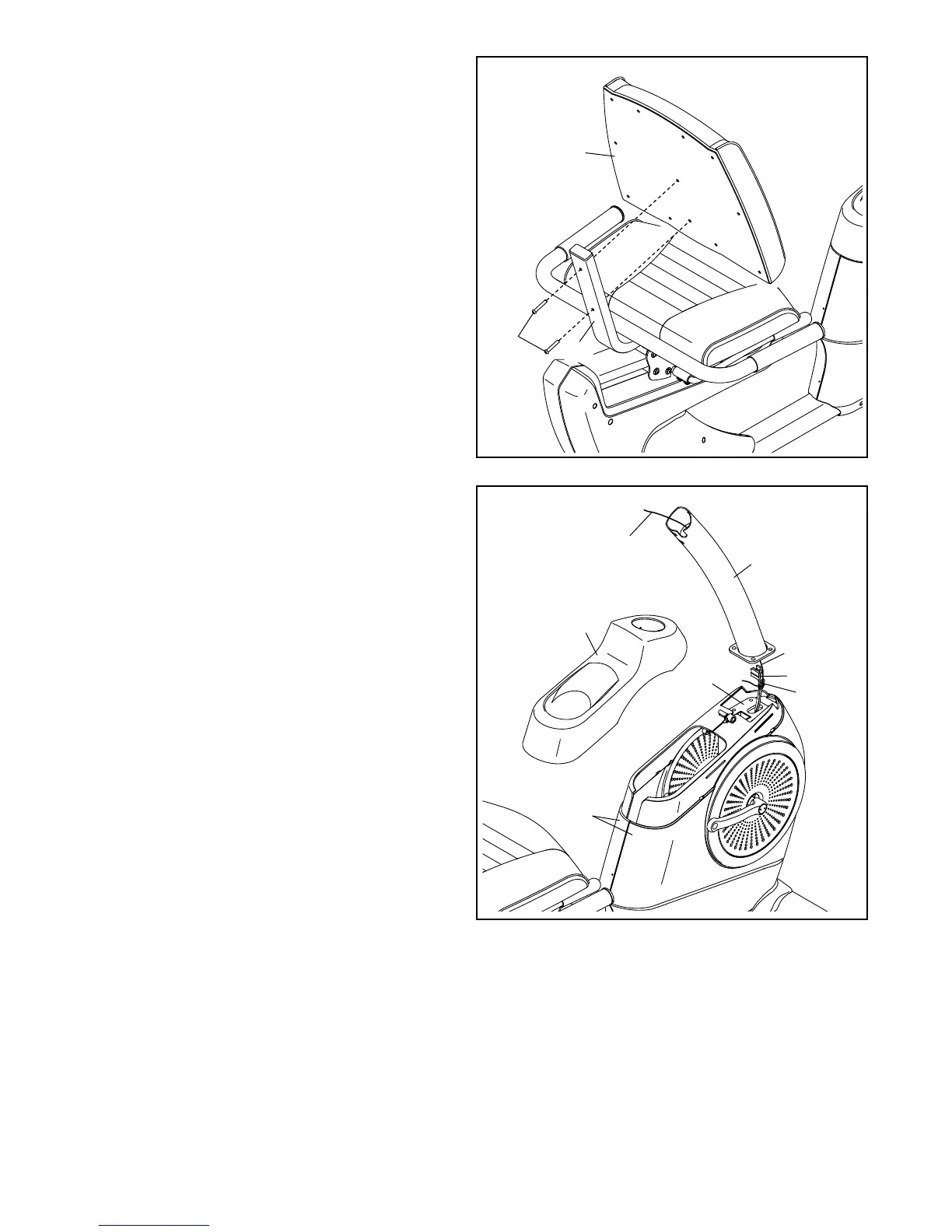

9. Remove the Accessory Tray (5) from the Left
and Right Front Shields (57, 58). Set the
Accessory Tray aside. Tip: It may be necessary
to use a standard (flat) screwdriver to release
the tabs on the Accessory Tray.
Have a second person hold the Upright (4) near
the Frame (1).
Locate the wire tie inside the Upright (4). Tie the
lower end of the wire tie to the Main Wire (77)
and the Extension Wire (88). Then, pull the other
end of the wire tie upward until the wires are
routed through the Upright.
Tip: To prevent the wires from falling into the
Upright (4), secure them to the Upright with
the wire tie.
Wire Tie
Wire Tie
4
1
5
77
88
57, 58
8
8. Orient the Backrest (11) as shown.
Attach the Backrest (11) to the Backrest Frame
(8) with two M6 x 40mm Screws (27).
11
27
8
To Next Page
