12
57
30
29
29
12
13

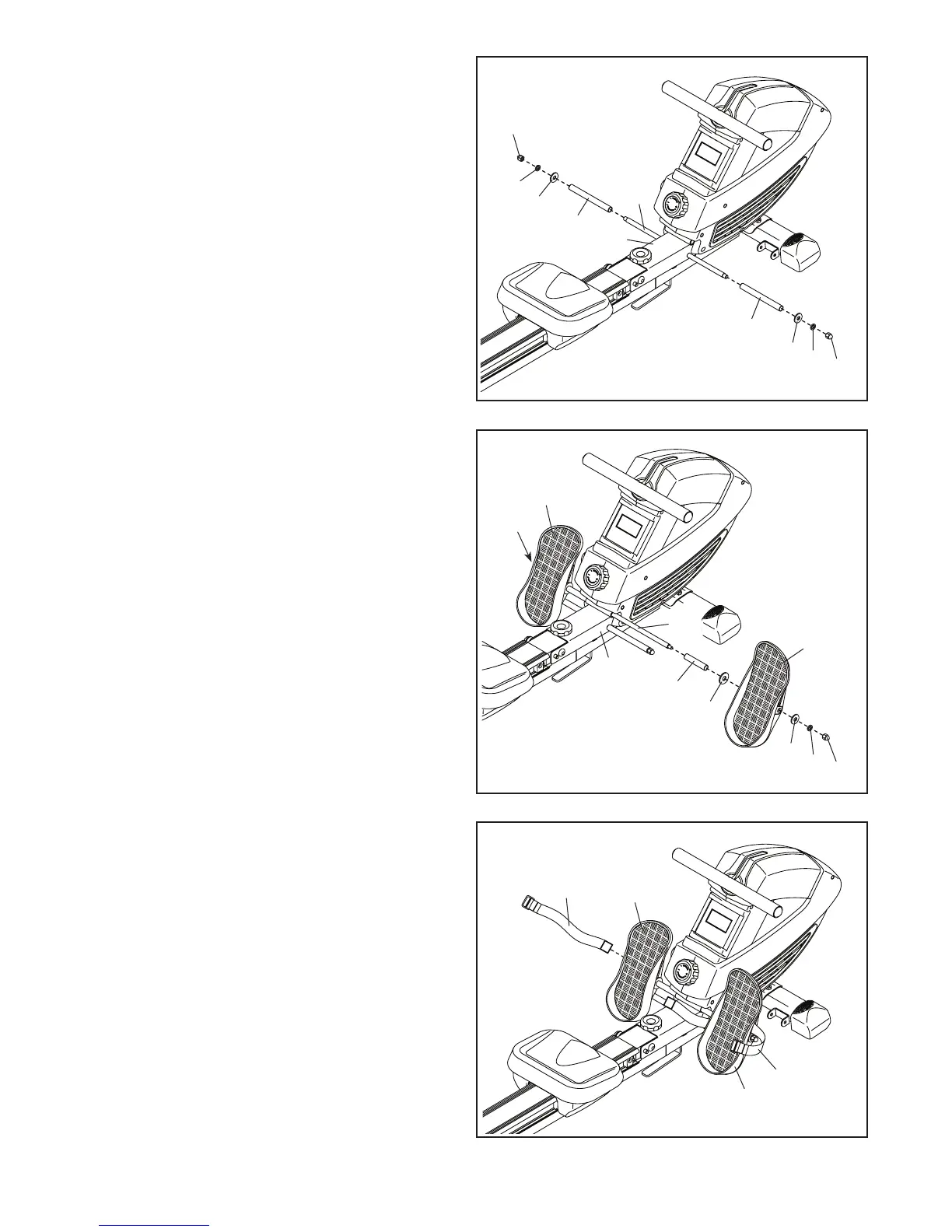

12. Insert the Pedal Axle (58) into the welded tube
on the Frame (39) and center it.
Next, slide a Pedal Spacer (32) and an M13 x
22mm Washer (33) onto each side of the Pedal
Axle (58) (only one side is shown).
Next, identify the Right Pedal (30) and the Left
Pedal (57). Slide the Right Pedal onto the right
side of the Pedal Axle (58), and slide the Left
Pedal onto the left side of the Pedal Axle.
Next, slide an M8 x 20mm Washer (16) and
an M8 Split Washer (15) onto each side of the
Pedal Axle (58) (only one side is shown).
Then, tighten an M8 Acorn Nut (31) onto each
end of the Pedal Axle (58) at the same time.
13. Insert a Pedal Strap (29) through the Right Pedal
(30) as shown. Then, route the end of the Pedal
Strap through the buckle on the Pedal Strap.
Attach the other Pedal Strap (29) to the Left
Pedal (57) in the same way.
33
32
15
39
16
30
31
31
57
58
11. Identify the Stop Rod (35), which is slightly
shorter than the Pedal Axle (not shown).
Insert the Stop Rod (35) into the Frame (39) and
center it.
Next, slide a Pedal Stop (34), an M8 x 20mm
Washer (16), and an M8 Split Washer (15) onto
each side of the Stop Rod (35).
Then, tighten an M8 Acorn Nut (31) onto each
end of the Stop Rod (35) at the same time.
11
35
15
15
34
34
39
16
16
31
31
