8

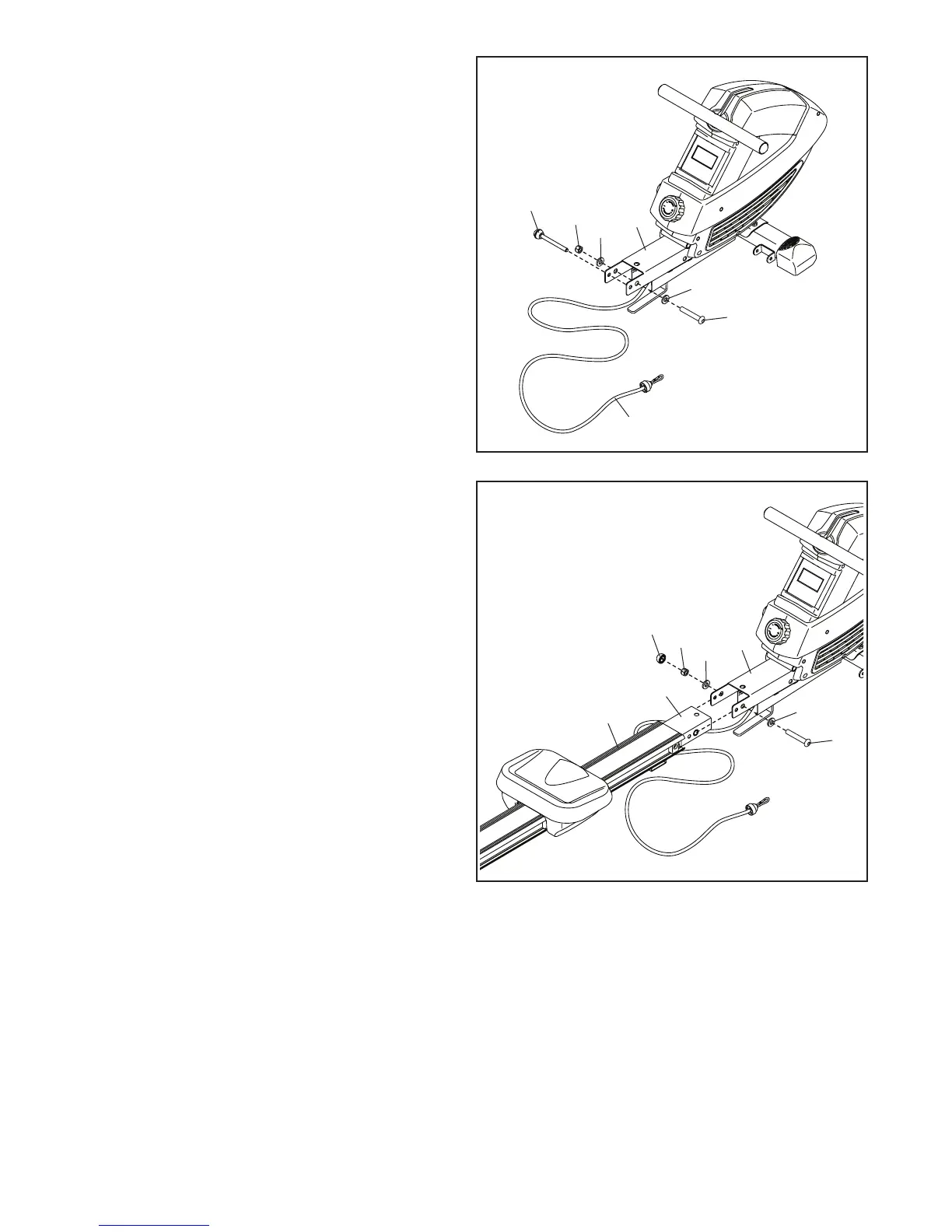

3. Remove the Frame Pin (37) from the Frame (39).
Next, unwrap the Bungee Cord (45) from the
Frame (39).
Then, remove the 1/2" Locknut (54), the two M13
x 22mm Washers (33), and the 1/2" x 100mm
Bolt (36) from the Frame (39).
Note: The parts that you removed will be used in
steps 4 and 5.
45
54
33
33
36
37
3
39
4. Orient the Rail (8) as shown.
Attach the Rail Bracket (41) to the Frame (39)
with the 1/2" x 100mm Bolt (36), the two M13 x
22mm Washers (33), and the 1/2" Locknut (54)
that you removed in step 3.
Then, press the Nut Cap (55) onto the 1/2"
Locknut (54).
4
8
54
33
33
36
41
55
39
