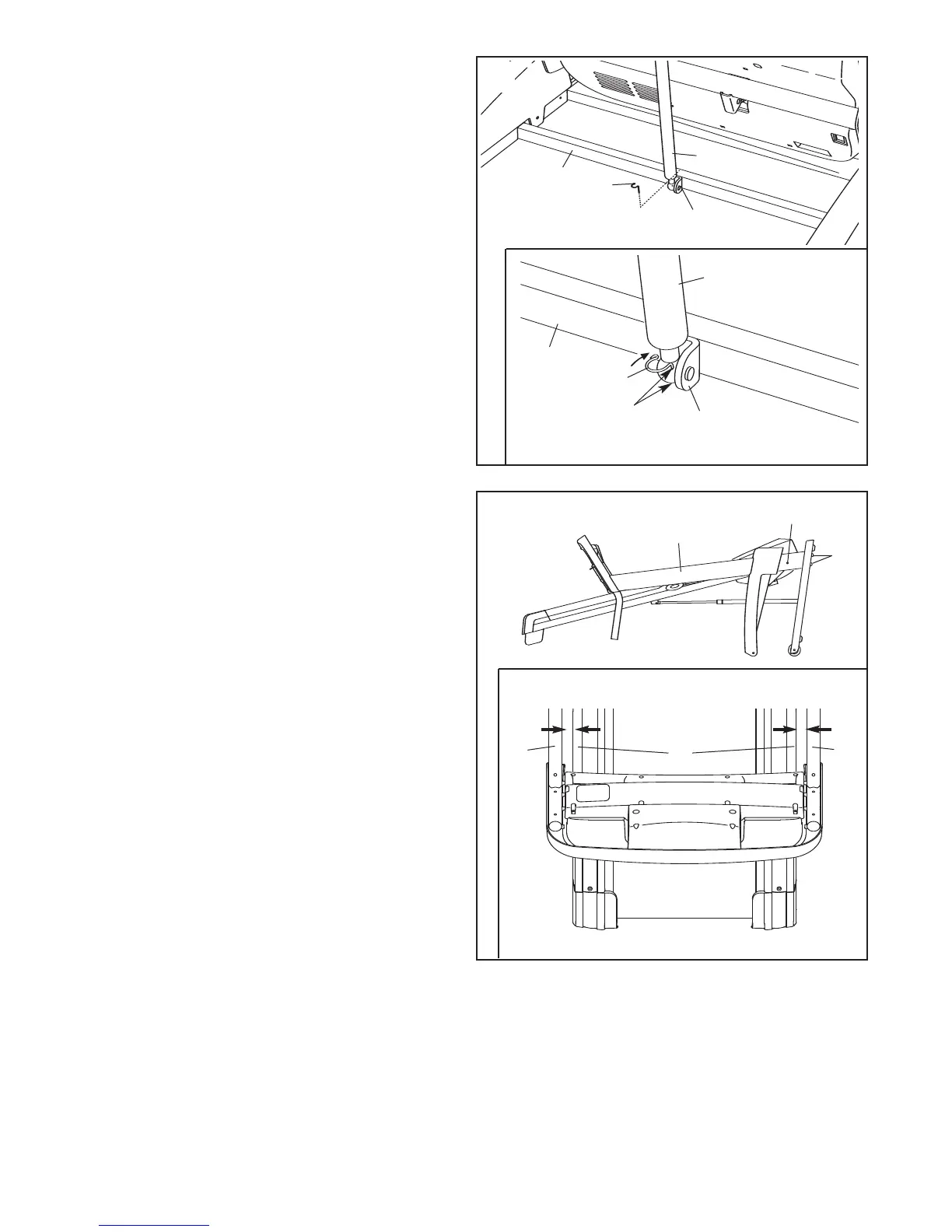

13. Lower the Uprights (31, 36) as shown.
See the inset drawing. Push the Uprights (31,
36) sideways so that the treadmill Frame (74) is
centered between the Uprights.
Firmly tighten the Upright Bolts (40) and the
Frame Bolt (32) on each side of the treadmill.
Do not overtighten the Frame Bolts.
31
31, 36
32
74
36
View From Above
Side View
13
40
12. Pivot the cylinder end of the Gas Spring (21)
down to the position shown. Remove the Spring
C
lip (90) from the end of the Gas Spring.
N
ext, align the cylinder end of the Gas Spring
(21) with the bracket in the center of the Base
(48). Press the end of the Gas Spring onto the
ball on the bracket. Note: It may be necessary
to pivot the Frame (not shown) forward or back-
ward slightly to align the end of the Gas Spring
with the ball.
See the inset drawing. Insert the Spring Clip
(90) into the two indicated small holes in the
Gas Spring (21). Then, rotate the Spring Clip
until it clips onto the Gas Spring.
With the help of a second person, lower the
Frame (not shown) to the floor.
90
21
21
48
48
Holes
90
B
racket
Bracket
1
2
To Next Page
