Page #12 background imageLoading...
Page #12 background image
12
8
F
81
A
G
81
84

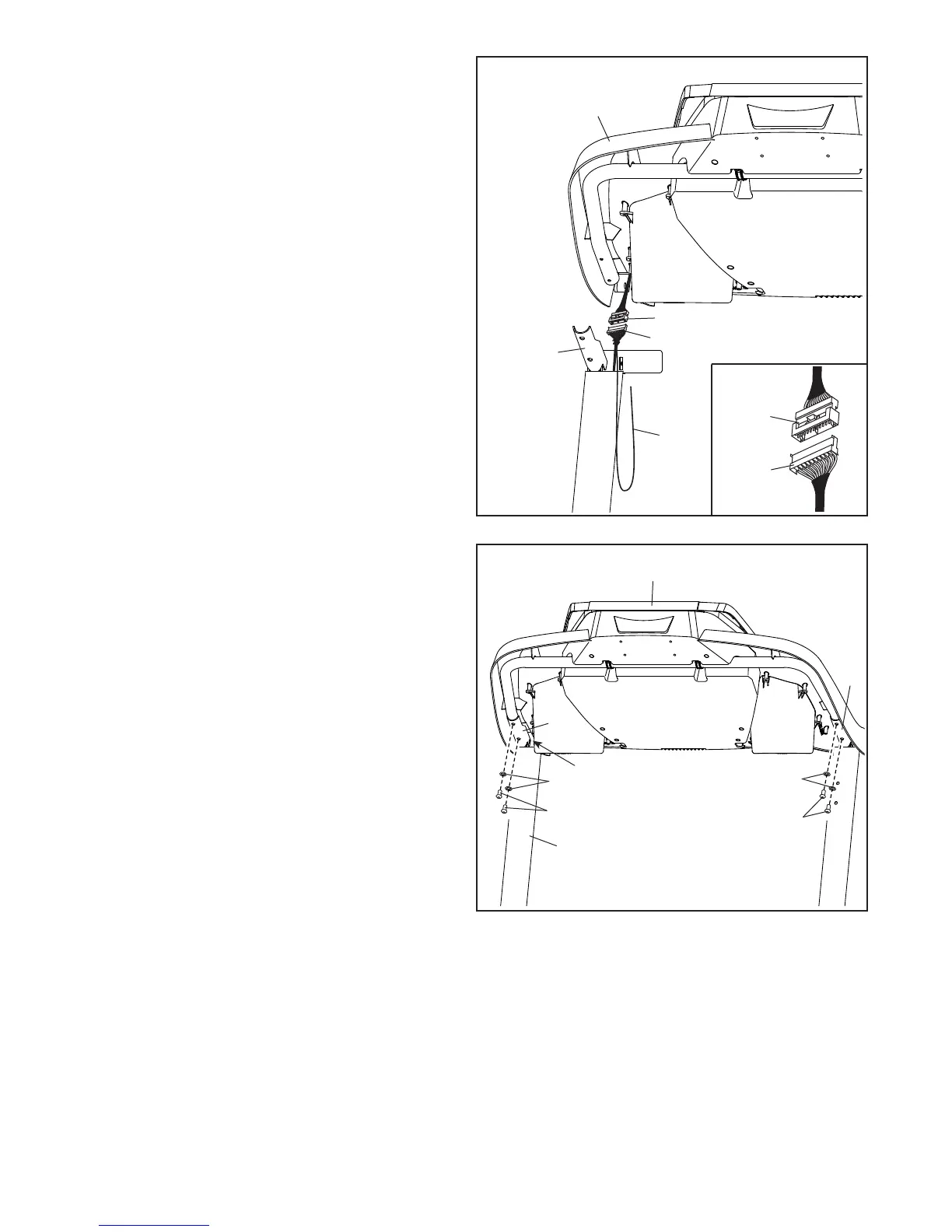

9. Set the console assembly (F) on the Handrails
(84). Be careful not to pinch any wires. Insert
the excess Upright Wire (81) into the Right
Upright (90).
Attach the console assembly (F) with the four
1/4" x 1/2" Screws (2) that you removed in step 7
and four 1/4" Star Washers (26); do not tighten
the Screws yet.
9
90
F
2
2
81
84
84
26
26
G
8. With the help of a second person, hold the con-
sole assembly (F) near the Right Handrail (84)
and the Left Handrail (not shown).
See the inset drawing. Connect the Upright
Wire (81) to the console wire (G). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF YOU DO NOT CONNECT THE
CONNECTORS PROPERLY, THE CONSOLE
MAY BECOME DAMAGED WHEN YOU TURN
ON THE POWER. Then, remove the wire tie (A)
from the Upright Wire.
