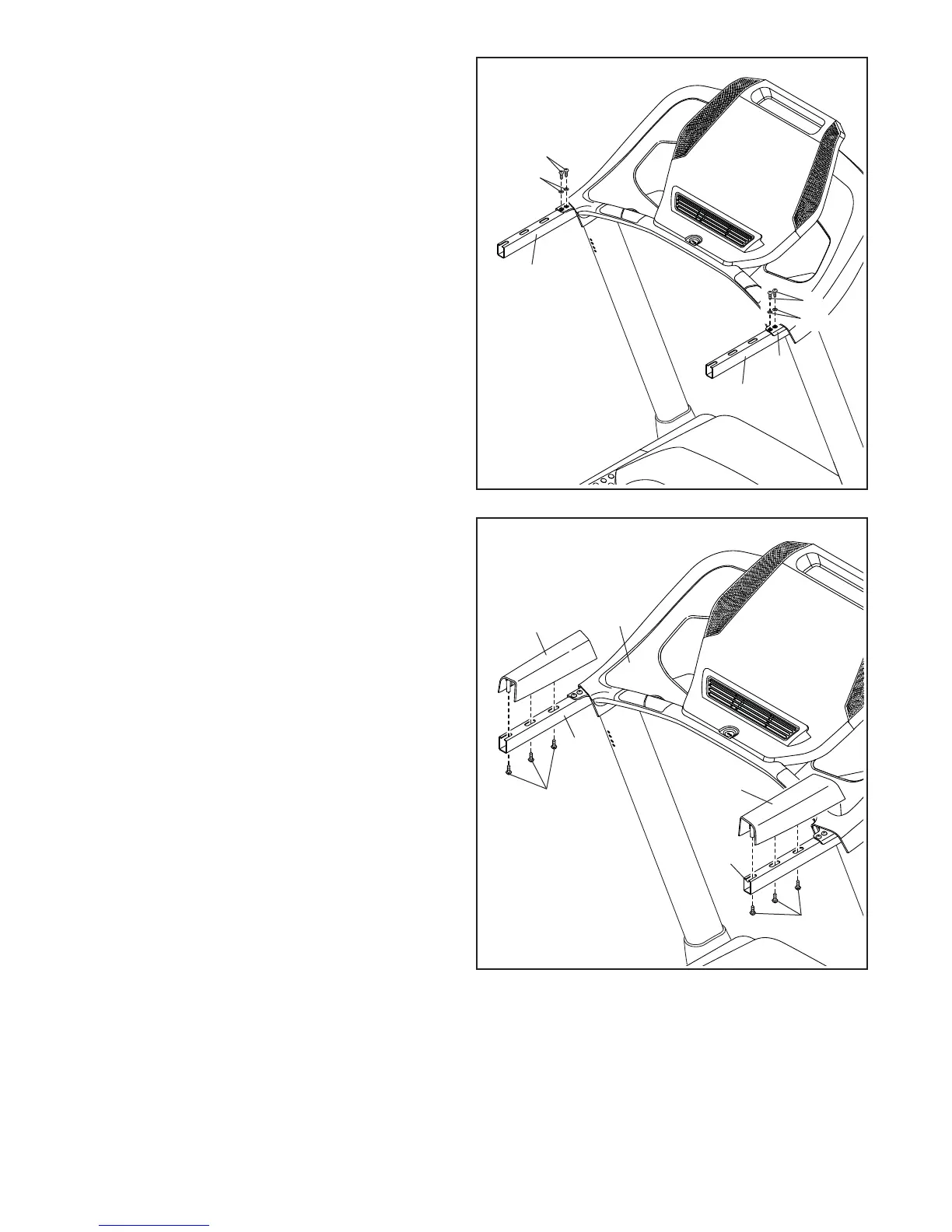

10. IMPORTANT: To avoid damaging the Pulse
Crossbar (5), do not use power tools and do
not overtighten the #10 x 3/4" Screws (9).
Tighten four #10 x 3/4" Screws (9) with four 1/4"
Star Washers (26) into the Pulse Crossbar (5)
and the left and right Handrails (84); start all
four Screws, and then tighten them.
See step 9. Tighten the four 1/4" x 1/2" Screws
(2).
10
9
9
84
5
84
26
26
11. Identify the Left and Right Handrail Inserts (79, 31).
Attach the Left Handrail Insert (79) to the left
Handrail (84) with three #8 x 3/4" Screws (4).
Note: Slide the Left Handrail Insert up against
the console assembly (F) before you tighten
the Screws.
Attach the Right Handrail Insert (31) in the
same way.
11
84
31
79
84
4
4
F
