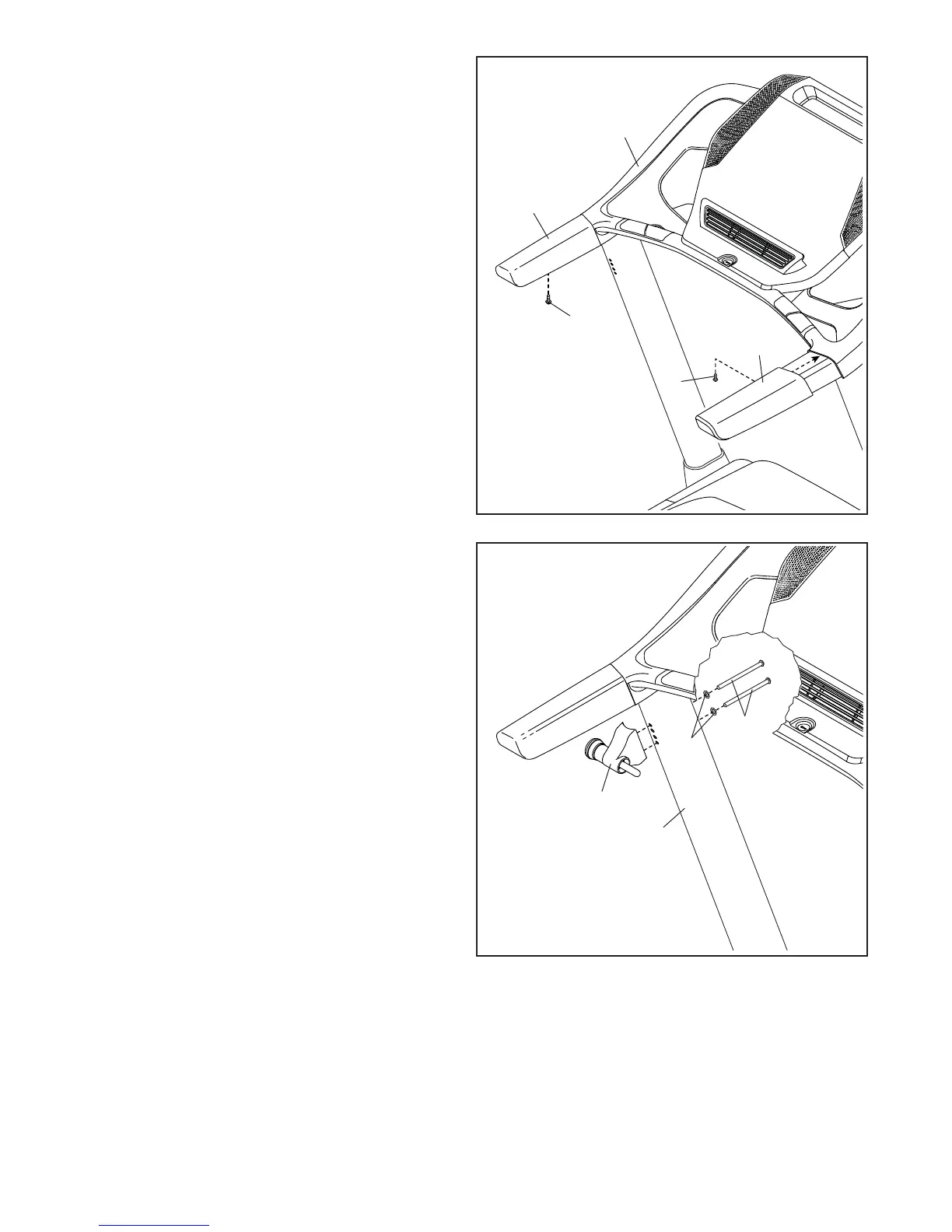

13. Orient the Storage Latch (98) as shown. Attach
the Storage Latch to the Left Upright (89) with
two 1/4" x 4 1/2" Screws (6) and two 1/4" Star
Washers (26) ; start both Screws, and then
tighten them.
98
89
6
26
12. Identify the Left and Right Handrail Covers (87, 8).
Slide the Left Handrail Cover (87) up against the
console assembly (F) and tighten a #8 x 3/4"
Screw (4) into the bottom of the Left Handrail
Cover. Be careful not to overtighten the
Screw.
Attach the Right Handrail Cover (8) in the
same way.
12
4
4
8
87
F
