16. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex key in a secure
place; the hex key is used to adjust the walking belt (see pages 27 and 28). Note: Extra hardware may be
included.

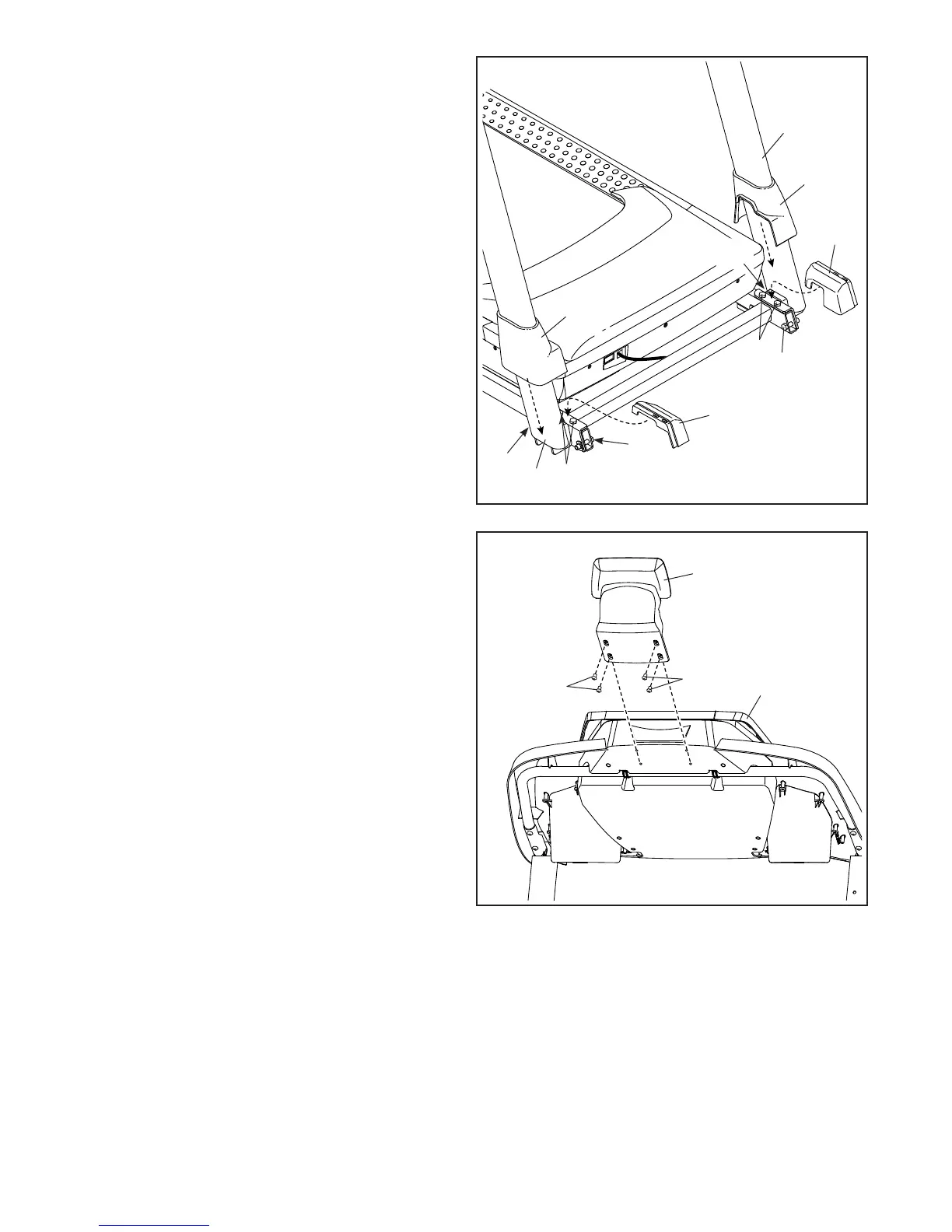

14. Firmly tighten the four 3/8" x 2 3/8" Screws
(7), the two 3/8" x 1 3/4" Screws (62), and the
two 3/8" x 1 1/4" Screws (51).
Next, set the Left Inner Base Cover (97) onto the
lower end of the Left Upright (89). Then, slide
the Left Base Cover (82) downward and press it
onto the Left Inner Base Cover.
Next, set the Right Inner Base Cover (96) onto
the lower end of the Right Upright (90). Then,
slide the Right Base Cover (83) downward and
press it onto the Right Inner Base Cover.
97
83
82
62
89
7
7
51
62
96
51
14
90
15
100
F
99
99
15. Attach the Tablet Holder (100) to the console
assembly (F) with four #8 x 1/2" Machine Screws
(99); start all four Machine Screws, and then
tighten them. Do not overtighten the Machine
Screws.
To Next Page
