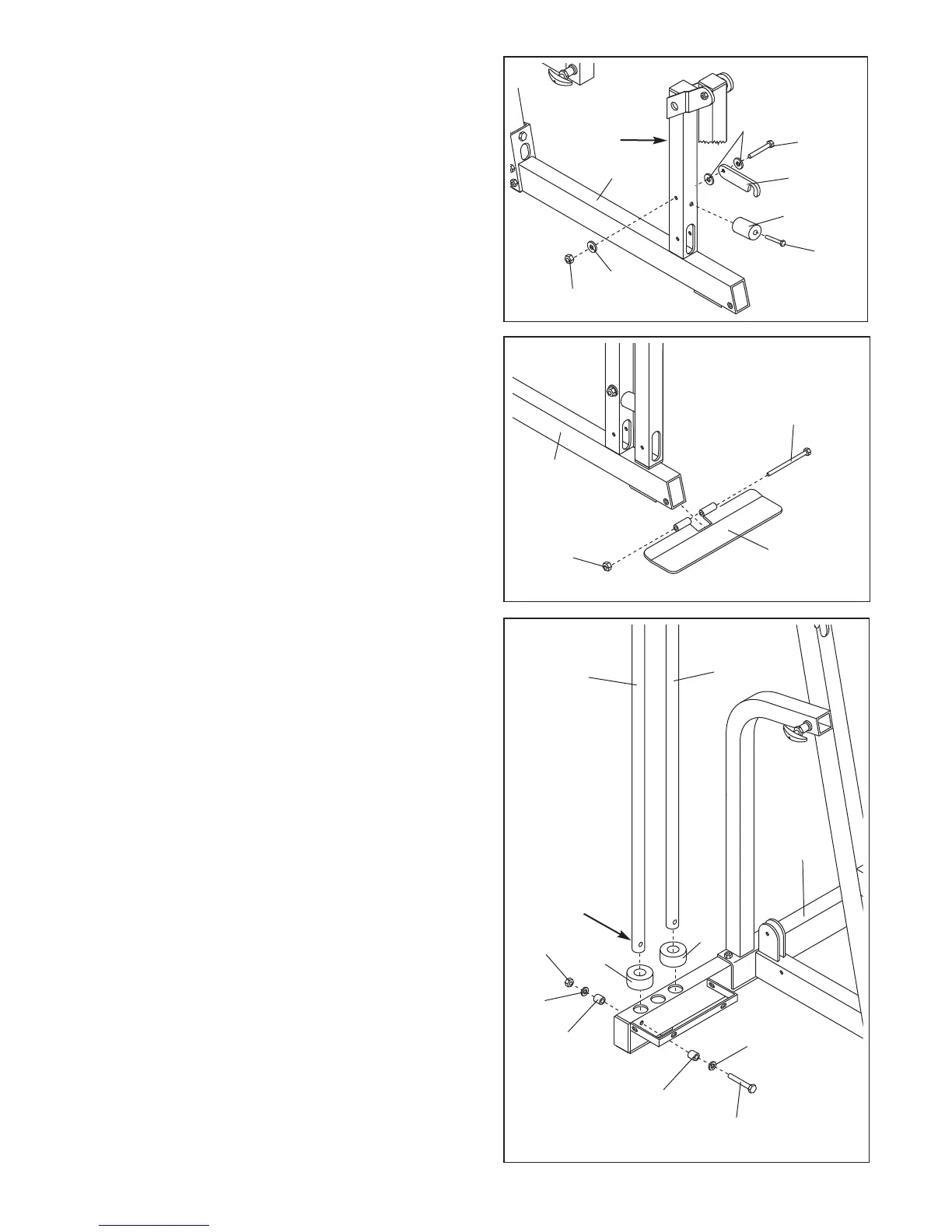

3. Attach the Leg Lever Lock (11) to the front leg of the
Base (8) with a 5/16” x 3” Bolt (78), three 5/16” Flat
Washers (80), and a 5/16” Nylon Jamnut (79). Do not
o
vertighten the Nylon Jamnut; the Leg Lever Lock
should pivot easily.
Attach the Leg Lever Bumper (6) to the front leg of the
Base (8) with a #10 x 1” Tap Screw (7).
78
11
6
7
80
80
8
79
4. Attach the Foot Plate (4) to the Base (8) with a 3/8” x
5 1/2” Bolt (57) and a 3/8” Nylon Locknut (50).
4
57
4
8
50
5. Place two Weight Bumpers (19) over the indicated
holes in the Stabiliser (5).
Insert the two Weight Guides (23) through the Weight
Bumpers (19) and the holes in the Stabiliser (5).
Attach the indicated Weight Guide (23) to the
Stabiliser (5) with a 3/8” x 2 1/2” Bolt (54), two 3/8”
Flat Washers (55), two Pulley Bushings (42), and a
3/8” Nylon Jamnut (63).
5
23
19
55
5
23
19
Hole
63
55
42
42
54
Front Leg
3
