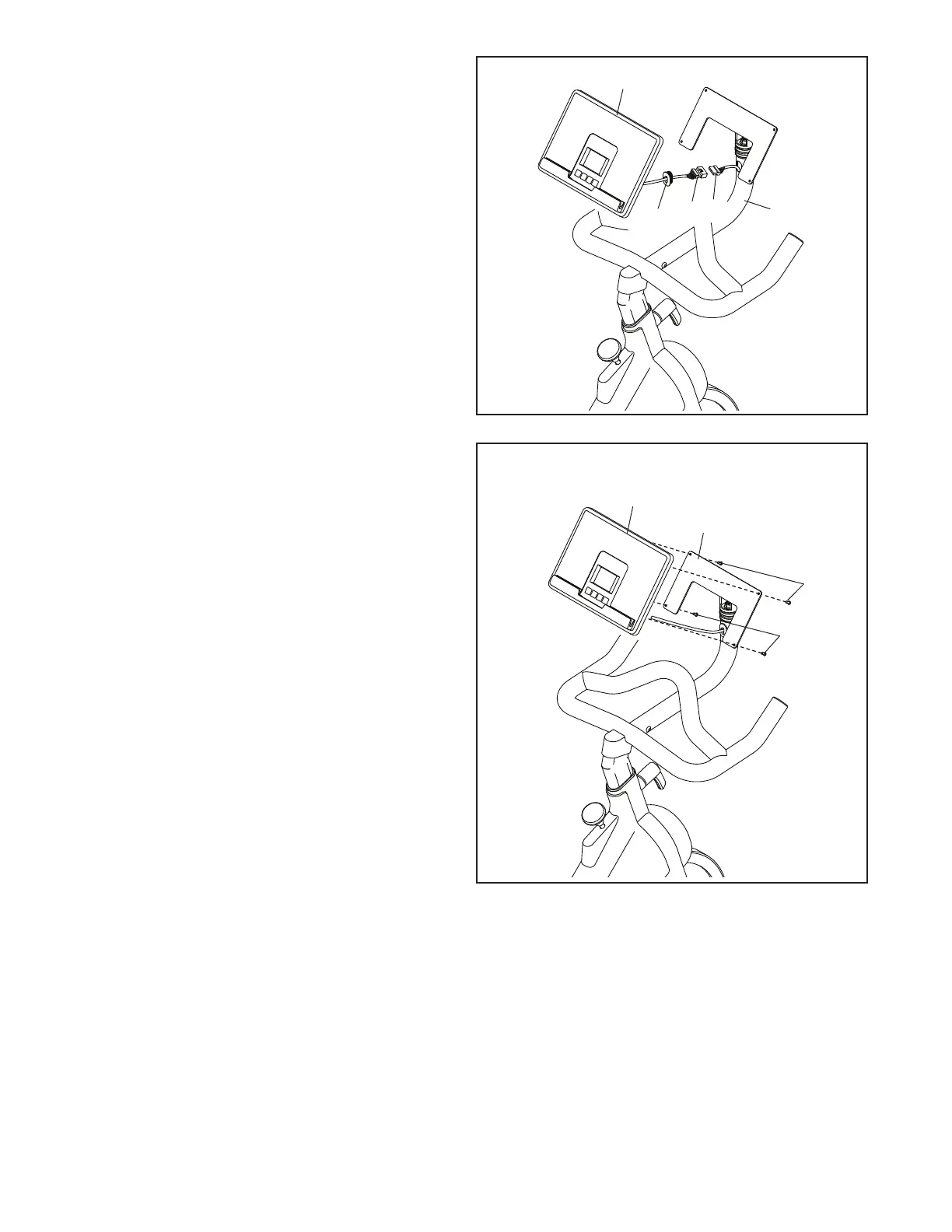

12. While a second person holds the Console
Deck (89) near the Console Mount (5), con-
nect the Console Wire (J) to the Extension Wire
(99). Tip: The wire connectors should slide
together easily and snap into place with an
audible click. If they do not, turn one connec-
tor and try again.
Next, press the Wire Protector (98) around the
Console Wire (J) in the location shown.
Then, insert the Wires (J, 99) into the Console
Mount (5), and press the Wire Protector (98) into
the Console Mount.
J
99
13. Tip: Avoid pinching the wires. If necessary,
tilt the Console Bracket (26) upward to make
this step easier. Attach the Console Deck (89)
to the Console Bracket with four M4 x 12mm
Blunt Screws (81); start all the Blunt Screws,
and then tighten them.
13
Avoid pinching
the wires
89
81
26
81
