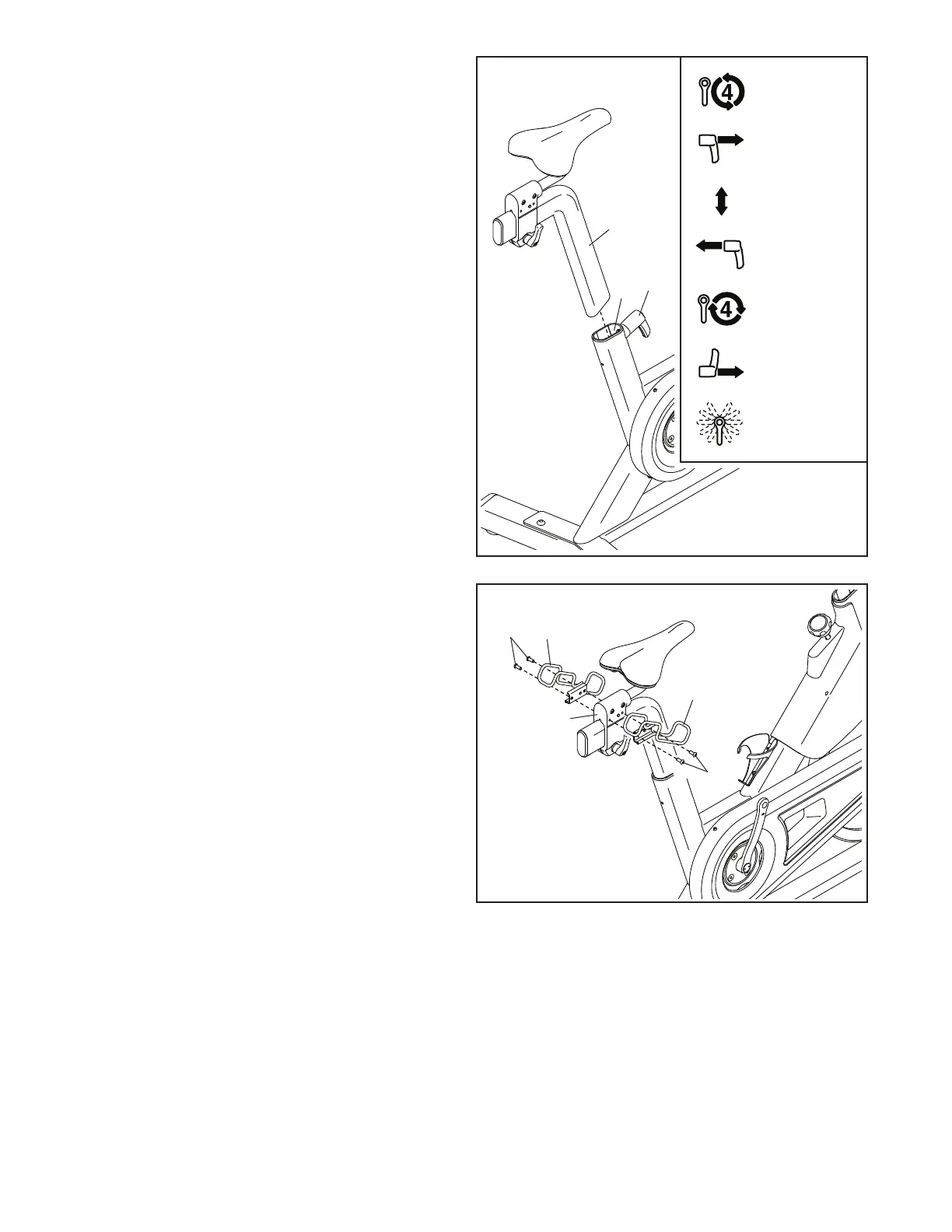

4. Tip: See the inset drawing to learn how to
operate the Adjustment Handle (14).
Locate the Adjustment Handle (14) on the rear
of the Frame (1). Pull the Adjustment Handle
outward, and insert the Saddle Post (7) into the
Frame.
Next, move the Saddle Post (7) upward or
downward to the desired position, release the
Adjustment Handle (14) into an adjustment
hole in the Saddle Post, and then tighten the
Adjustment Handle four turns. Make sure that
the Adjustment Handle is firmly engaged in
an adjustment hole.
Then, pull the Adjustment Handle (14) outward,
turn it so that it points downward as shown, and
then release it.
10
11
79
12
79
5. Orient the Left and Right Weight Rests (11, 12)
as shown.
Attach each Weight Rest (11, 12) to the Saddle
Carriage (10) with two M6 x 12mm Screws (79).
5
Loosen handle
Pull handle
Adjust post
Release handle
Tighten handle
Pull handle
Turn handle
down
