Pro-Form Carbon CX User Manual

9
6
16

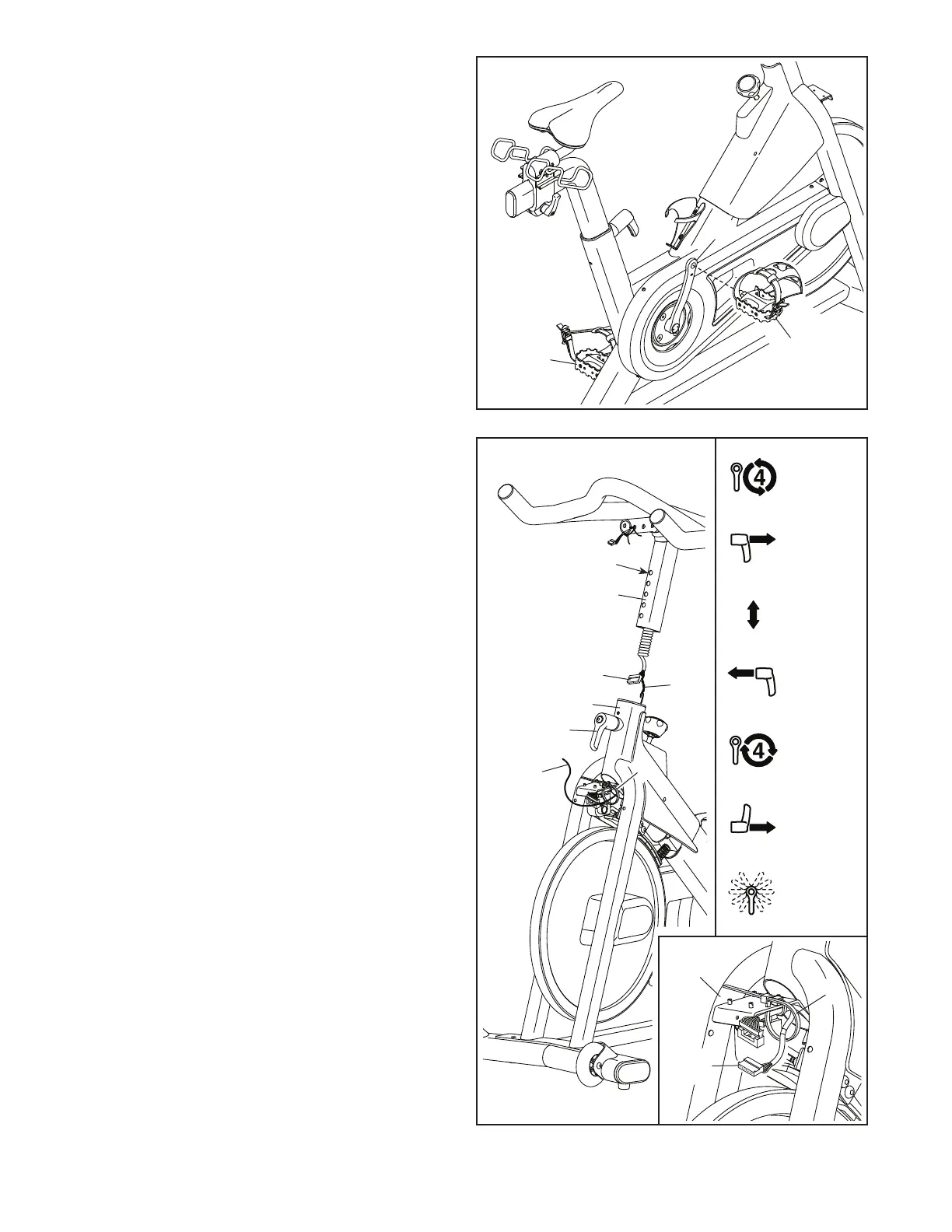

6. Note: You can attach your own pedals if
desired.
Identify the Right Pedal (16). Using your fingers,
turn the Right Pedal about halfway into the Right
Crank Arm (18). Then, use the included wrench
to FIRMLY TIGHTEN the Right Pedal.
Repeat this step with the Left Pedal (17).
IMPORTANT: You must turn the Left Pedal
COUNTERCLOCKWISE to attach it.
18
17
7. Have a second person hold the Handlebar (4)
near the Frame (1).
Next, locate the wire tie (A) in the Frame (1).
Tie the wire tie to the Upper Wire (90) in the
Handlebar (4). Then, pull the lower end of the
wire tie until the Upper Wire is routed through
the Frame. Untie and discard the wire tie.
Tip: See the upper inset drawing to learn how
to operate the Adjustment Handle (14).
Next, locate the Adjustment Handle (14) on
the front of the Frame (1). Pull the Adjustment
Handle outward. Then, insert the Handlebar (4)
into the Frame.
Move the Handlebar (4) downward and release
the Adjustment Handle (14) into the indi-
cated adjustment hole (B). Then, tighten the
Adjustment Handle four turns. Make sure that
the Adjustment Handle is firmly engaged in
the adjustment hole.
Then, pull the Adjustment Handle (14) outward,
turn it so that it points downward as shown, and
then release it.
See the lower inset drawing. Insert the Upper
Wire (90) through the zip tie (C) on the Frame
(1); do not connect the Upper Wire and do not
tighten the zip tie yet.
7
C
4
B
14
A
A
1
1
90
C
90
Loosen
handle
Pull
handle
Adjust
post
Release
handle
Tighten
handle
Pull
handle
Turn handle
down

Pro-Form Carbon CX Specifications

General

Brand	Pro-Form
Model	Carbon CX
Category	Exercise Bike
Language	English
