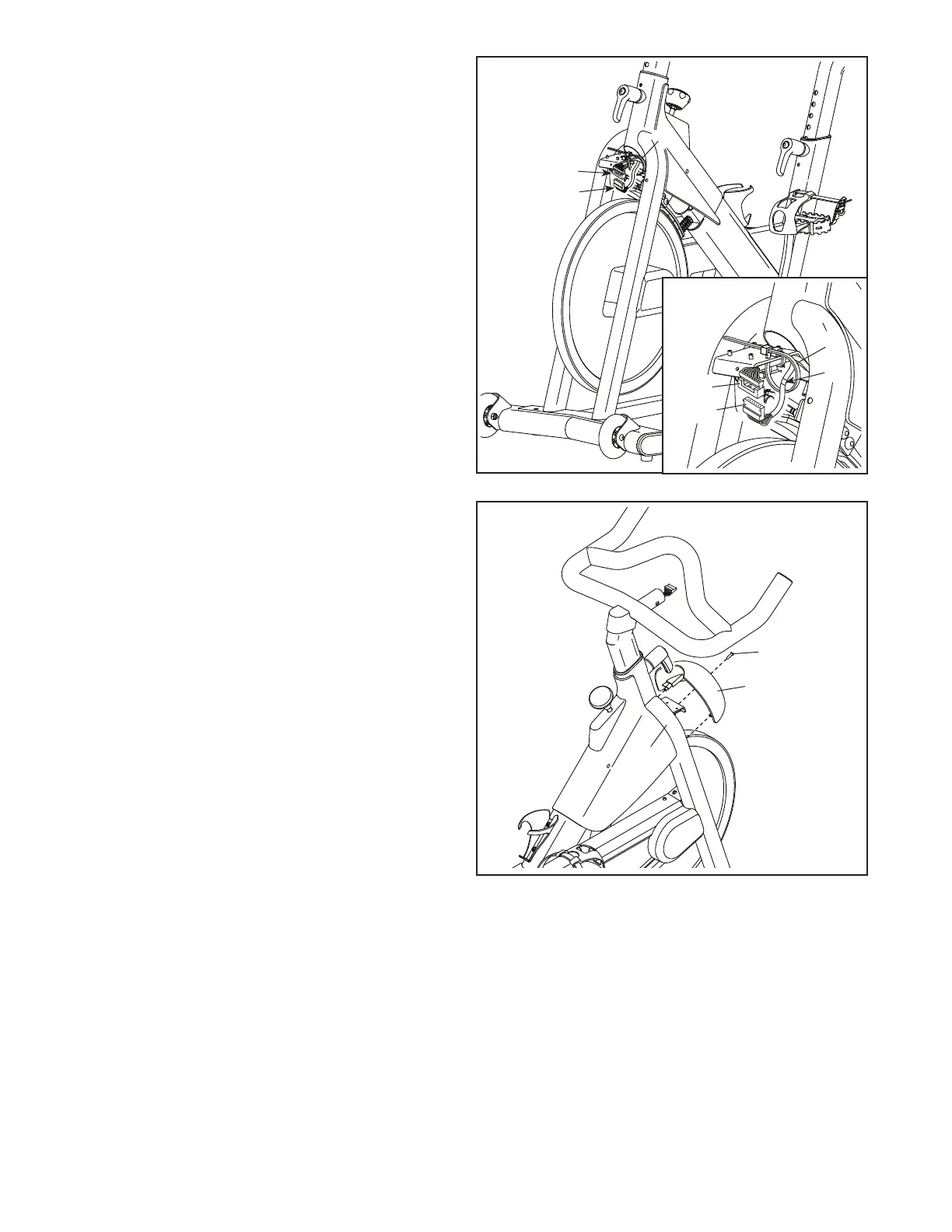

8. See the inset drawing. Connect the Upper
Wire (90) to the Lower Wire (82). Tip: The wire
connectors should slide together easily and
snap into place with an audible click. If they
do not, turn one connector and try again.
Next, tighten the zip tie (C) around the indicated
mark (D) on the Upper Wire (90). Then, cut off
the excess zip tie.
8
90
82
C
C
D
90
82
9
9. Tip: Avoid pinching the wires. Press the Motor
Cover (38) onto the Frame (1), and then attach it
with an M4 x 20mm Screw (80).
80
38
1
Avoid
pinching
the wires
To Next Page
