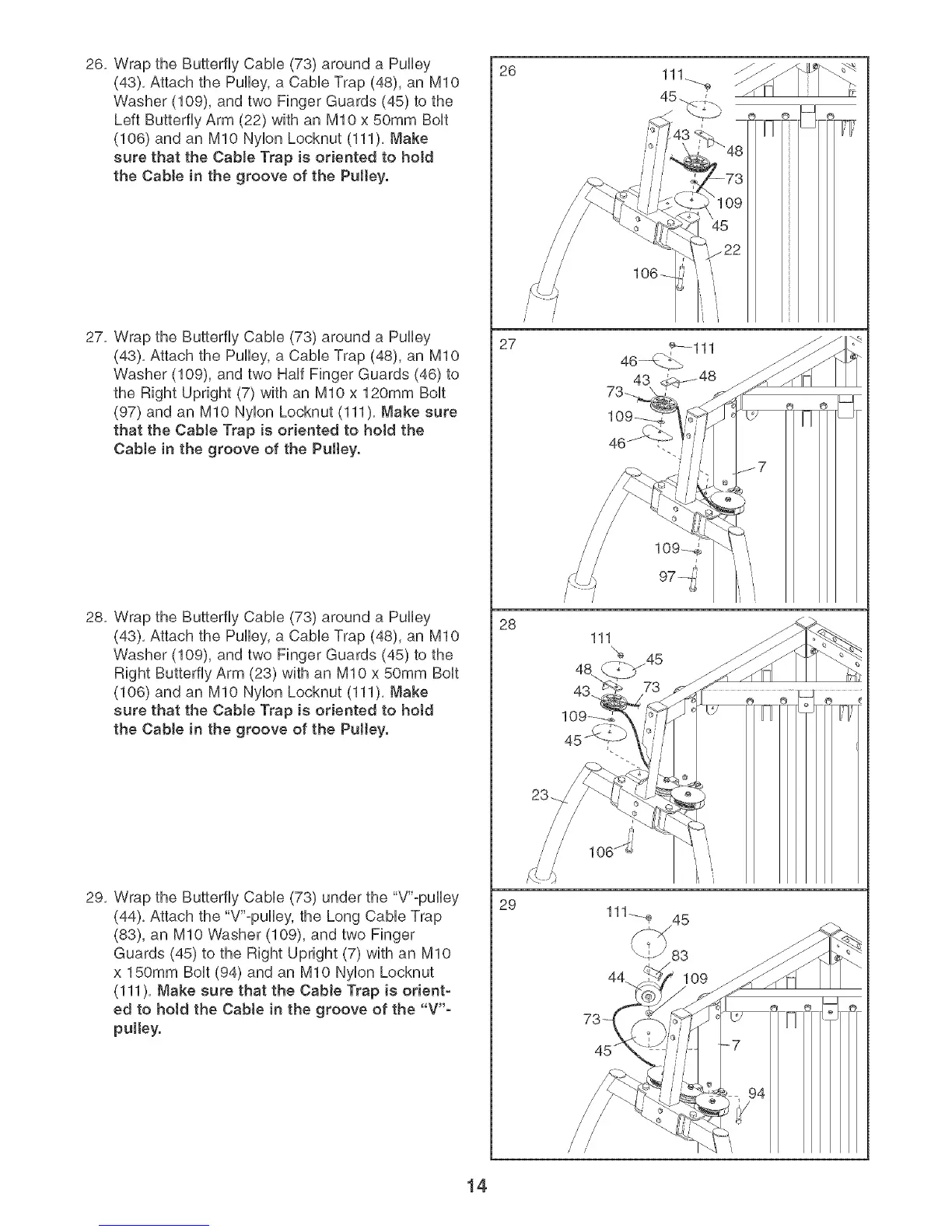

26, Wrap the Butterfly CaMe (73) around a Pulley
(43), Attach the Pulley, a CaMe Trap (48), an MIO
Washer (10% and two Finger Guards (45) to the
Left Butterfly Arm (22) with an MIO x 50mm BoUt
(106) and an MIO NyUonLocknut (111), Make
sure that the CabJe Trap is oriented to hold
the Cable in the groove of the Pulley.
27, Wrap the Butterfly CaMe (73) around a Pulley
(43), Attach the Pulley, a CaMe Trap (48), an MIO
Washer (10% and two HaUlFinger Guards (46) to
the Right Upright (7) with an MIO x 120mm BoUt
(97) and an MIO NyUonLocknut (111), Make sure
that the Cable Trap is oriented to hold the
Cable in the groove of the Pulley.
28, Wrap the Butterfly Cable (73) around a Pulley
(43), Attach the Pulley, a CaMe Trap (48), an MIO
Washer (10% and two Finger Guards (45) to the
Right Butterfly Arm (23) with an MIO x 50mm BoUt
(106) and an MIO NyUonLocknut (111), Make
sure that the Cable Trap is oriented to hoJd
the Carte in the groove of the Pulley.
29, Wrap the Butterfly CaMe (73) under the "V"-pulley
(44), Attach the "V"opulley, the Long Cable Trap
(83), an MIO Washer (109), and two Finger
Guards (45) to the Right Upright (7) with an MIO
x 150mm Bolt (94) and an MIO Nylon Locknut
(111), Make sure that the CabJe Trap is orient-
ed to hold the CaMe in the groove of the "V"-
puHeyo
26
27
28
29
46
/
111
,\÷
48
43.
_111
111_ 45
83
14
