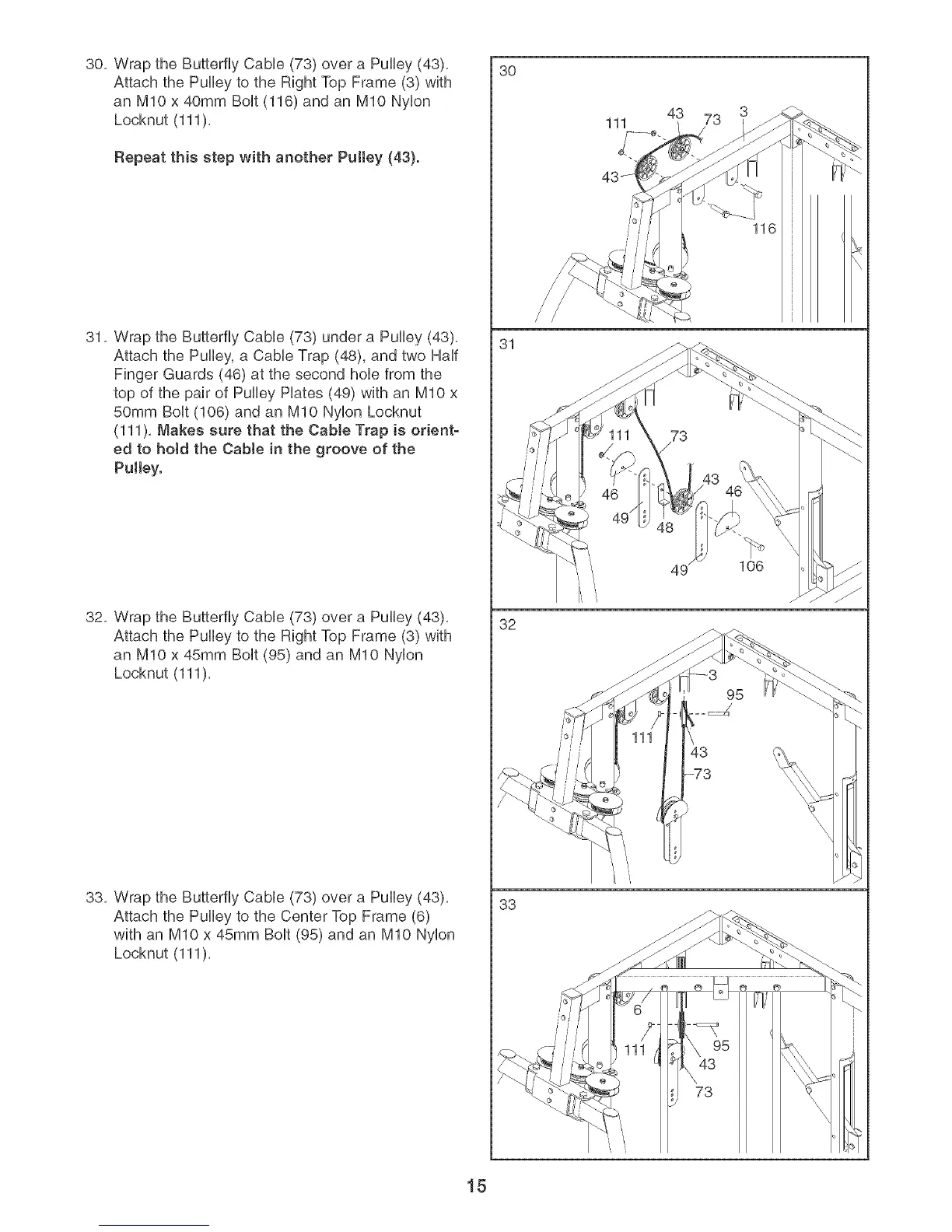

30, Wrap the Butterfly CaMs (73) over a Pulley (43),
Attach the Pulley to the Right Top Frame (3) with
an MIO x 40mm BoUt(116) and an MIO NyUon
Locknut (111),
Repeat this step with another Puttey (43}.
31, Wrap the Butterfly CabUs (73) under a Pulley (43),
Attach the Pulley, a CaMe Trap (48), and two HaUl
Finger Guards (46) at the second hoUsfrom the
top of the pair of Pulley Hates (49) with an MIO x
50mm BoUt(106) and an MIO NyUonLocknut
(111), Makes sure that the Cable Trap is orient-
ed to hold the Cable in the groove of the
Pulley.
32, Wrap the Butterfly Cable (73) over a Pulley (43),
Attach the Pulley to the Right Top Frame (3) with
an MIO x 45mm BoUt(95) and an MIO NyUon
Locknut (111),
33, Wrap the Butterfly CaMs (73) over a Pulley (43),
Attach the Pulley to the Center Top Frame (6)
with an MIO x 45mm BoUt(95) and an MIO NyUon
Locknut (111),
3O
31
32
33
111
43 73
\ 95
\43
73
116
106
95
15
