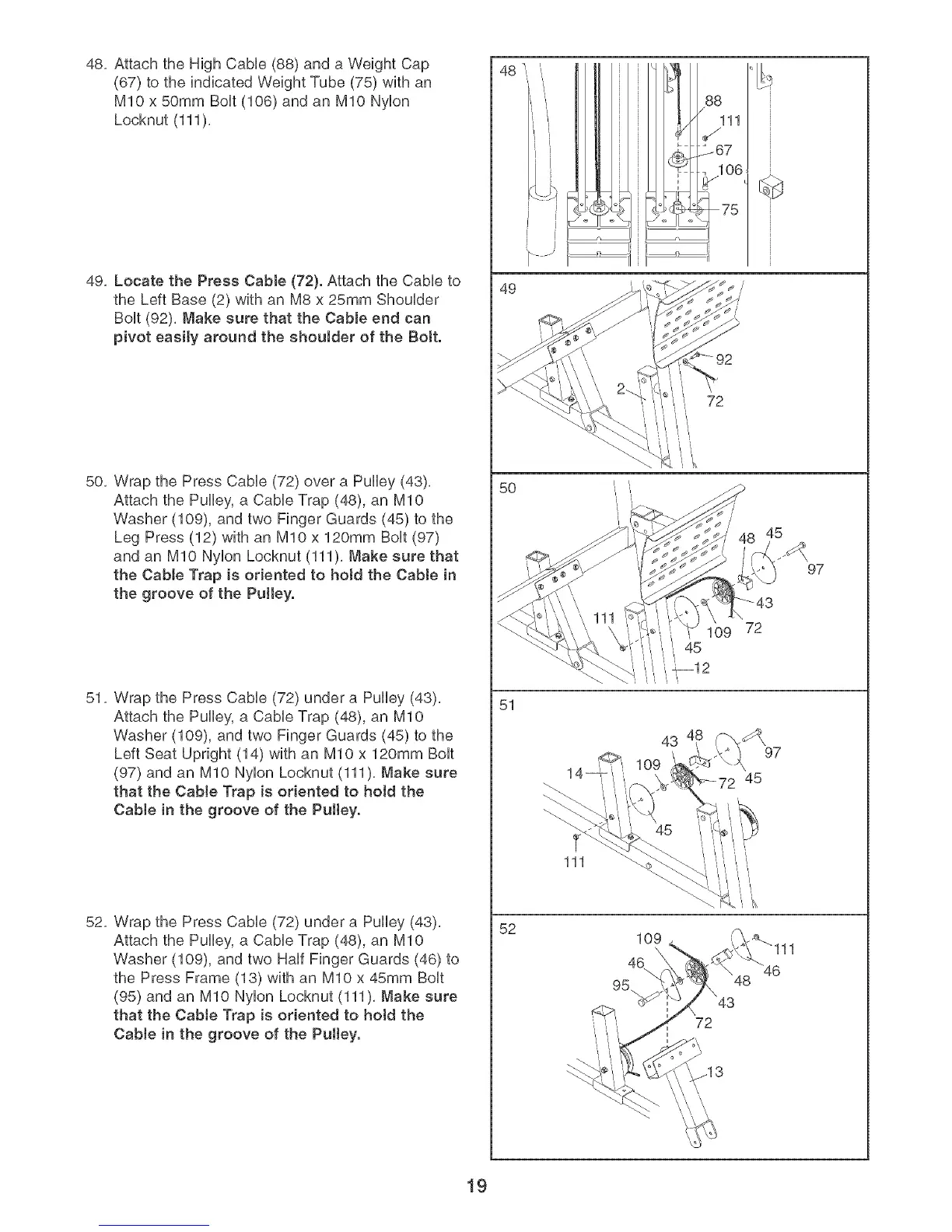

48, Attach the High CaMe (88) and a Weight Cap
(67) to the indicated Weight Tube (75) with an
MIO x 50mm BoUt(106) and an MIO NyUon
Locknut (111),
49, Locate the Press CabJe (72}. Attach the CaMe to
the Left Base (2) with an M8 x 25mm ShouUder
BoUt(92), Make sure that the Cable end can
pivot easily around the shoulder of the Bolt.
50, Wrap the Press CaMe (72) over a Pulley (43),
Attach the Pulley, a CaMe Trap (48), an MIO
Washer (10% and two Finger Guards (45) to the
Leg Press (12) with an MIO x 120mm BoUt(97)
and an MIO NyUonLocknut (111), Make sure that
the CabJe Trap is oriented to hold the Cable in
the groove of the Pulley.
51, Wrap the Press CaMe (72) under a Pulley (43),
Attach the Pulley, a CaMe Trap (48), an MIO
Washer (10% and two Finger Guards (45) to the
Left Seat Upright (14) with an MIO x 120mm BoUt
(97) and an MIO NyUonLocknut (111), Make sure
that the Cable Trap is oriented to hold the
Cable in the groove of the Pulley.
52, Wrap the Press CabUe(72) under a Pulley (43),
Attach the Pulley, a CaMe Trap (48), an MIO
Washer (10% and two HaUlFinger Guards (46) to
the Press Frame (13) with an MIO x 45mm Bolt
(95) and an MIO Nylon Locknut (111), Make sure
that the Cable Trap is oriented to hotd the
Cable in the groove of the Pulley.
48 _'_
49
50
51
52
111
-67
10(
72
\
)9 72
45
_-12
43
97
45
111
109
46.
95
72
97
19
