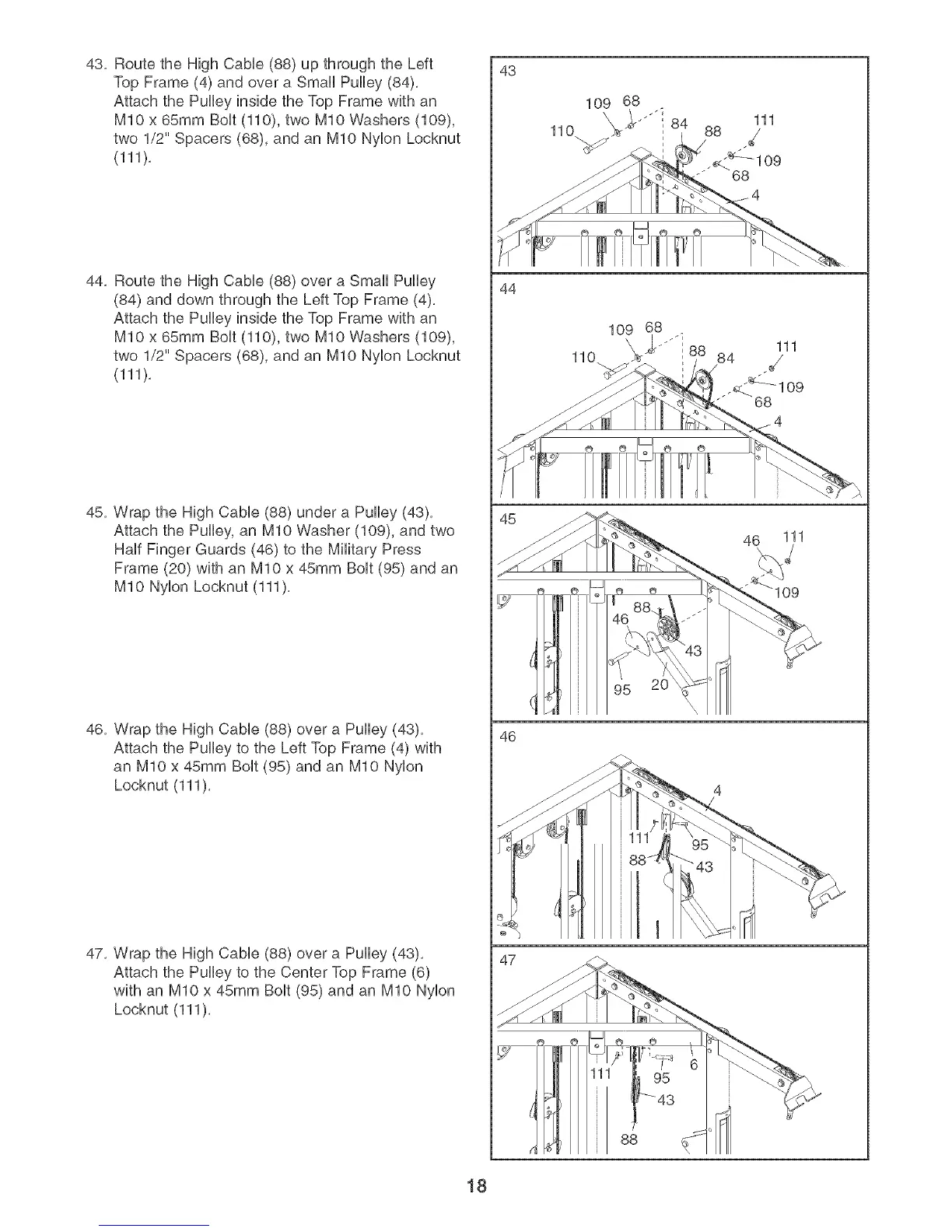

43, Route the High CabUe(88) up through the Left
Top Frame (4) and over a Small Pulley (84),
Attach the Pulley inside the Top Frame with an
MIO x 65mm BoUt(110), two MIO Washers (10%
two 1/2" Spacers (68), and an MIO NyUonLocknut
(111),
44, Route the High CaMe (88) over a SmaUUPuUUey
(84) and down through the Left Top Frame (4),
Attach the PuUUeyinside the Top Frame with an
MIO x 65mm BoUt(110), two MIO Washers (10%
two 1/2" Spacers (68), and an MIO NyUonLocknut
(111),
45, Wrap the High CaMe (88) under a PuUUey(43),
Attach the PuUUey,an MIO Washer (109), and two
HaUlFinger Guards (46) to the MiUitaryPress
Frame (20) with an MIO x 45mm BoUt(95) and an
MIO NyUonLocknut (111),
46, Wrap the High CabUe (88) over a PuUUey(43),
Attach the PuUUeyto the Left Top Frame (4) with
an MIO x 45mm BoUt(95) and an MIO NyUon
Locknut (111),
47, Wrap the High CaMe (88) over a PuUUey(43),
Attach the PuUUeyto the Center Top Frame (6)
with an MIO x 45mm Bolt (95) and an MIO Nylon
Locknut (111),
43
44
45
46
47
110
110
109 68
" _84 88
109 68
95
88
84
46
111
/
111
18
