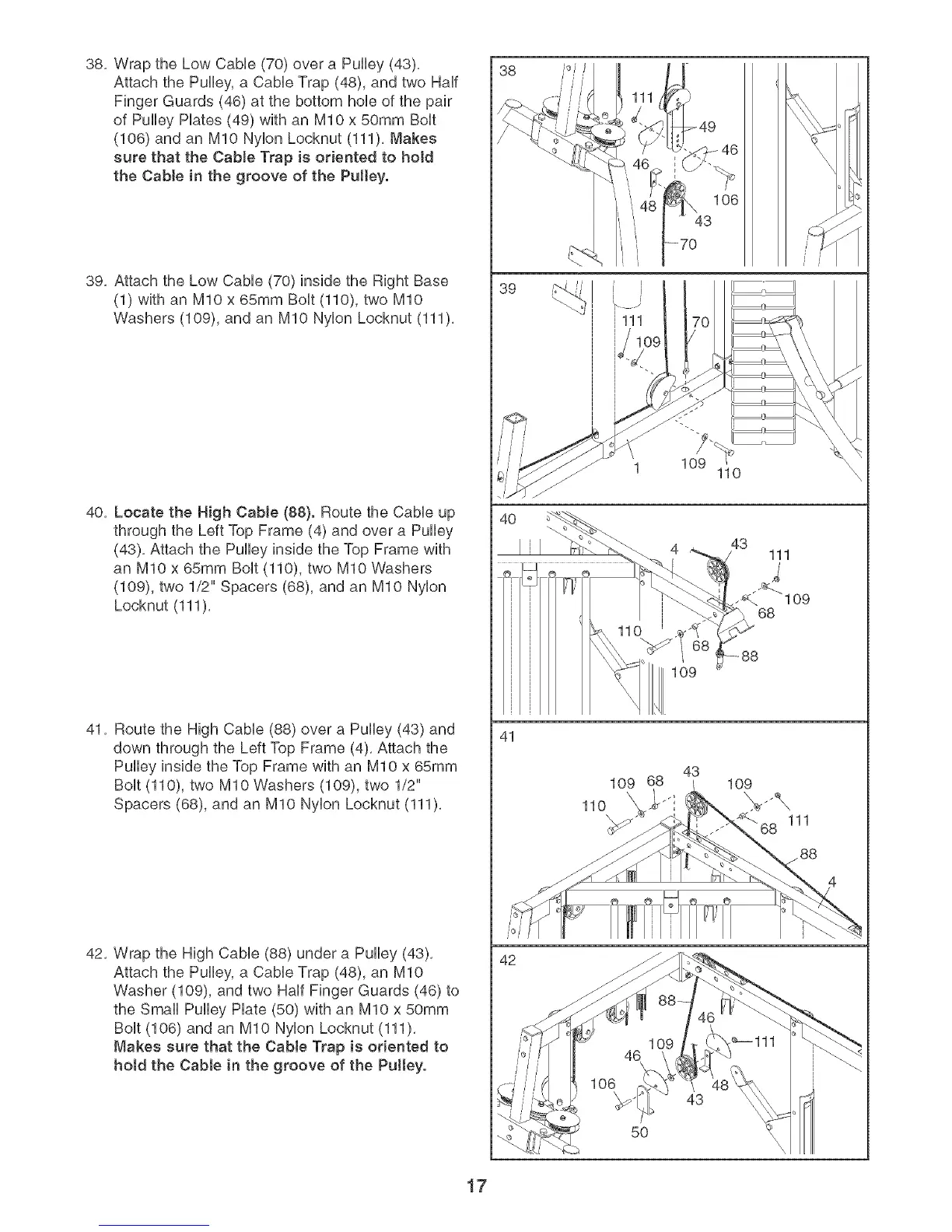

38, Wrap the Low CaMe (70) over a Pulley (43),
Attach the Pulley, a CaMe Trap (48), and two HaUl
Finger Guards (46) at the bottom hoUeof the pair
of Pulley Hates (49) with an MIO x 50mm BoUt
(106) and an MIO NyUonLocknut (111), Makes
sure that the CabJe Trap is oriented to hold
the Cable in the groove of the Pulley.
39, Attach the Low CaMe (70) inside the Right Base
(1) with an MIO x 65mm BoUt(110), two MIO
Washers (109), and an MIO NyUon Locknut (111),
40, Locate the High Cable (88}. Route the CaMe up
through the Left Top Frame (4) and over a Pulley
(43), Attach the Pulley inside the Top Frame with
an MIO x 65mm BoUt(110), two MIO Washers
(10% two 1/2" Spacers (68), and an MIO NyUon
Locknut (111),
41, Route the High CaMe (88) over a Pulley (43) and
down through the Left Top Frame (4), Attach the
Pulley inside the Top Frame with an MIO x 65mm
BoUt(110), two MIO Washers (109), two 1/2"
Spacers (68), and an MIO NyUon Locknut (111),
42, Wrap the High CaMe (88) under a Pulley (43),
Attach the Pulley, a CaMe Trap (48), an MIO
Washer (10% and two HaUlFinger Guards (46) to
the Small Pulley Plate (50) with an MIO x 50mm
Bolt (106) and an MIO Nylon Locknut (111),
Makes sure that the CabJe Trap is oriented to
hotd the Cabte in the groove of the Pulley.
38
39
4O
41
42
111 o
49
1 110
110
109
43
111
43
109 109
110 \
\
43
5O
17
