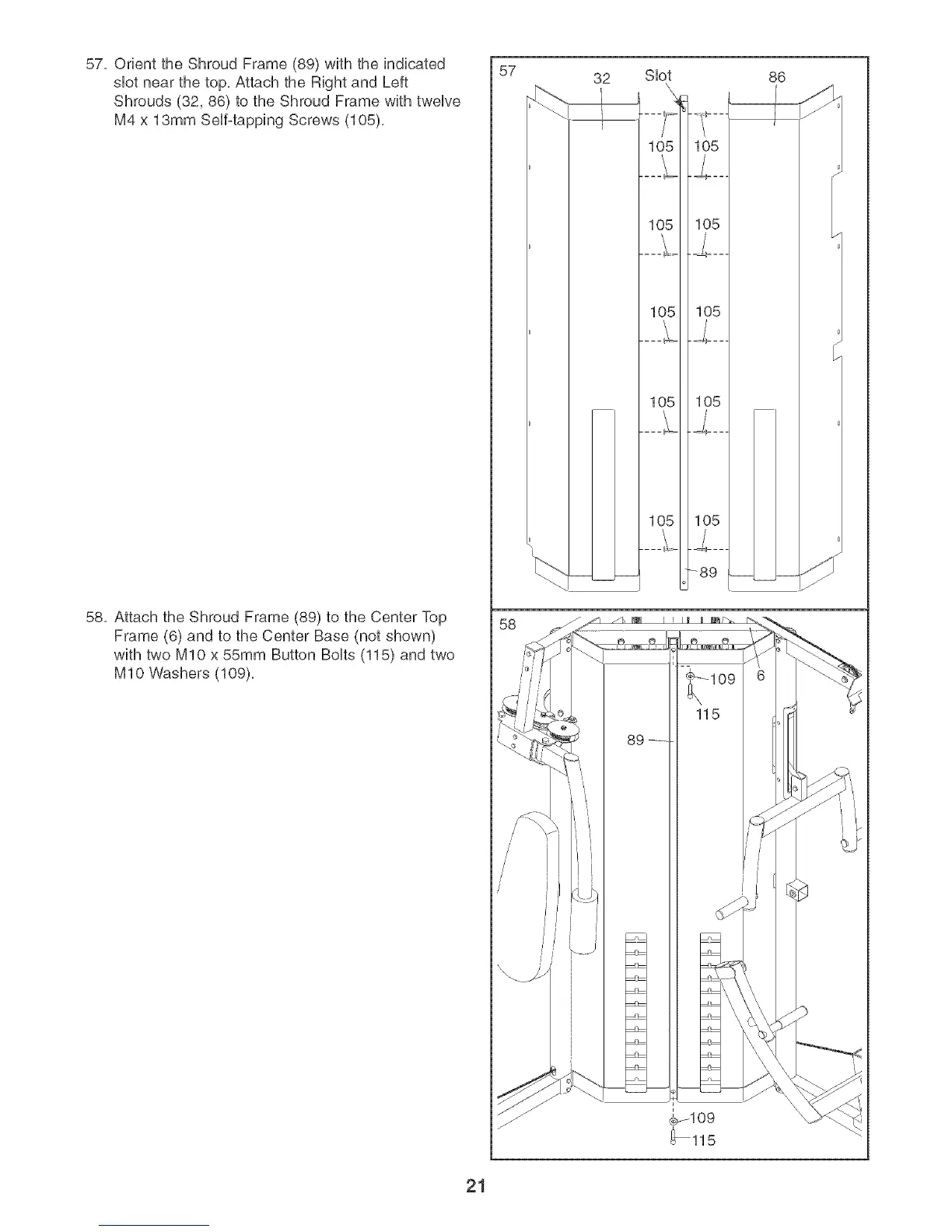

57, Orient the Shroud Frame (89) with the indicated
sUotnear the top, Attach the Right and Left
Shrouds (32, 86) to the Shroud Frame with tweUve
M4 x 13mm SeUfotappingScrews (108),
58, Attach the Shroud Frame (89) to the Center Top
Frame (6) and to the Center Base (not shown)
with two MIO x 55mm Button Bolts (115) and two
M10 Washers (109),
57
32
Slot 86
21
