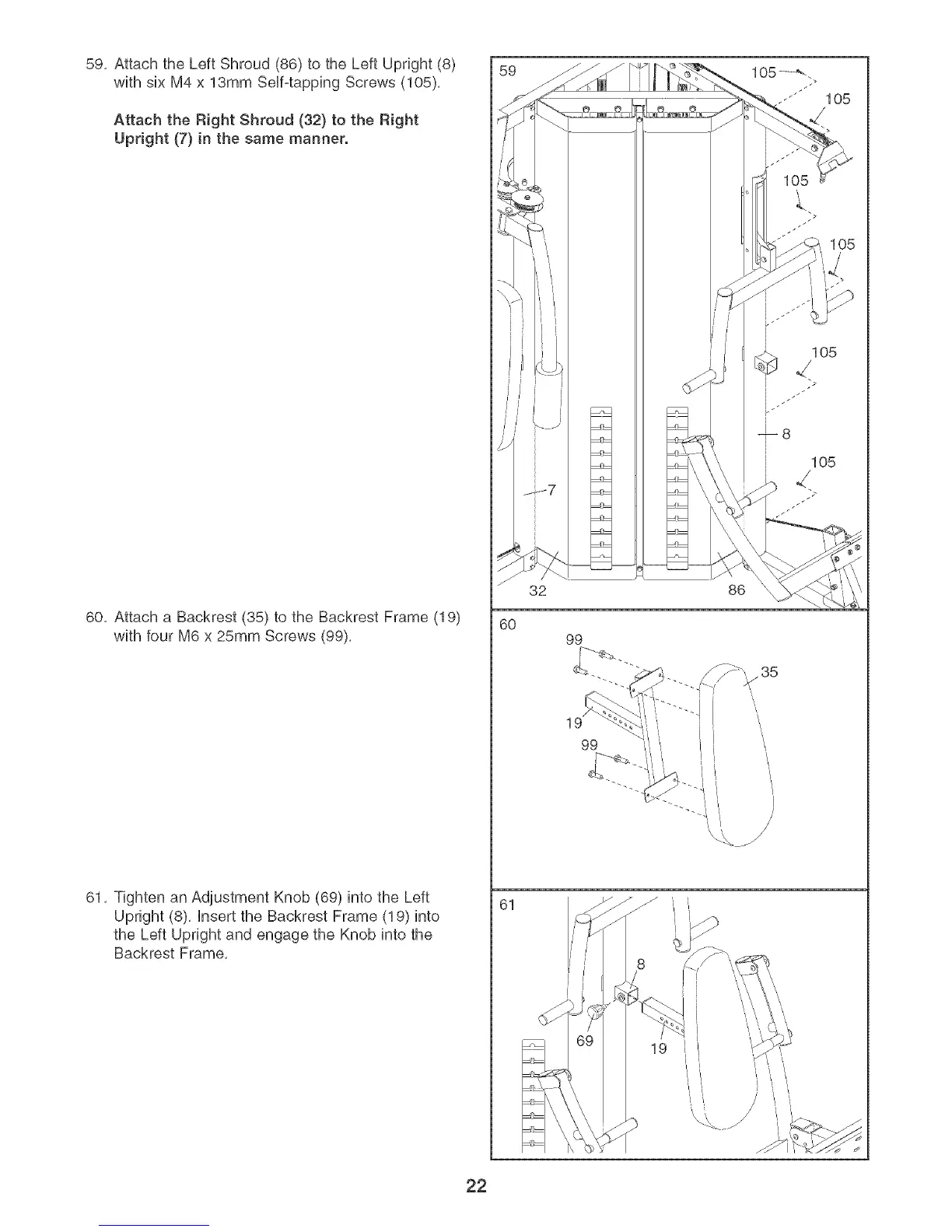

59, Attach the Left Shroud (86) to the Left Upright (8)
with six M4 x 13mm Selfotapping Screws (105),
Attach the Right Shroud (32) to the Right
Upright (7) in the same manner.
60, Attach a Backrest (35) to the Backrest Frame (19)
with four M6 x 25mm Screws (99),
61, qqghten an Adjustment Knob (69) into the Left
Upright (8), insert the Backrest Frame (19) into
the Left Upright and engage the Knob into the
Backrest Frame,
59
6O
61
32
86
99
19
99
i
1O5
