V1.1 PROCUT45 PLASMA CUTTER 8611303
Visit www.princessauto.com for more information 21

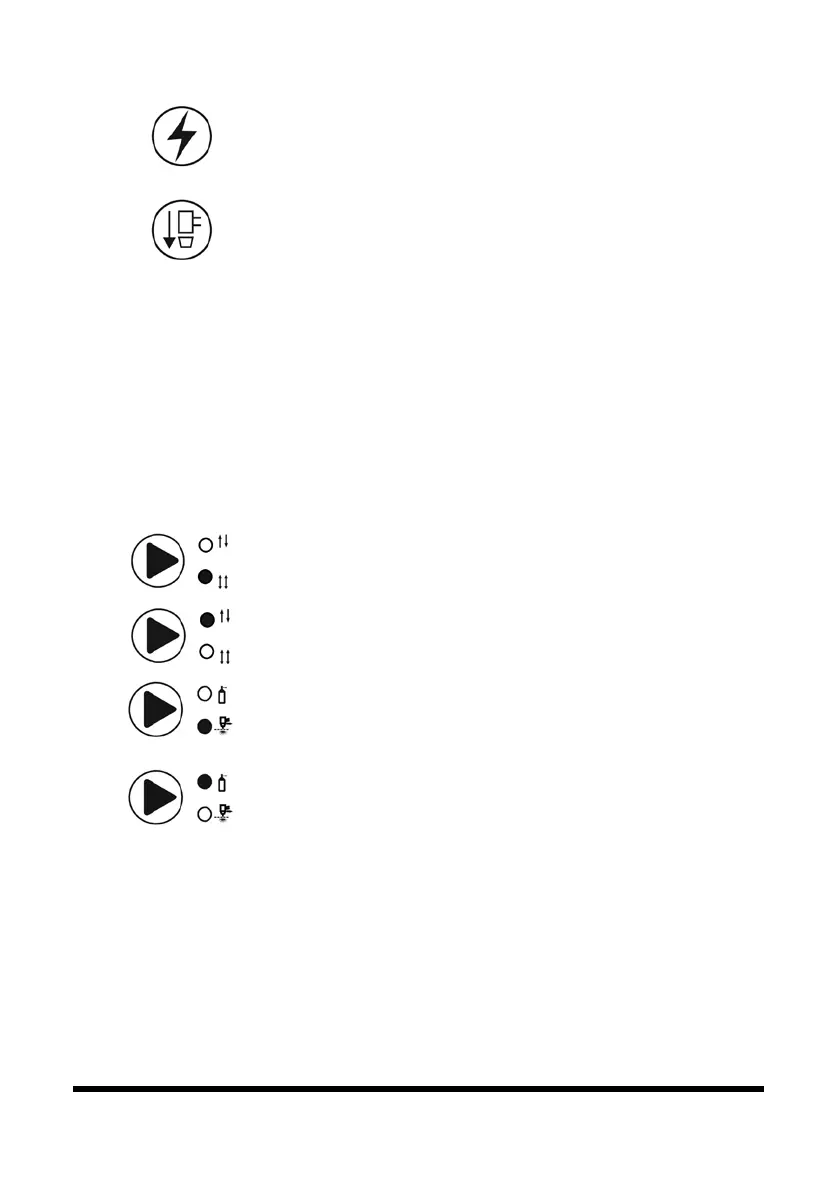

B Power Indicator - It illuminates when the
machine is powered on and flickers after the
arc is successfully ignited.
C Torch Protection Indicator - It illuminates when
the consumable parts of the machine are not
well installed or the torch head is shorted. The
machine will not work until the problem is fixed.
D Air Pressure Gauge.
E Ground Connector – Connect the ground cable
to the port and connect the ground clamp to the
workpiece. The port is electrical positive (+).
F Connector for Torch – Connect the plasma torch
cable to the port. This connection is electrical
negative (-).
G 2T Indicator - It illuminates when 2T status
is active.
4T Indicator - It illuminates when 4T status
is active.
H Gas-Check Indicator - It illuminates when the
gas-check function is selected. The machine
cannot cut when this function is on.
Normal cutting mode, the machine can cut
when this indicator illuminates.
I Amperage control dial.
J Primary power input cable.
K ON/OFF switch
L Air Inlet – Connection for air hose from a
compressor or compressed gas cylinder. Install
a 1/4 in. NPT connector (not included) to make
the connection easier.
