pro.point PROCUT45 - Parts List

V1.1 PROCUT45 PLASMA CUTTER 8611303
Visit www.princessauto.com for more information 37

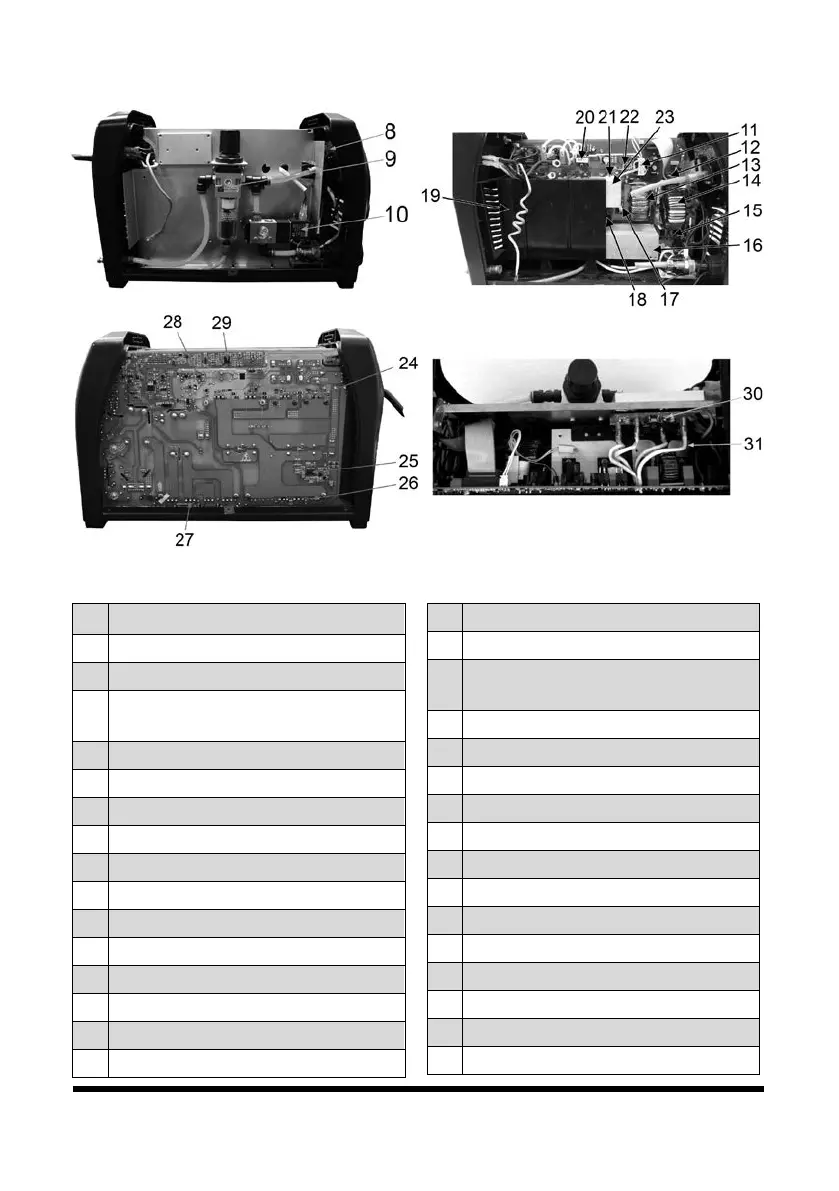

PARTS LIST
# DESCRIPTION
1
Gas Pressure Meter
2
KDP Female Socket
3
Plasma Female Socket And
Wire
4
Knob, Amperage
5
Power Switch
6
Power Supply Cord
7
Gas Nipple
8
Control PCB
9
Reducing Valve
10
Solenoid Valve
11
Switching Power Transformer
12
Relay
13
Main Transformer
14
Electric Reactor
15
Hall Sensor
16
Cooler 3
17
Current Transformer
18
Aluminum Electrolytic
Capacitor
19
Fan
20
Driver Transformer
21
Thermal Switch
22
MOSFET Transistor
23
Cooler 2
24
IGBT
25
SMT Chip
26
Fast Recovery Diode
27
Rectifier Tube
28
SMT Chip
29
SMT Chip
30
Rectifier Bridge
31
Cooler 1
