Pro Spot i5 - About Your Welder

All Info Copyright © Pro Spot International Inc.

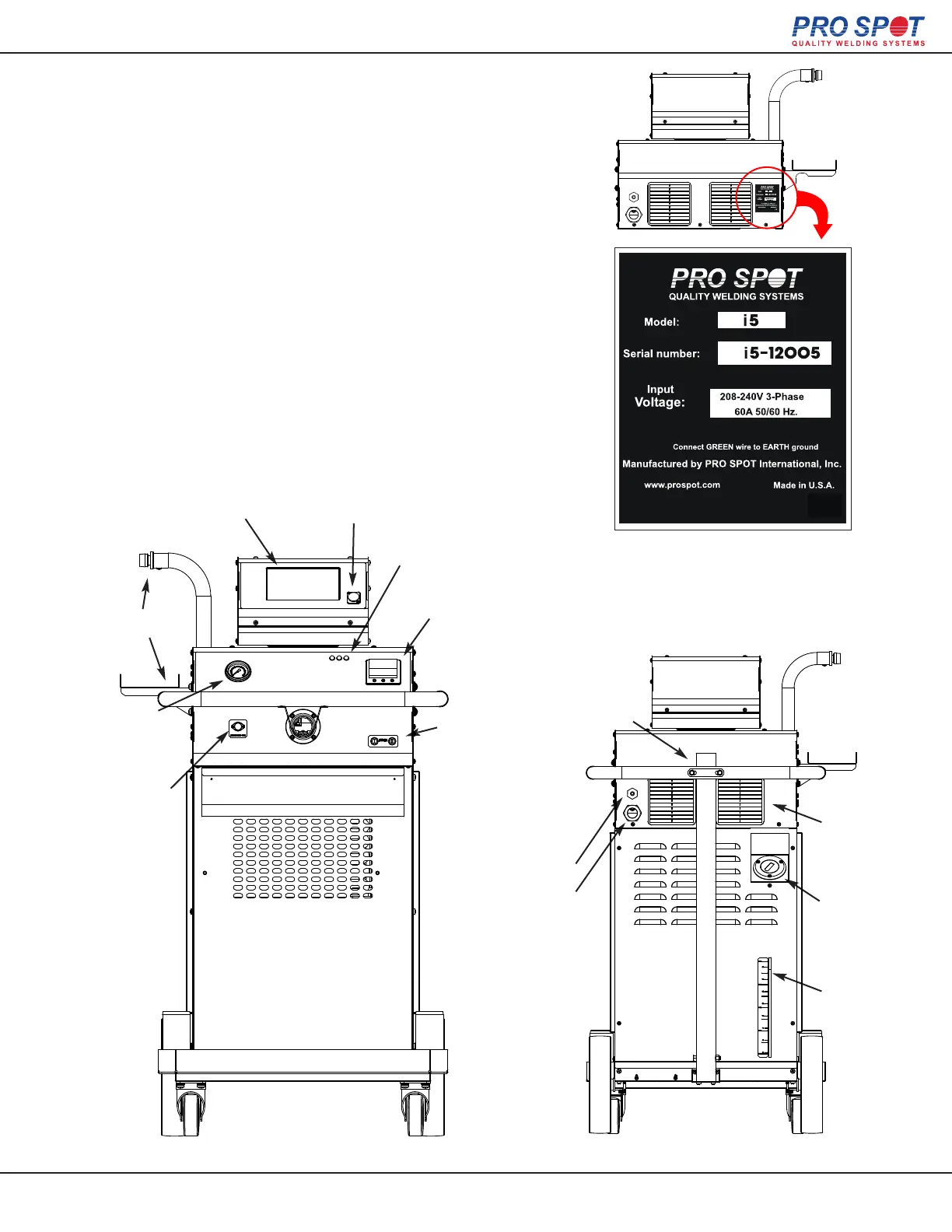

The name plate is at the rear of the welder unit.
The required voltage is indicated on the label.
Welding output is rated at 15V.
Page 11
4.2 About your welder
i5
4.2.1 Welder Overview & Technical Specifications
The welder is supplied with one of the following voltage and frequency
combinations:
Input voltage: 3 phase
208-240V 50/60 Hz.
400-420V 50/60 Hz.
480V 50/60 Hz.
The actual voltage and frequency is stated on the rear panel name plate.
Open circuit output voltage 20v max. E.M.C. classification is C1SPR 11.
Welding amperage: 14,000Amp max (3-phase)
Cable length: Input 30’ (10m) weld cable 16’ (5m)
Electrode Pressure: > 1050 lb (480 daN)
Cooling system: Radiator / pump active loop cooled
Micro processor: i5 Upgradeable Software Platform
Shipping Weight (standard): 314 lb (142 kg)
Weld Head Weight: 26 lb (12 kg)
to the weld caps.
Cooling Fan
Coolant Tank
Cap
Coolant Level
Indicator
Air Hose Input
Bracket for
Overhead Boom
Power Cord
Figure 4.2 i5-Back View
Display Screen USB Drive Port
Input Voltage Phase
Indicator LED Lights
should illuminate when
Power switch on front
panel is "ON" (3 lights
for 3 phase)
Figure 4.1 i5-Front View
Two Sided Gun Holder
Air Pressure
Gauge
Gun Trigger Input for
Single Sided Adapter
Power Switch
Fuses
13
14,500Amp
