Figure 5.2 i5 Extension Arms
The Pro Spot i5 comes with a variety of extension arms to accomodate most
welding job situations.
Please refer to fig. 5.3 for details on what welding electrodes to use with each
extension arm.
NOTE: Extension arms marked “optional” are available from your local
distributor or online at www.prospot.com
5.2.1 Switching to extension arms
5.2 Extension Arms
i5
REMARQUE: bras d'extension portant la mention «facultatif» sont
disponibles à partir de votre Distributeur régional ou en ligne à
www.prospot.com
PSW-52
Wheelhouse Arm
PSW-305
508mm Extension Arm
PSW-302 C-Arm

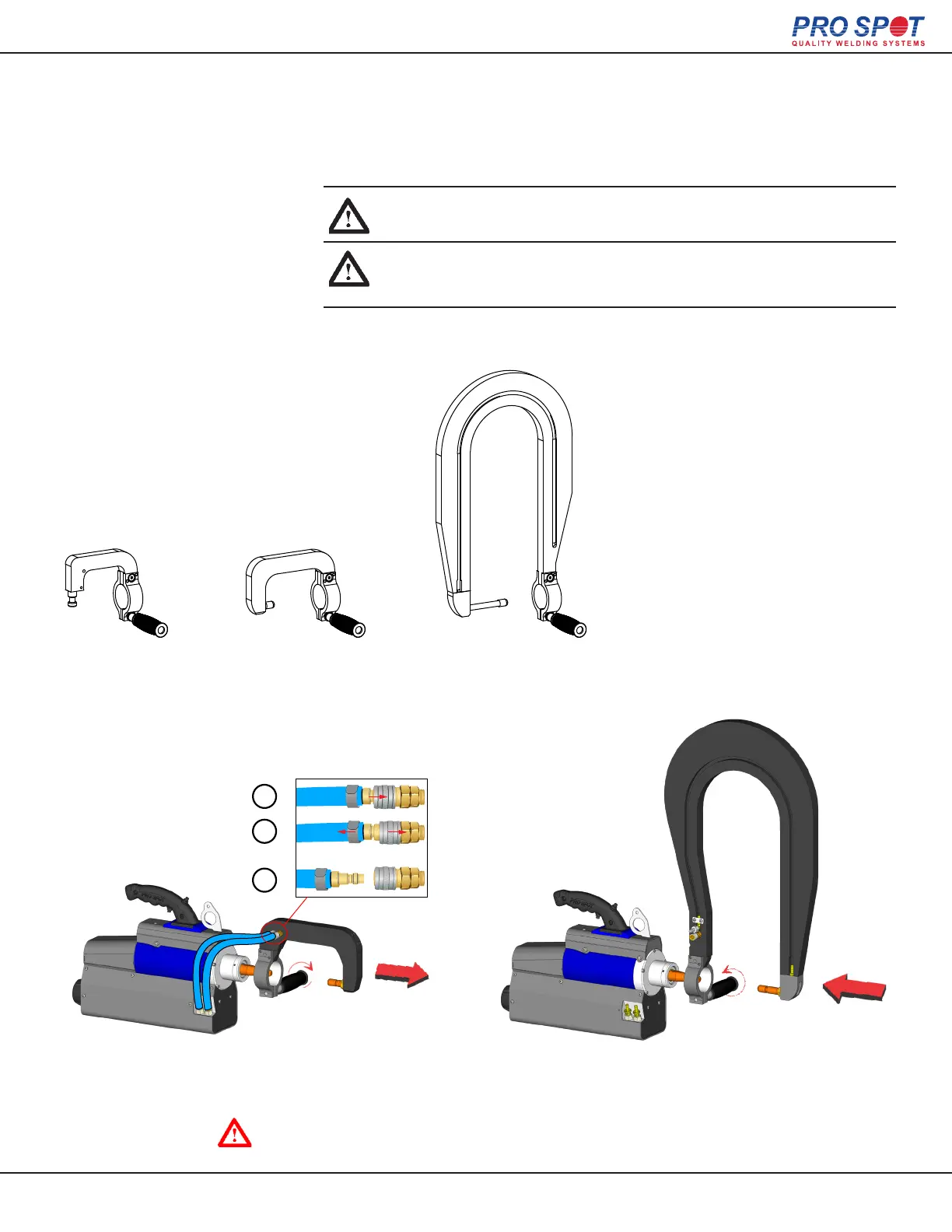

Make sure to properly secure all water hoses before welding.
Turn off the welder before disconnecting water lines.
Turn off the welder’s power,Loosen the handle,
and unclip water hoses and pull off the C-arm...
Now, insert the extension arm, insert water hoses
and tighten the handle.
1
2
3
