Pro Spot i5 - Electrode Alignment

5 - Double-Sided Welding
5.3 PS-500 Electrode Alignment
Page 20
All Info Copyright © Pro Spot International Inc.
IMPORTANT! Always maintain proper electrode alignment. Not doing
so may result in weak, substandard welds!

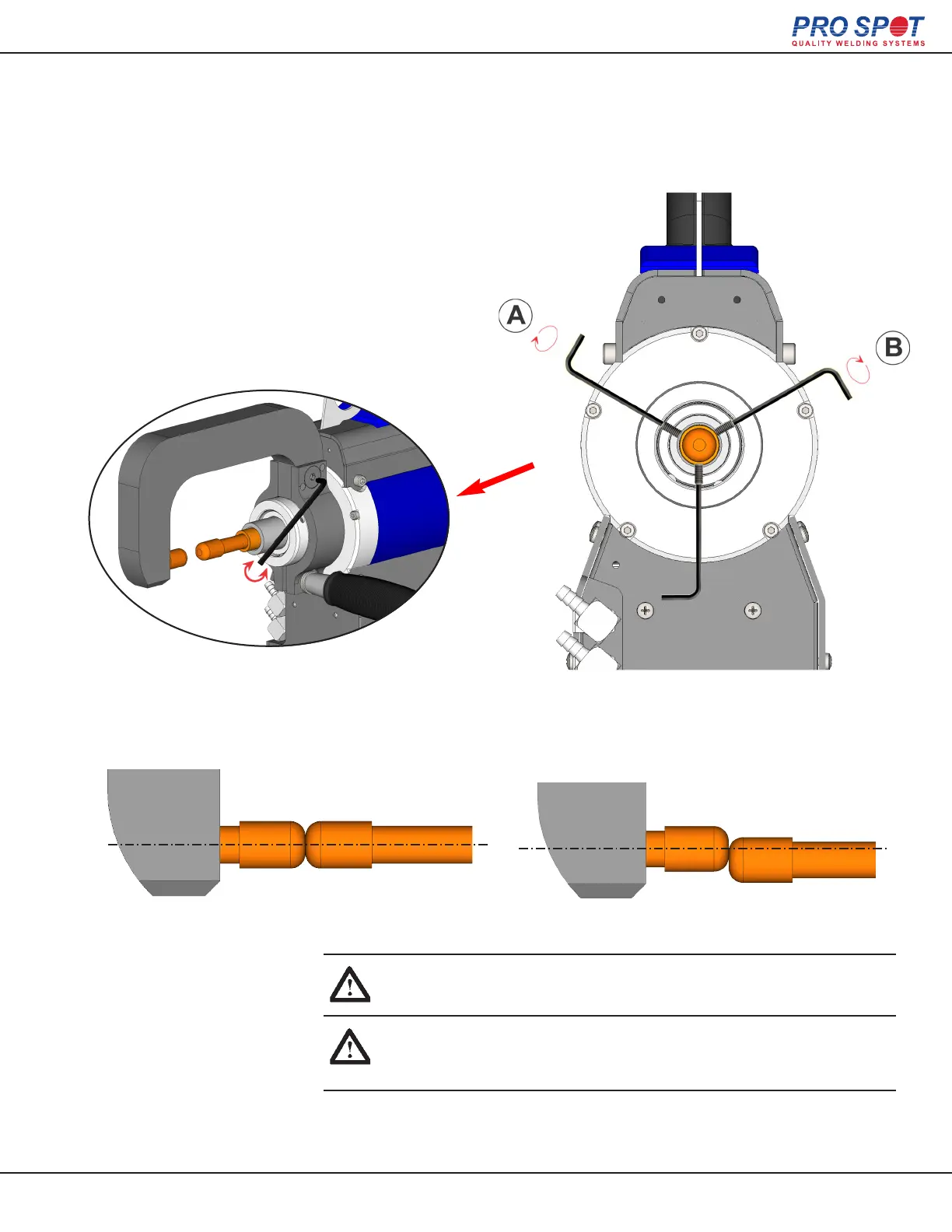

Figure 5.5 Electrode Alignment
Use the set screws (A, B, C) to align the electrodes. Ex: to move electrode down,
loosen screw (C) and tighten screws (A and B).
CORRECT
WRONG
i5
IMPORTANT! Toujours maintenir l'alignement des électrodes appro-
priées. Ne pas le faire peut conduire aux soudures faibles de qualité
inférieure!
