EN-7
UNIT CONTROLS
T1 - Centralized Female Connector for the
connection of the torch for Aluminum welding, of
Push-Pull, Spool Gun and Anolog/Digital Remote
Control Torches.
T2 - Centralized Female Connector for the
connection of the torch for Steel and CrNI welding.
T3 - Centralized Female Connector for the
connection of the torch for Silicon Bronze welding.
Positive Current Socket (+)
• for the connection of the earth cable on TIG
welding
• for the connection of the welding cable or
earth cable according to the type of electrode
in MMA welding
Negative Current Socket (-)
• for the connection of the earth cable on MIG/
MAG welding
• for the connection of the torch on TIG welding
Torch Gas Connection for TIG welding
Torch Trigger Connection for TIG welding
Mains switch for power ON and OFF
A
B
C
D
E
F

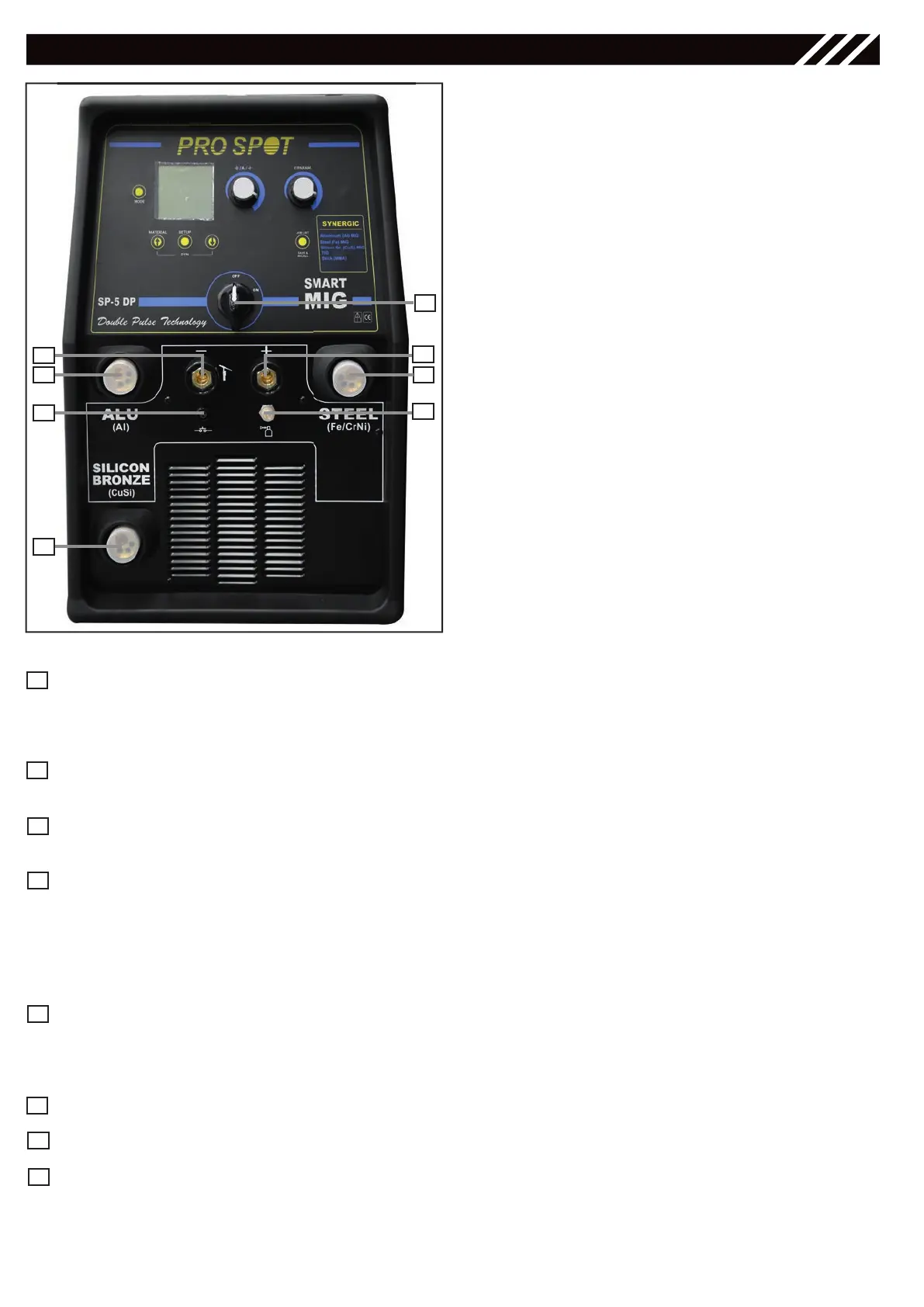

Figure 4 - Front View
BA
H
D
C
E
G
F
G
H
