MIG PULSE WELDING

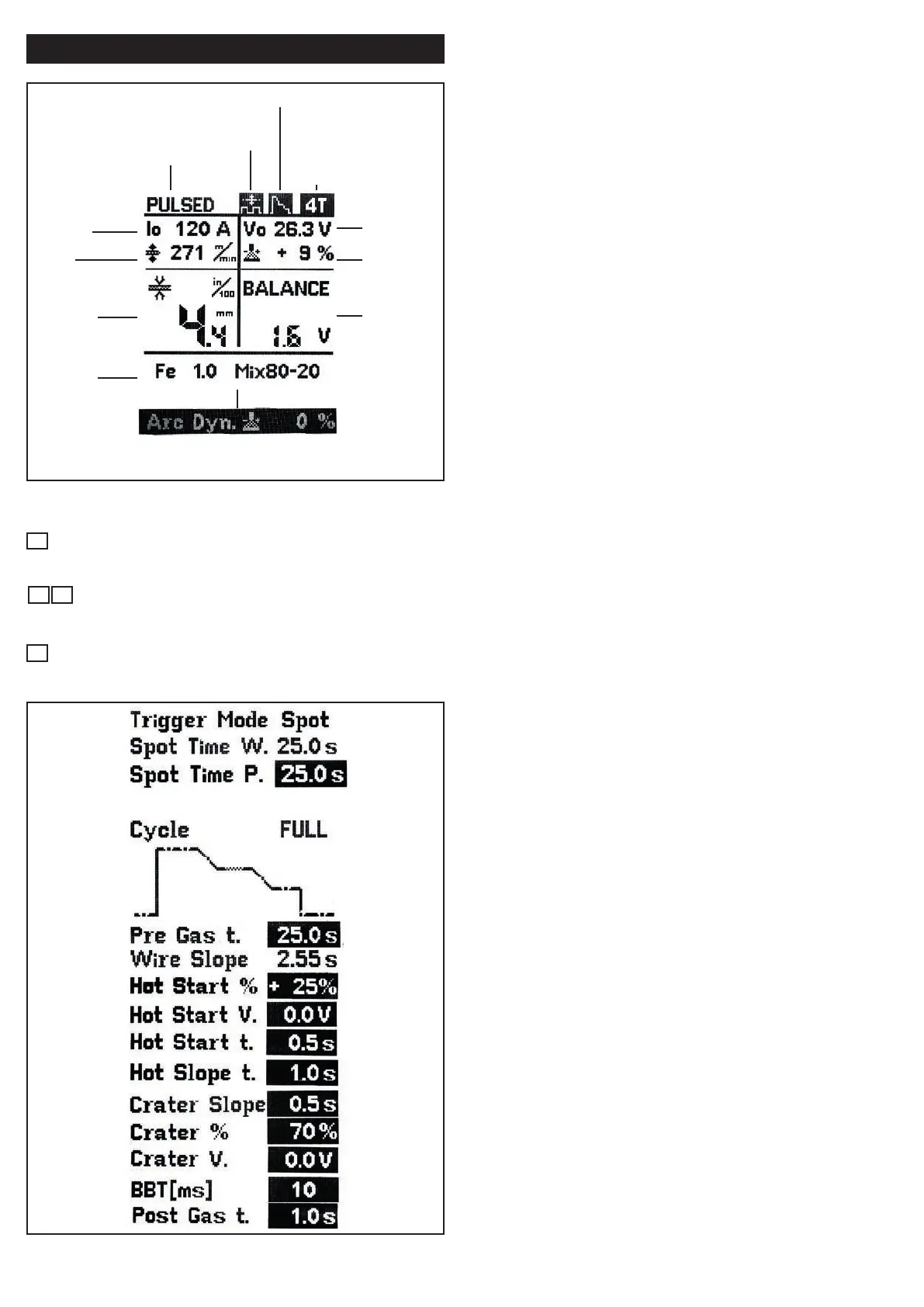

Figure 21 - MIG PULSE Display View
Figure 22 - MIG PULSE Setup View
MIG PULSE
welding
Wire
speed
Voltage
(V)
Synergic
welding
curve
2T
4T
SPOT
PW
Showing the Arc dynamic
when key 6/8 is pressed.
Arc
dynamic
Arc
Voltage
Balance
Welding
current
Material
thickness
Double
Pulse
Full cycle
Setup Key
for entering the parameters’ setup screen.
Navigation Key
for running thru the parameters.
Right Regulation Knob
for changing the parameters.
3
6 8
5
TRIGGER MODE
Selection of the 2Stroke / 4Stroke / Spot Welding
Mode / Pause-Work Mode (P-W)
SPOT TIME W
Adjustable only when Spot Welding Mode or P-W
Mode is set: regulation of the maximum duration of
the Spot Welding Time (0-25 sec)
SPOT TIME P
Adjustable only when P-W Mode is set: regulation of
the maximum duration of pause (0-25 sec)
WIRE SLOPE
Regulation of time needed to reach wire set speed
after arc striking. Adjustable Time (0-2.55sec)
CYCLE
Normal or full
PRE GAS TIME
Regulation of the Gas outflow before the welding
start (0-25 sec.)
HOT START %
Percentage of current increase during hot start phase
HOT START VOLTAGE
Adjust arc voltage compensation during hot start
phase
HOT START TIME
Time of hot start phase
HOT SLOPE TIME
Time required to shift from hot start phase to welding
phase
CRATER SLOPE
Time required to shift from welding phase to crater
fill phase
CRATER %
Percentage of current decrease during crater fill
phase
CRATER VOLTAGE
Adjust arc voltage compensation during crater fill
phase
BBT
Regulation of the lenght of the wire protruding from
the torch at the end of welding (1-250)
POST GAS
Regulation of the gas outflow time at the end of
welding (0 – 25 Sec.)
