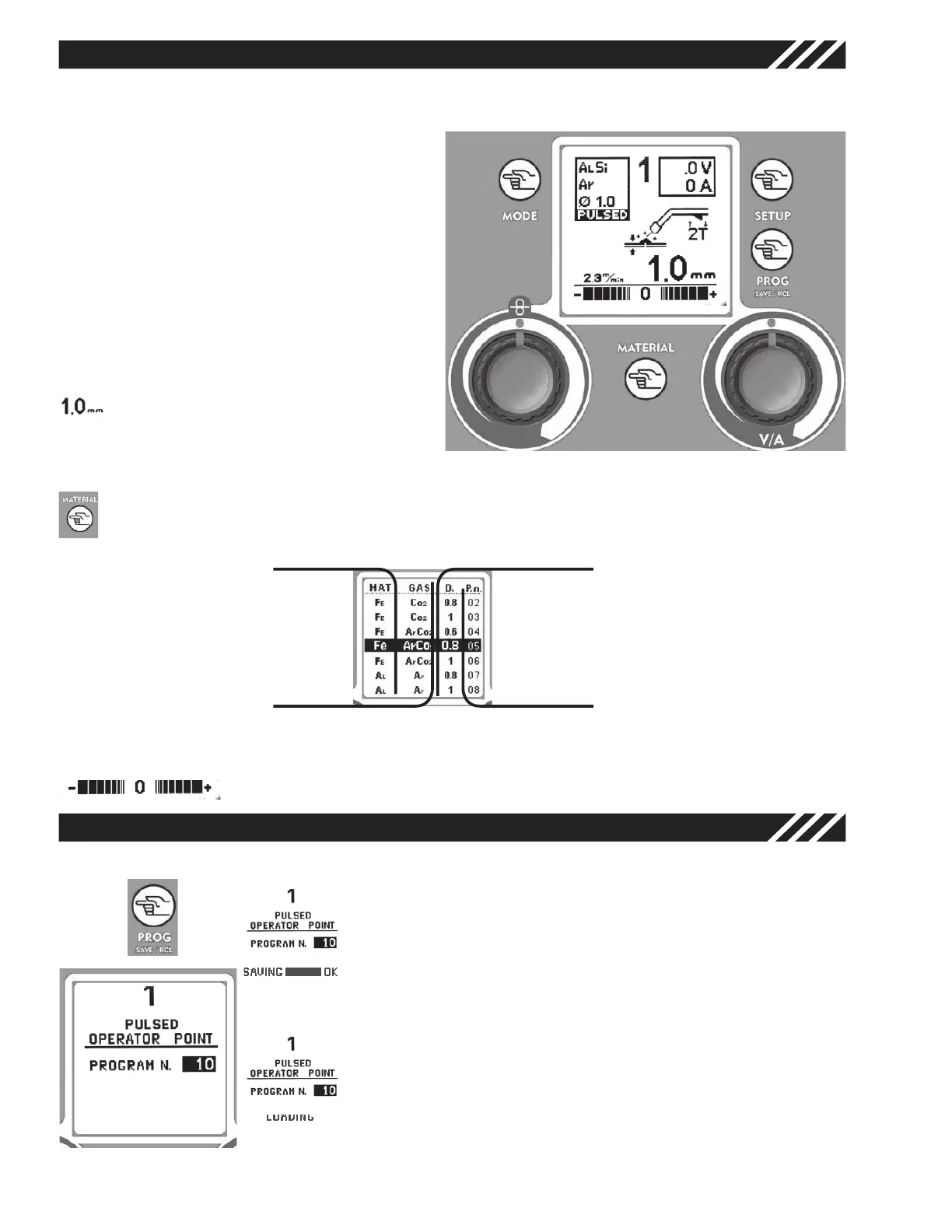

MIG/MAG - SYN ON/PULSED WELDING
With the torch connected, the wire installed and the gas connection made, earth cable to the Negative
output terminal on the front of the unit.
3.2
5
6.2.2
7.3
2
1
Mode Key - 1 -
Press the Mode Key till the MIG/MAG Welding
Screen is viewed on the display.
MIG/MAG Function Setup Key - 3.2 -
Right Regulation Knob -
5 -
Use the Right Regulation Knob to adjust
the thickness of the material to be welded
(welding current) expressed in mm.
Note: thickness is refered to a fillet welding
Material Key - 6.2.2 -
Left Regulation Knob - 7.3 -
Use the Left Regulation Key to balance the wire speed in % (±40%) and increase or
decrease the arc lenght.
Material
GAS
Welding Wire Thickness
Program number
TIG AND MIG/MAG SETUPS SAVE & RECALL
Use the Prog Save & Recall Key to save and recall the parameters
set by the operator (refer to paragraphs 6.0, 6.2, 9.0 and 10.0).
To save the setup proceed as follows:
• Press the PROG Key - 4 -
• Turn the Right Regulation knob - 5 - to choose the program
number to save in.
• To save the program keep the PROG Key pressed, a beep and
a the wording “OK” will confirm the save.
To recall a saved program proceed as follows:
• Press the PROG Key - 4 -
• Turn the Right Regulation knob - 5 - to choose the desired
program number.
• Press the PROG Key - 4 -, the wording “LOADING” will confirm
the program loading.
Use the Mode Key - 1 - to go back to the MIG/MAG main screen.
Prog Save & Recall Key - 4 -
Press the Setup Key - 3.2 - in MIG/MAG Mode to
access the parameters’ setup screen .
Use the Right Regulation Knob
- 5 -
to select
the “Synergy ON” Mode for normal welding or
“PULSED” Mode for pulsed welding.
Use the Mode Key - 1 - to go back to the MIG/
MAG main screen. Refer to paragraph 7 for the
other parameters’ setting.
Use the Material Key to view the Synergic Welding Curves available on the unit.
Turn the Right Regulation Key - 5 - or press the Material Key - 6.2.2 - to choose the desired Synergic
Curve, suitable to the type of wire and to the gas going to be used for welding; to confirm your choice
simply press the Mode Key - 1 - to go back to the main screen.
Once selected a Synergic Curve, Slope, BBT, Inductance, Wire Speed Balance and Material thickness
settings go back to their default values.
Figure 26
Figure 27
Figure 28
