• Unpack the welder.
• Screw the two casters (D) to the machine.
• Insert the axle (A) thru the holes at the rear of the welder and slide a wheel (B) on to each end followed
by the retaining washers (C).
• Assemble the plastic handle (E) using the screws provided (F).
• Follow the indications inside wire spool compartment to correctly define the correspondence betwe-
en torch and Euro connection.
• Plug the torches leads into the Euro sockets on the unit’s front and secure by hand screwing in the
threaded connection.
TORCHES’ LEADS ASSEMBLY (FIG.3)

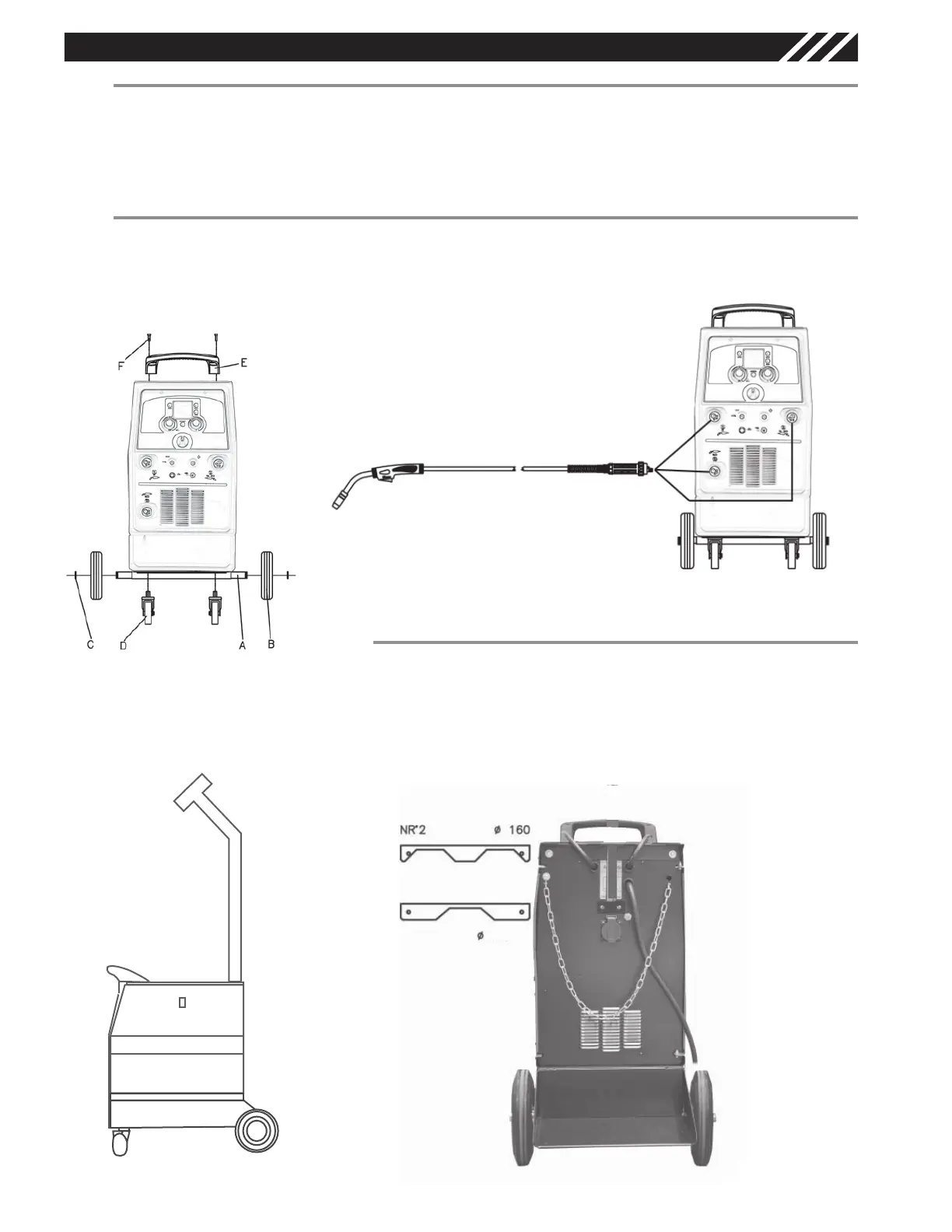

HANDLE AND WHEELS ASSEMBLY (FIG. 2)
ASSEMBLY
GAS BOTTLE SUPPORT BRACKET (FIG.4) AND TORCHES
HOLDING BAR (FIG.5) ASSEMBLY
• The gas bottle support bracket is designed to accept or the Ø
200 gas bottle or two Ø 160 gas bottles at the same time.
• Fix the support bracket in the correct position according to the
gas bottle you are going to install.
• Assemble the torches holding bar following the here below pic-
tures indications.
Figure 4
Figure 5
Figura 3
Figure 2
