HAZARD INTENSITY LEVEL
PEAK 86037220 02/12/07
2-3
The following WARNING LABELS are found on your cleaning unit. These labels point out
important Warnings and Cautions which should be followed at all times. Failure to follow
warnings and cautions could result in fatality, personal injury to yourself and/or others, or
property damage. Follow these instructions carefully! DO NOT remove these labels.
NOTE: If at any time the labels become illegible, promptly replace them.

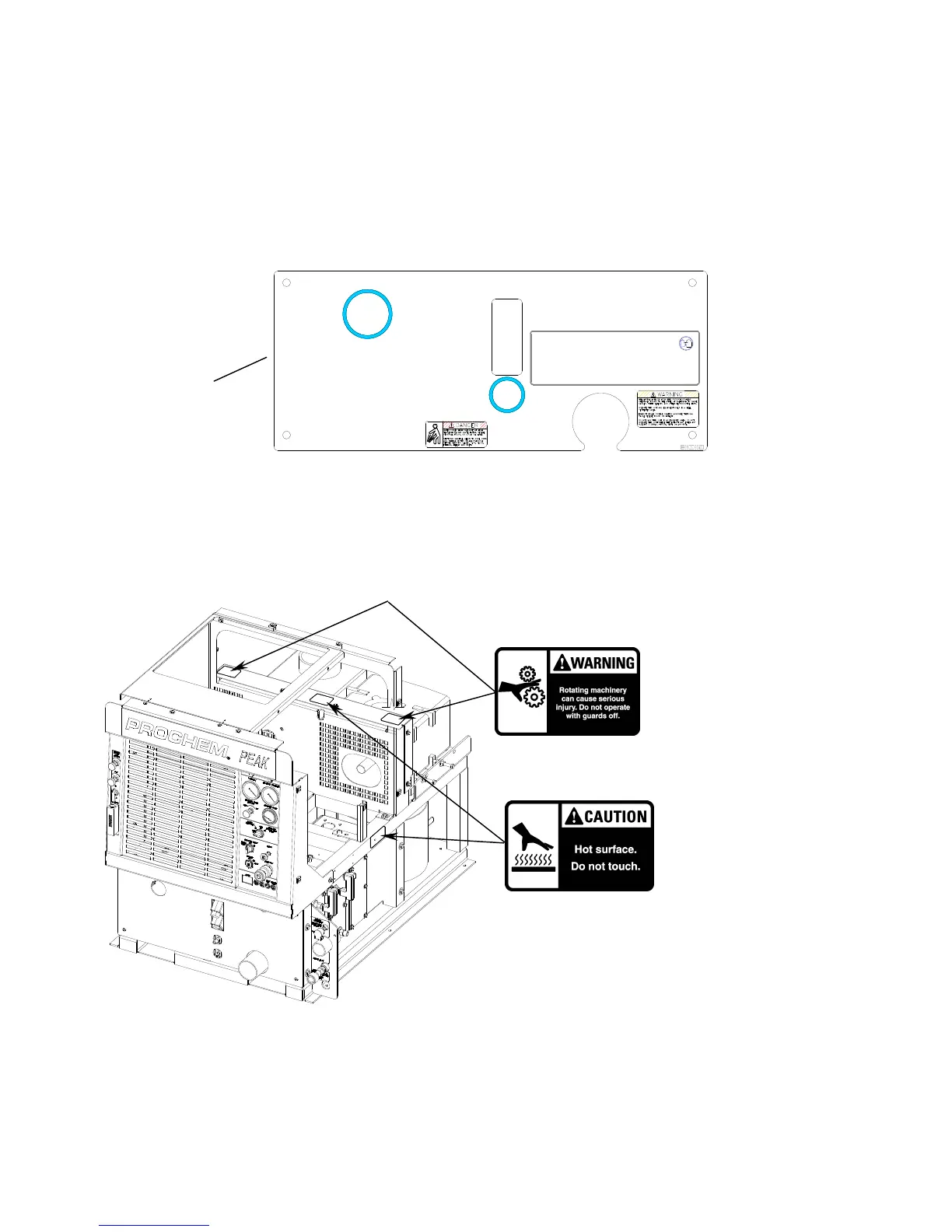

Front panel decal
With warning labels
86179290
PRV NO. 500875
Caution label
86186530
PRV NO. 500770
(2 Warning labels required
(1) Top of belt guard
(1) Top of rear engine panel
Warning label
86186520
PRV NO. 500769
SOLUTION OUTLET
LUBRICATE REGULATOR SEALS
EVERY 50 HOURS.
RECOMMENDED LUBRICANT:
SYNCO SUPER LUBE
SOLUTION PRESSURE
REGULATOR
CONDENSED OPERATING INSTRUCTIONS
1. CONNECT WATER HOSE TO WATER INLET CONNECTION AND TURN ON WATER SUPPLY.
2. CONNECT CLEANING AND VACUUM HOSES TO THE DESIRED CLEANING TOOL AND CONSOLE.
3. PULL OU T ENGINE CH OKE,TURN SOL UTION PUM P TO OVERRID E AND TURN IGNITION KE Y TO START.
4. PUSH IN ENGINE CHOKE AFTER ENGINE HAS STARTED.
5. SET THR OTTLE AT IDLE (PUSH THRO TTLE CABLE IN)
6. INSERT CHEMICAL INLET AND PRIME TUBING IN TO CHEMICAL CONTAINER.
7. TURN CH EMICAL PRIM E VALVE TO P RIME AND ALL OW CHEMICAL TO CIRCULAT E. AFTER A LL AIR BUBBL ES HAVE BEE N REMOVED FR OM THE CHEM ICAL
TUBING, TU RN THE CHEMI CAL PRIME VA LVE TO THE O N POSITION A ND OPEN THE CHEMICAL FL OW VALVE. WIT H THE TOOL A TTACHED AND THE CHEMICAL
FLOW VALVE OPEN, SET THE DESIRED CHEMICAL FL OW RATE WHILE OBSERVING T HE FLOW METER INDICATOR.
8. FOR QUIC K HEAT-UP, REFER TO OP ERATING INS TRUCTIONS.
1. CLOSE CHEMICAL METERING VALVE.
2. ALLOW T HE UNIT TO RU N FOR 2 MINU TES WITH THE VACUUM HOS E DISCONNEC TED TO REMOV E MOISTUR E AND SPRAY WD40 (OR EQ UIVALENT) INT O
THE VACUUM LUBRICATION CUP. THIS WILL PREVENT CORROSION DUE TO MOISTURE.
3. SET ENGINE THROTTLE AT IDLE POSITION AND OPEN TEMP CONTROL VALVE, ALLOWING THE WATER TEMPERATURE TO COOL DOWN.
4. TURN OFF IGNITION SWITCH.
5. DISCONNECT ALL HOSES AND TOOLS.
6. DRAIN WASTE TANK INTO AN APPROVED SOURCE AND RINSE WITH CLEAN WATER.
SOLUTION SCREEN
CHEMICAL
CHECK VALVE
SHUTDOWN AND DAILY MAINTENANCE
STARTING
