INSTALLATION
PERFORMER 980060 07/05/03
3-6
FROM
CONNECTION
ON CONSOLE
+
-
BATTERY
WASTE
TANK

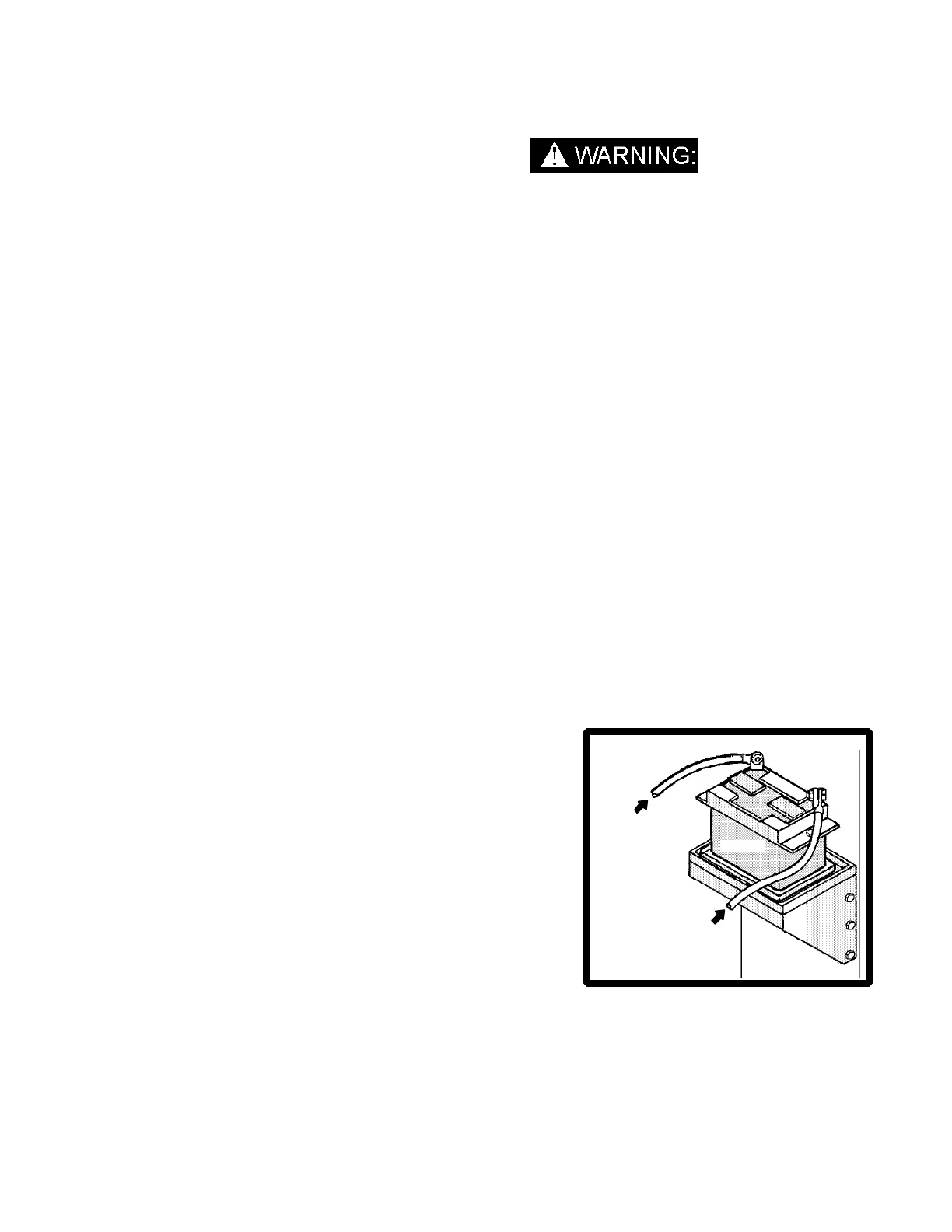

BATTERY HOOK-UP
WASTE TANK TO CONSOLE
CONNECTION
NOTE: Before connecting any hoses to the waste
tanks, make certain the hose clamps are on each
hose.
1. Connect the section of 2-7/8" I.D. internal vac
hose to the 2-7/8” dia. vac outlet tube on the
waste tank and to the vacuum pump relief valve
on the console. It may be necessary to cut this
hose to fit. Tighten the hose clamps. NOTE:
On the PERFORMER 405, the hose and tubing
will be 3-1/2” diameter.
2. Connect the 2” I.D. waste removal hose to the 2”
dia. tube at the bottom of the waste tank.
Tighten the hose clamps.
3. Connect the 5/16" I.D. water box hose to the
barb fitting (pointed downward) on the waste
tank, which is mounted on the outside of the
waste tank. Tighten the hose clamps.
4. Connect the console engine shut-off cord to the
waste tank level sensor cord.
5. Connect the 3/16 stainless steel hose from the
bypass valve to the connector on the waste
tank.
BATTERY CONNECTION
Dangerous Acid, Explosive Gases! Batteries
contain sulfuric acid. To prevent acid burns,
avoid contact with skin, eyes, and clothing.
Batteries produce explosive hydrogen gas while
being charged. To prevent a fire or explosion,
charge batteries only in well-ventilated areas.
Keep sparks, open flames, and other sources of
ignition away from the battery at all times. Keep
batteries out of the reach of children. Remove all
jewelry when servicing batteries.
Before disconnecting the negative (-) ground
cable, make sure all switches are OFF. If ON, a
spark will occur at the ground cable terminal
which could cause an explosion if hydrogen gas
or gasoline vapors are present. When
disconnecting the battery, ALWAYS disconnect
the negative (-) terminal FIRST.
1. Attach the red positive (+) battery cable from the
console starter solenoid to the positive (+)
terminal on the battery and tighten the holding
nut.
2. Next, attach the black negative (-) battery cable
from the console ground to the negative (-)
terminal on the battery and tighten the holding
nut.
FIRE EXTINGUISHER
We recommend that a fire extinguisher, preferably
rated for A, B, & C type fires, be installed inside the
vehicle.
